Phaser 6280 Color Laser Printer Service Manual 4-51
General Troubleshooting
Regi Clutch
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-8).
4. Remove the Print Cartridges (page 8-10).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Tray 2 Motor (FULL2) test: Engine Diag > Motor Test > Tray
2 Motor (FULL2).
7. While the PH Motor is running, press the Up Arrow button to find Regi
Clutch. Press the OK button to run the Regi Clutch test.
The Registration Rollers rotate when the Tray 2 Motor (FULL2) and the
Registration Clutch tests are executed.
8. Verify that the Tray 2 Motor is running and the Registration Rollers are
rotating.
9. Press the Cancel button to stop the Regi Clutch test.
10. Press the Down Arrow button to find Tray 2 Motor (FULL2).
11. Press the Cancel button to stop the Tray 2 Motor test.
12. Remove the paper clip from the Interlock Switch.

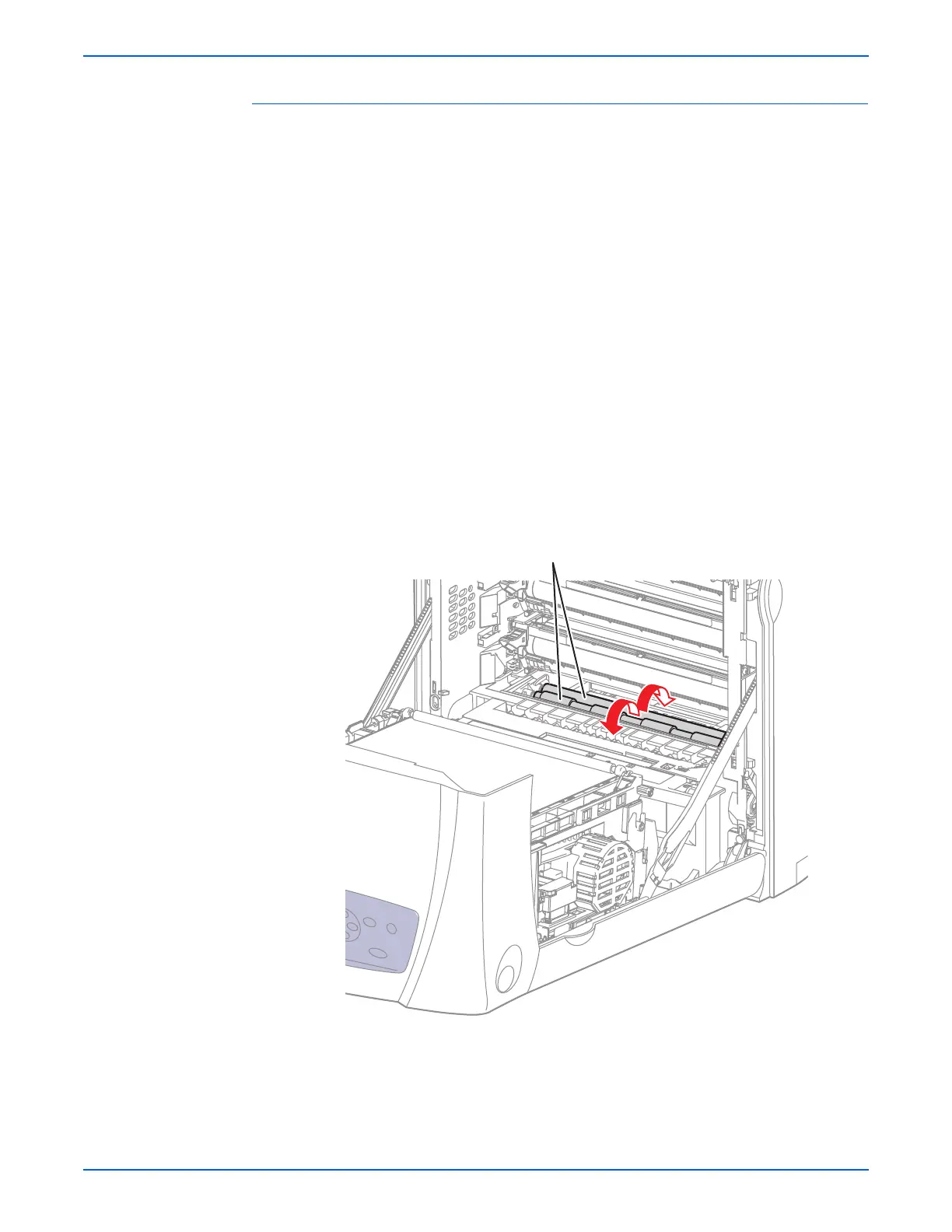

Registration Rollers
s6280-146
To Next Page
