Print-Quality Troubleshooting
Registration
■ Leading Edge: 10.0 mm ± 2.0 mm
■ Side Edge: 8.5 mm ± 2.5 mm

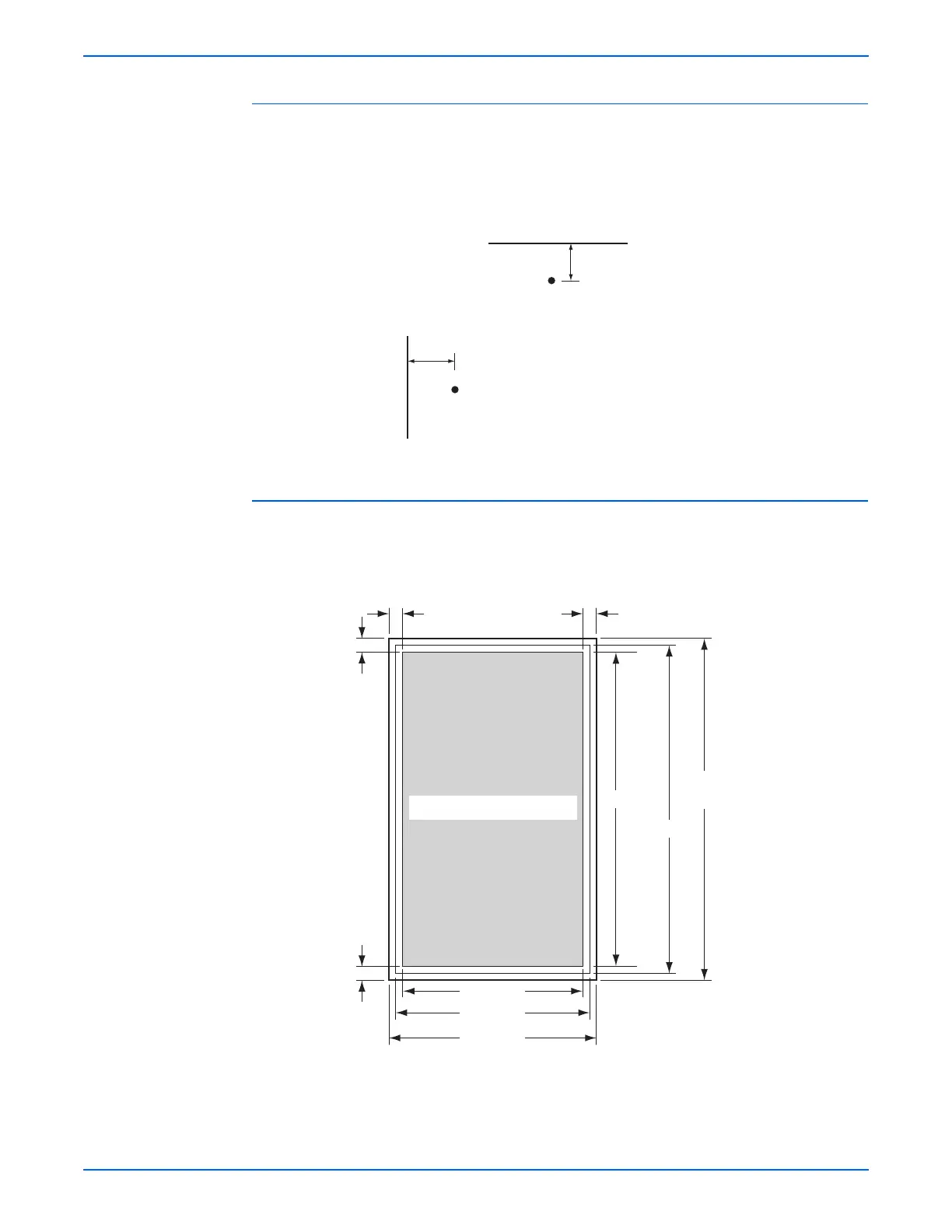

Guaranteed and Maximum Print Areas
■ Maximum Print Area: 210.9 mm x 351.6 mm
■ Guaranteed Print Area: 207.9 mm x 347.6 mm
Registration = Measured Length - Nominal
Lead Edge
Nominal = 10.0 mm
(within ±2 mm)
Nominal = 8.5 mm
(within ±2.5 mm)
Side Edge
B
F
Registration
Guaranteed and Maximum Area
4 mm
4 mm
4 mm
4 mm
355.6 mm
(14 inch)
215.9 mm
(8.5 inch)
351.6 mm
347.6 mm
210.9 mm
Guaranteed printing area
207.9 mm
