Xerox Phaser 6280 Service Manual

8-22 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Note
Be sure not to move the Harness Cover away from the Front Cover
Assembly too far, because the Harness Cover is secured to the Front
Cover Harness Assembly.

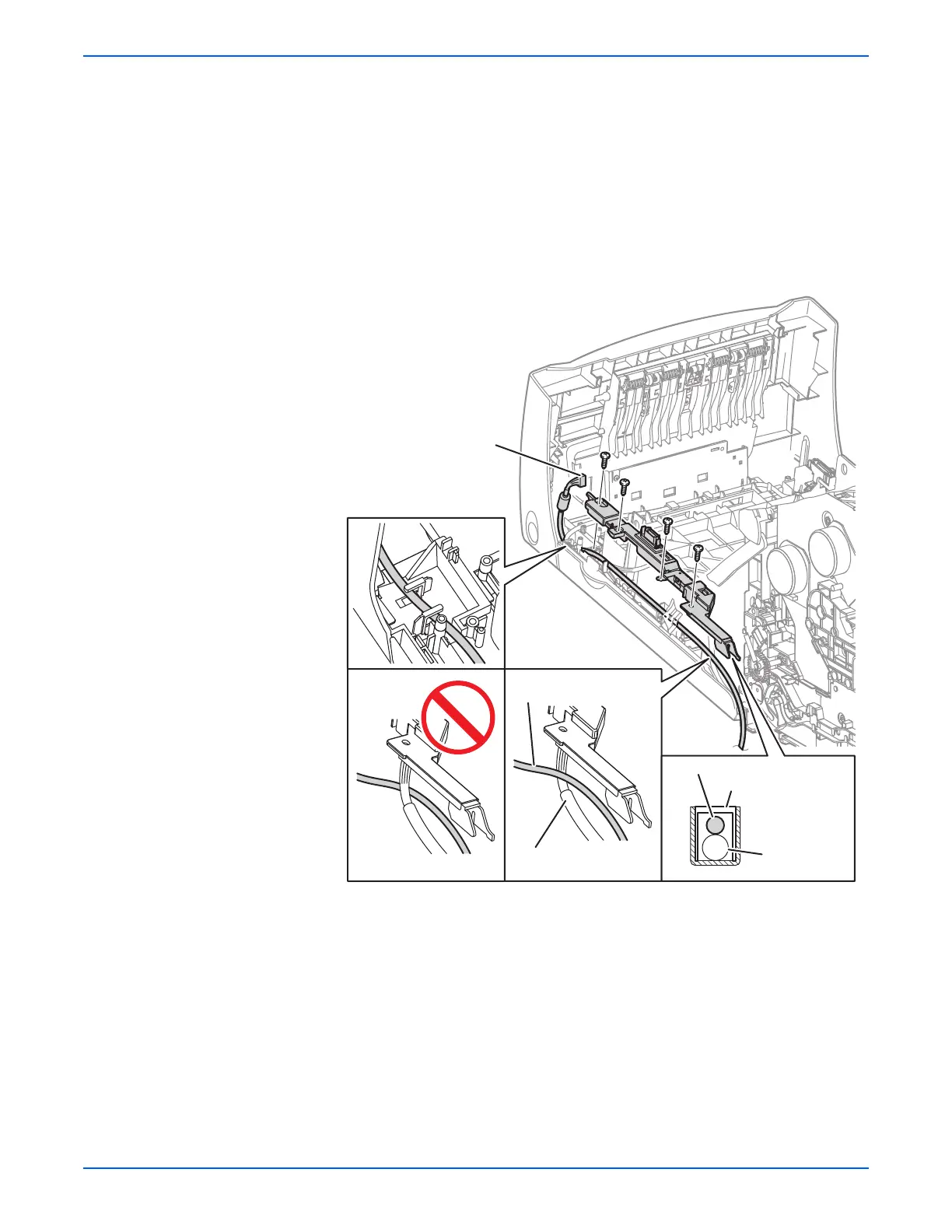

7. Remove 4 screws (10 mm) securing the Harness Cover (PL1.2.5).
8. Remove the Harness Cover from the Front Cover Assembly.
9. Disconnect the wiring harness connector P/J220 from the Control Panel
(PL1.2.16).
10. Remove the Control Panel wiring harness from the Front Cover Assembly.
s6280-185
Control Panel Harness
P/J220
Front Cover Harness
Control Panel Harness
Harness Cover
Front Cover
Harness

Xerox Phaser 6280 Specifications

General

Print Resolution	Up to 600 x 600 x 4 dpi
Processor	400 MHz
Operating System Compatibility	Windows, Mac OS, Linux
Print Technology	Laser
Monthly Duty Cycle	70, 000 pages
Memory	256 MB (standard)
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Legal, Letter
Maximum Paper Size	8.5 x 14 inches
