Xerox Phaser 6280 Service Manual

8-38 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Caution
Ensure to hold the Feeder Assembly while removing the 2 screws to
prevent the Feeder drop to the bottom of the printer.

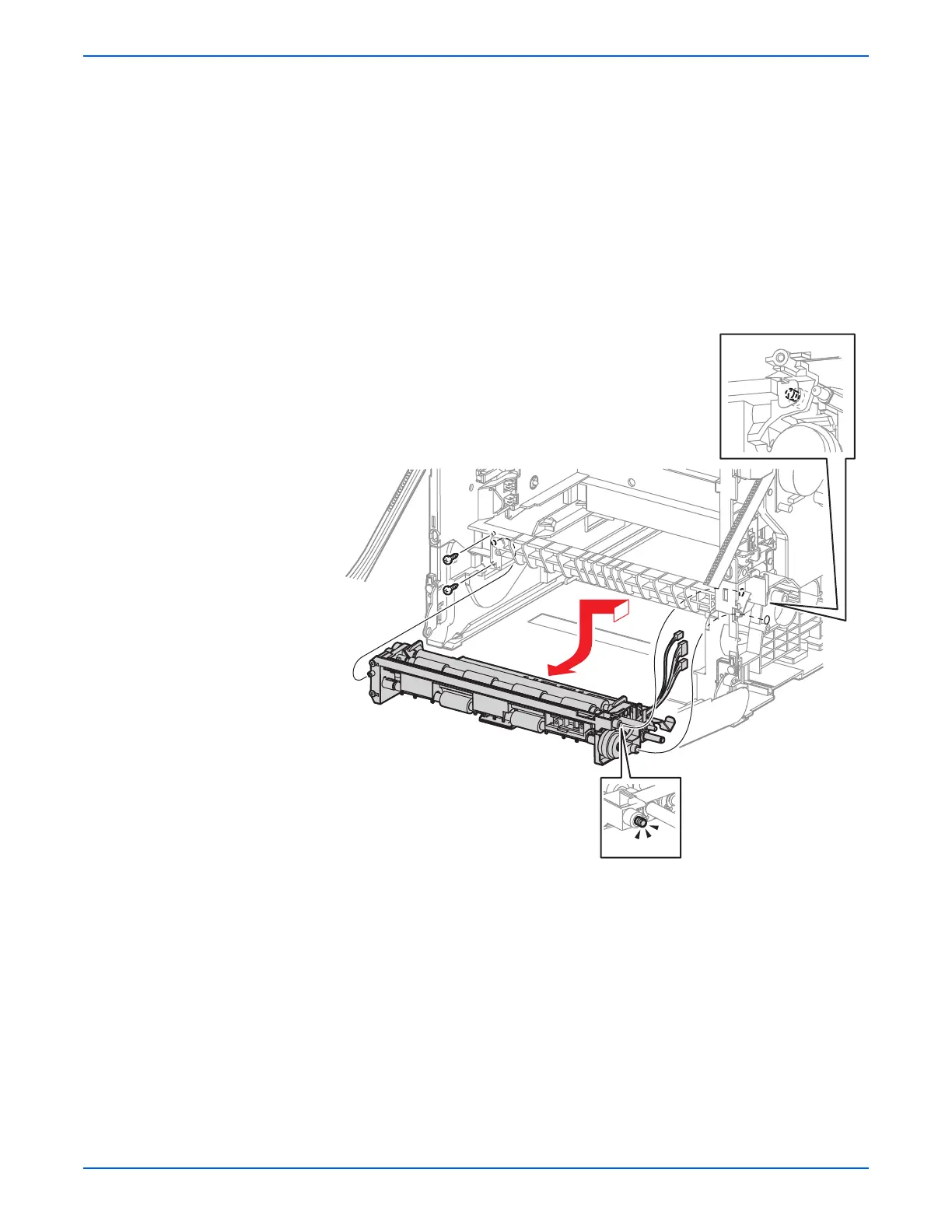

12. Shift the CAM Shaft on the left side to access the screws. Remove 2
screws (10 mm) securing the Feeder.
13. Move the Feeder down and forward to move the notch on the left side of
the Feeder Assembly out of the hole on the printer. Slightly shift the
Feeder Assembly toward the rear left side to remove the notches (1 on
the Earth Spring and 1 on the right side of the Feeder Assembly) out of
the holes on the printer.
14. Pull the Shaft section and the Clutch on the right side of the Feeder
Assembly out of the hole on the printer and remove the Feeder Assembly.
