Phaser 6280 Col
or Laser Printer
Service Manual
8-59
Service Parts Disassembly
10.

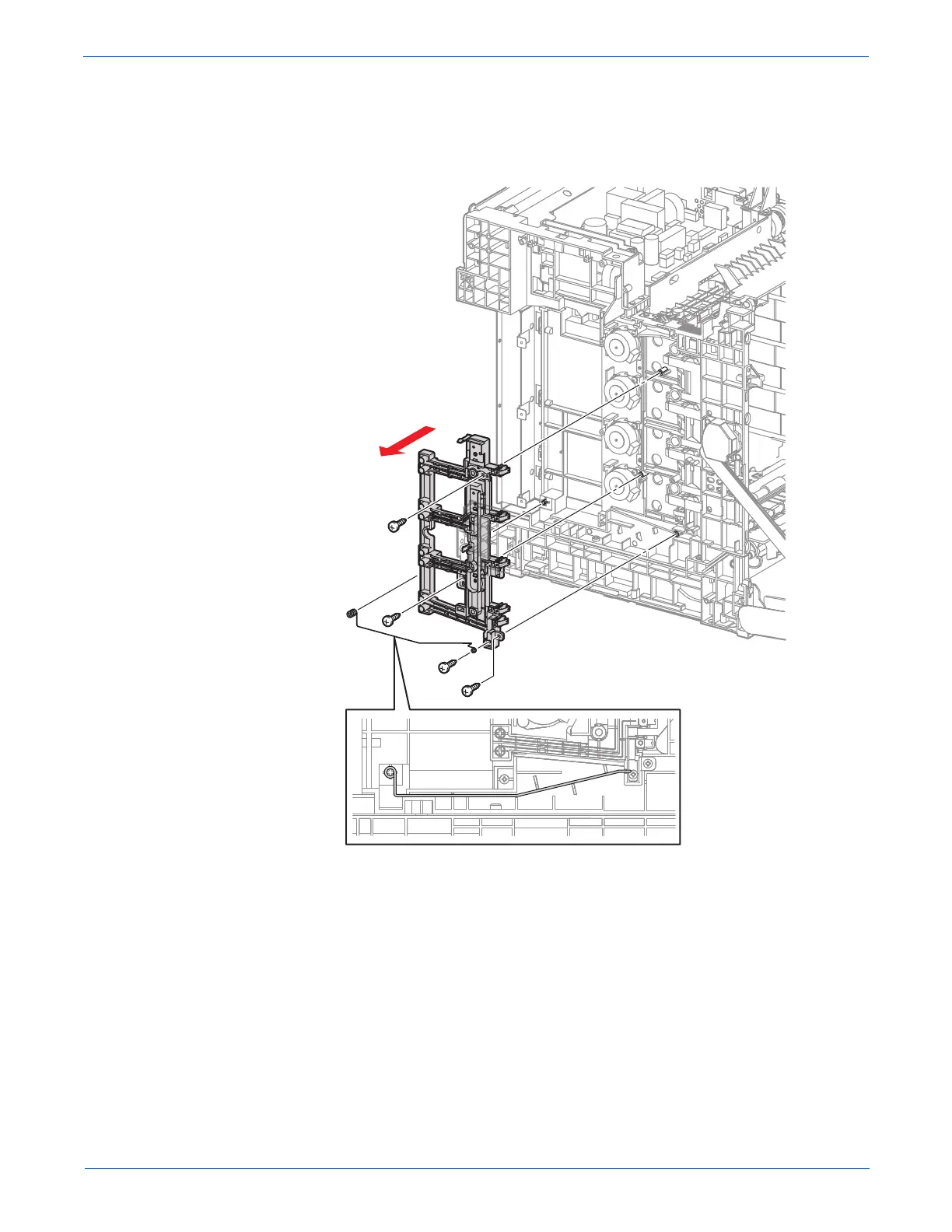

Remove 1 screw (10 mm) sec
uring t
he ESA Roll
Spring
(PL5.1.14).
11.
Remove the ESA R
oll Spr
ing (PL5.1
.14) from the
BIAS As
sembly
.
12.
Remove 3 screws (10 mm) sec
uring th
e Bias Assembly
.
13.
Remove the Bias
Assembly from the
printe
r
.
s6280-213
504
506
