Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-89
Service Parts Disassembly
Replacement Note
Replacement Note
DO NOT use the NVRAM ROM from the new I/P Board.
DO NOT apply pressure on the I/P Board when removing the NVRAM
ROM.
Make sure to move the NVRAM ROM from the old I/P Board to the
new I/P Board. Carefully check the correct orientation of the NVRAM
ROM when installing the NVRAM ROM.

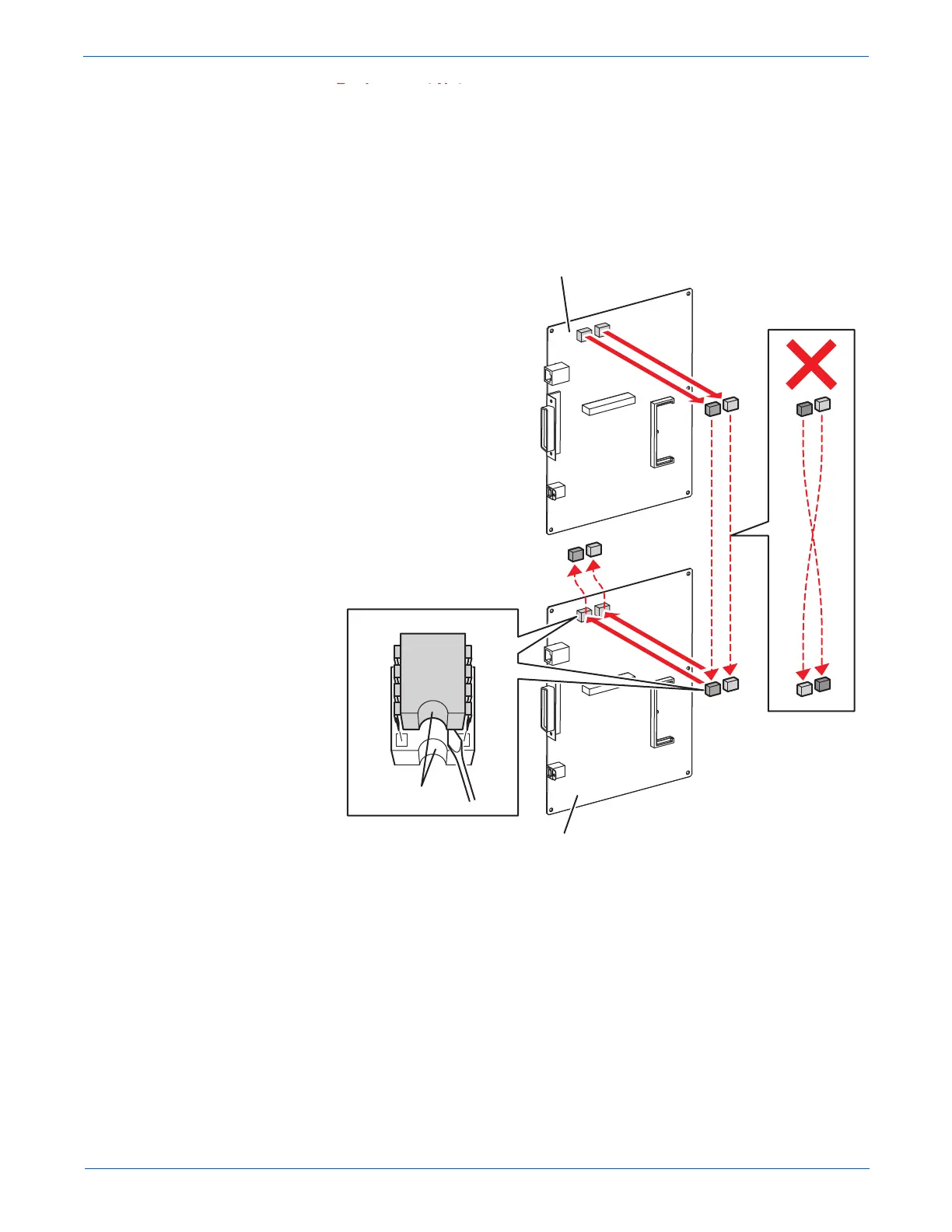

Old Image Processor Board
New Image Processor Board
Notch
s6280-244
