Phaser 6280 Color Laser Printer Service Manual 8-97
Service Parts Disassembly

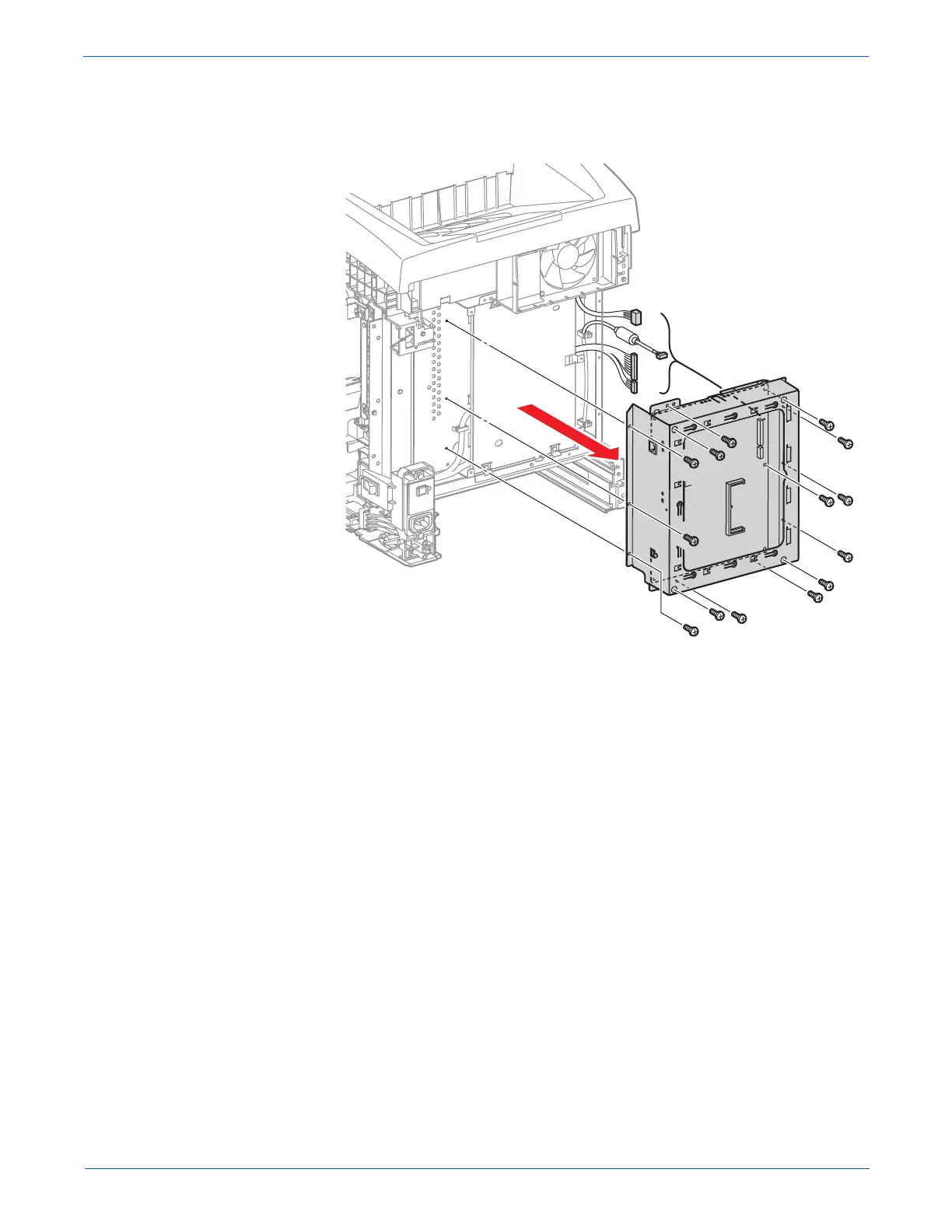

4. Disconnect the 4 wiring harness connectors on the I/P Board.
5. Remove 14 screws (6 mm) securing the I/P Board Shield.
6. Remove the I/P Board Shield from the printer.
s6280-250
