2-24 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation

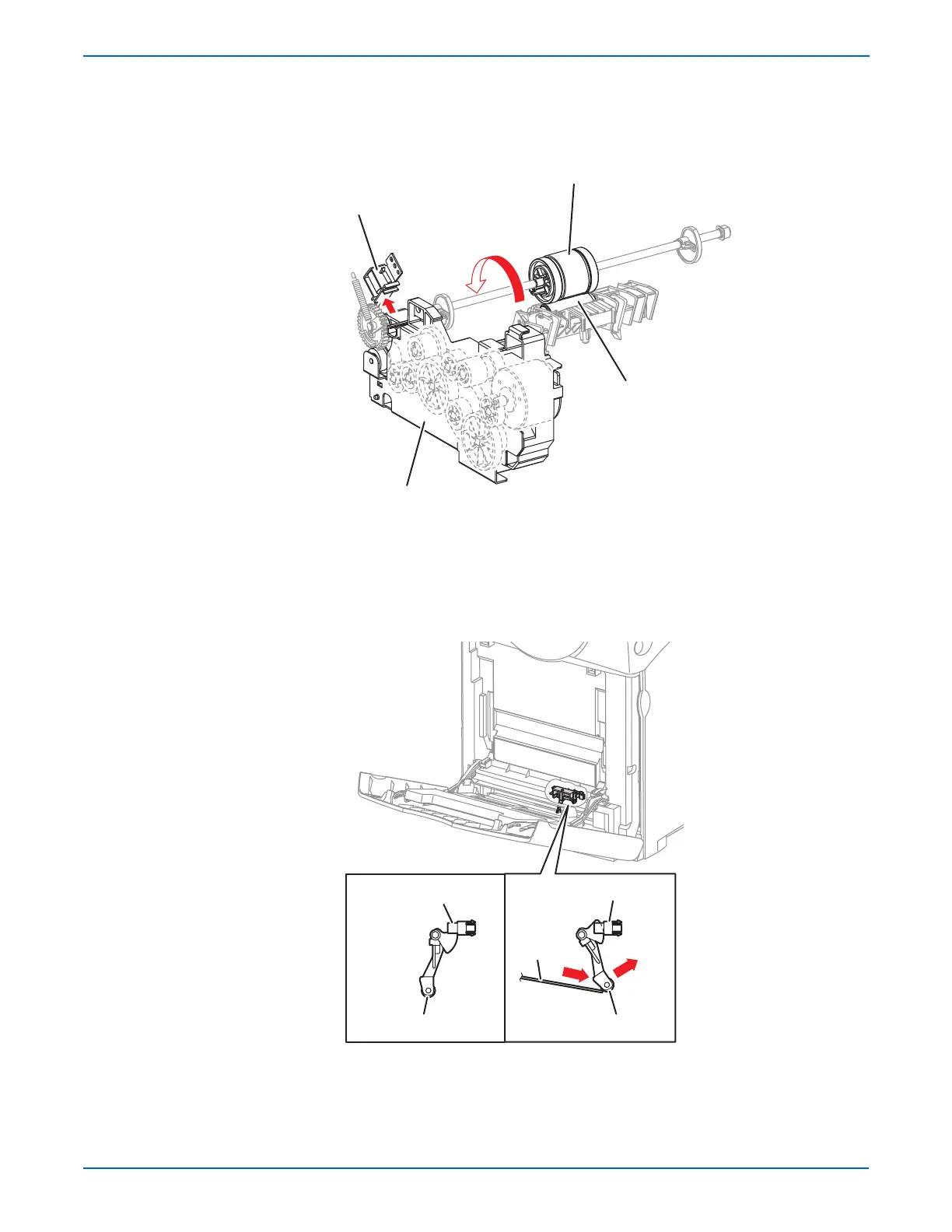

■ Tray 1 (MPT) Feed Solenoid
The Feed Solenoid controls drive energy from the PH Drive Assembly to
the Tray 1 (MPT) Feed Roller.
■ Tray 1 (MPT) No Paper Sensor
The No Paper Sensor detects the presence of paper in Tray 1 (MPT)
based on the Actuator’s position.
s6280-069
Tray 1 (MPT) Feed Solenoid
Tray 1 (MPT) Feed Roller
Retard Roller
Drive Assembly
Tray 1 (MPT) No Paper
Sensor
No Paper Actuator
s6280-070
Tray 1 (MPT) No Paper
Sensor
Paper
No Paper Actuator
