Xerox Phaser 6280 Service Manual

2-34 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation
■ CRU Sensor (C/M/Y/K)
The CRU Sensor detects the presence of the Print Cartridge.
■ Erase Lamp (LED)
The light of the LED passes through the lens of the Print Cartridge,
illuminates the drum, and eliminates the charge on the drum.

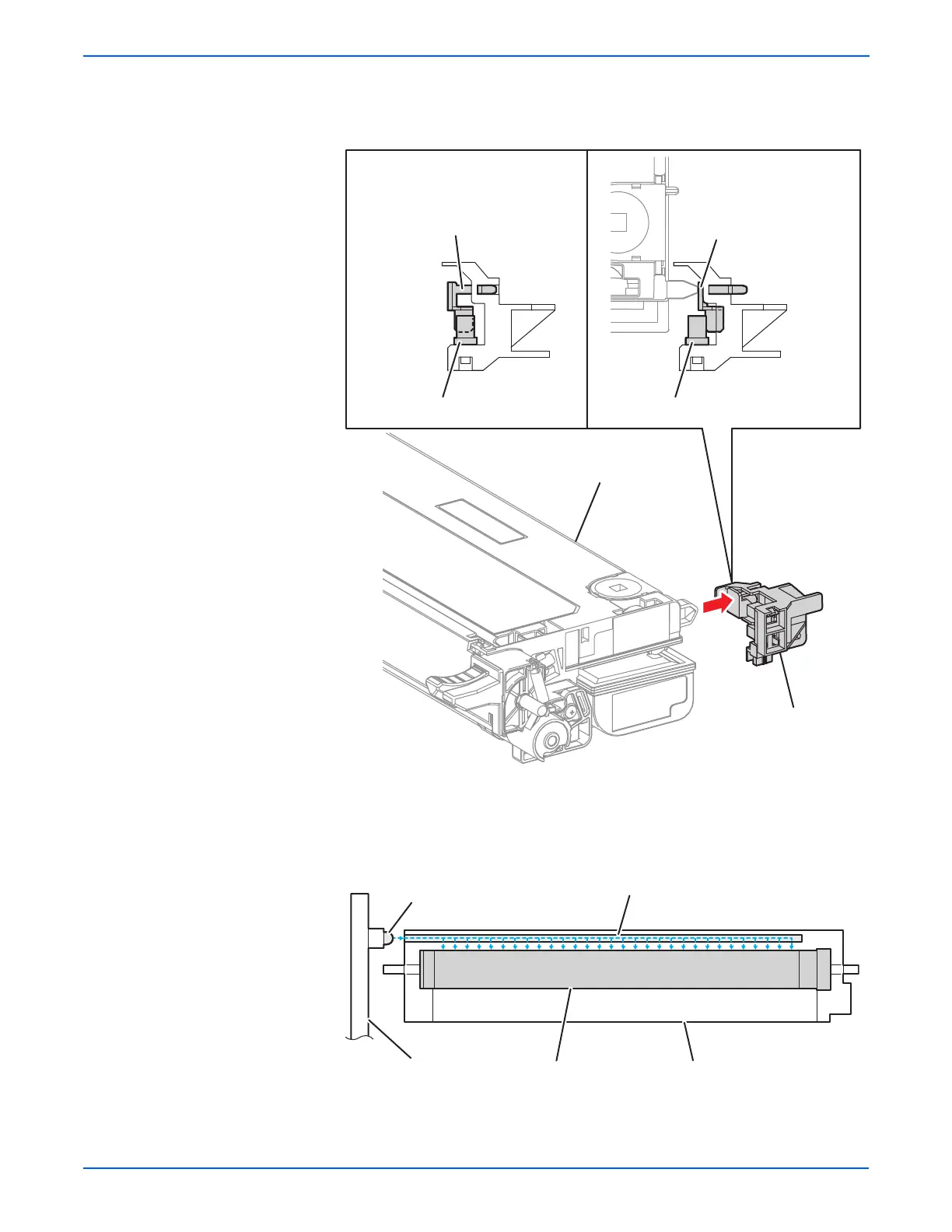

s6280-080
CRU Sensor Actuator
(No Cartridge Position)
CRU Sensor Actuator
(Cartridge in Position)
Print Cartridge Sensor (C, M, Y, K) Print Cartridge Sensor (C, M, Y, K)
Print Cartridge
CRU Sensor Assembly
s6280-081
Erase Lamp
Erase Lens
LED Drum Print Cartridge
