2-36 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation

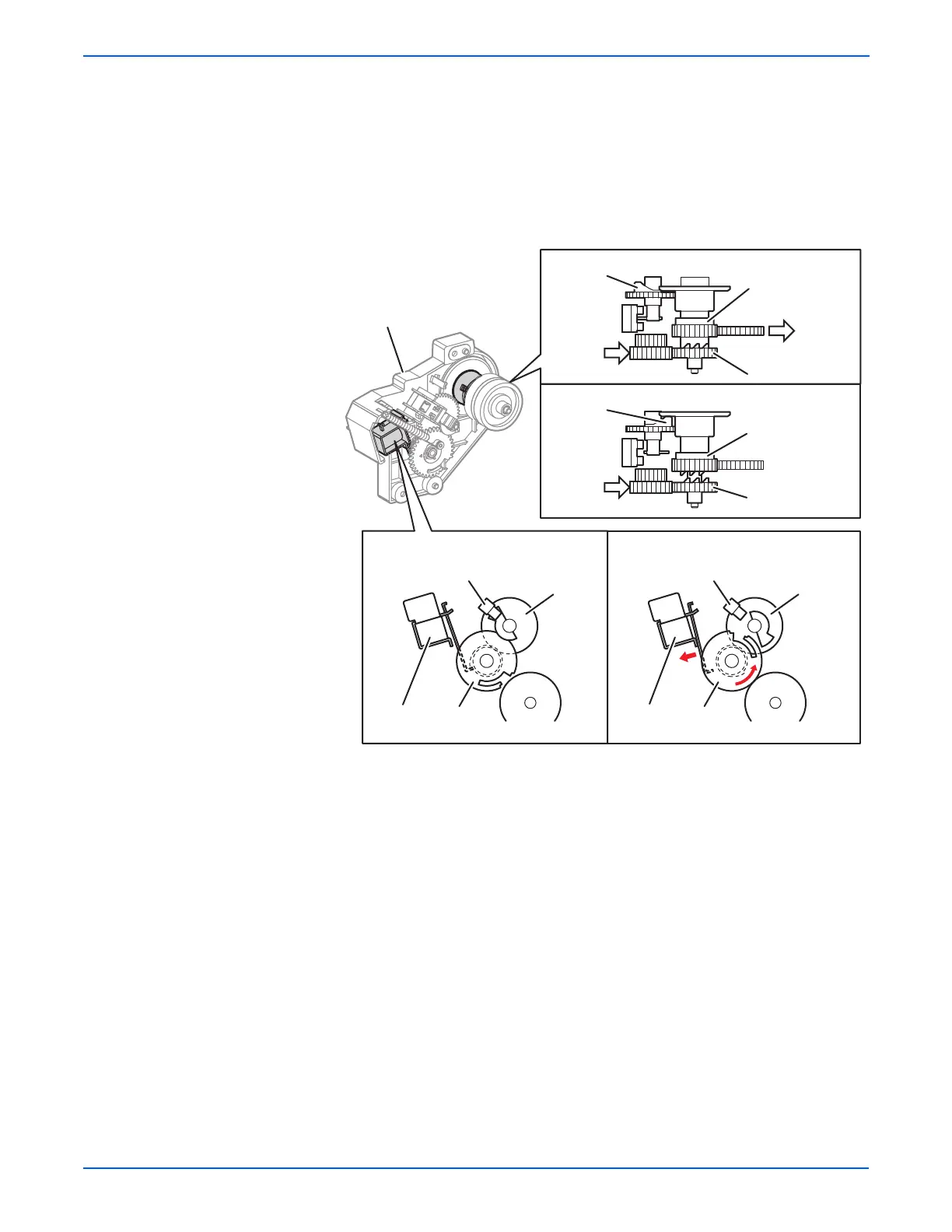

■ K Drive Assembly
The transmission channel is changed by the the Color Mode Switching
Solenoid in the K Drive Assembly to allow the driving force of the Sub
Motor to reach the C/M/y Developer only.
This process ensures that the Yellow, Magenta, and Cyan Developers
cannot be rotated by the Sub Drive Assembly during black and white
printing.
s6280-280
[ Full Color Mode ]
K Mode
Switching Sensor
K Mode
Switching Solenoid
Cam C
Gear C
K Mode
Switching Sensor
K Mode
Switching Solenoid
[ Black And White Mode ]
Cam C
Gear C
Drive
From
Sub Motor
Drive To
Developer
(Y, M, C)
Gear D3 In
Gear D3 Out
Cam C
K Drive Assembly
Drive
From
Sub Motor
Gear D3 In
Gear D3 Out
Cam C
[ Full Color Mode ]
[ Black And White Mode ]
