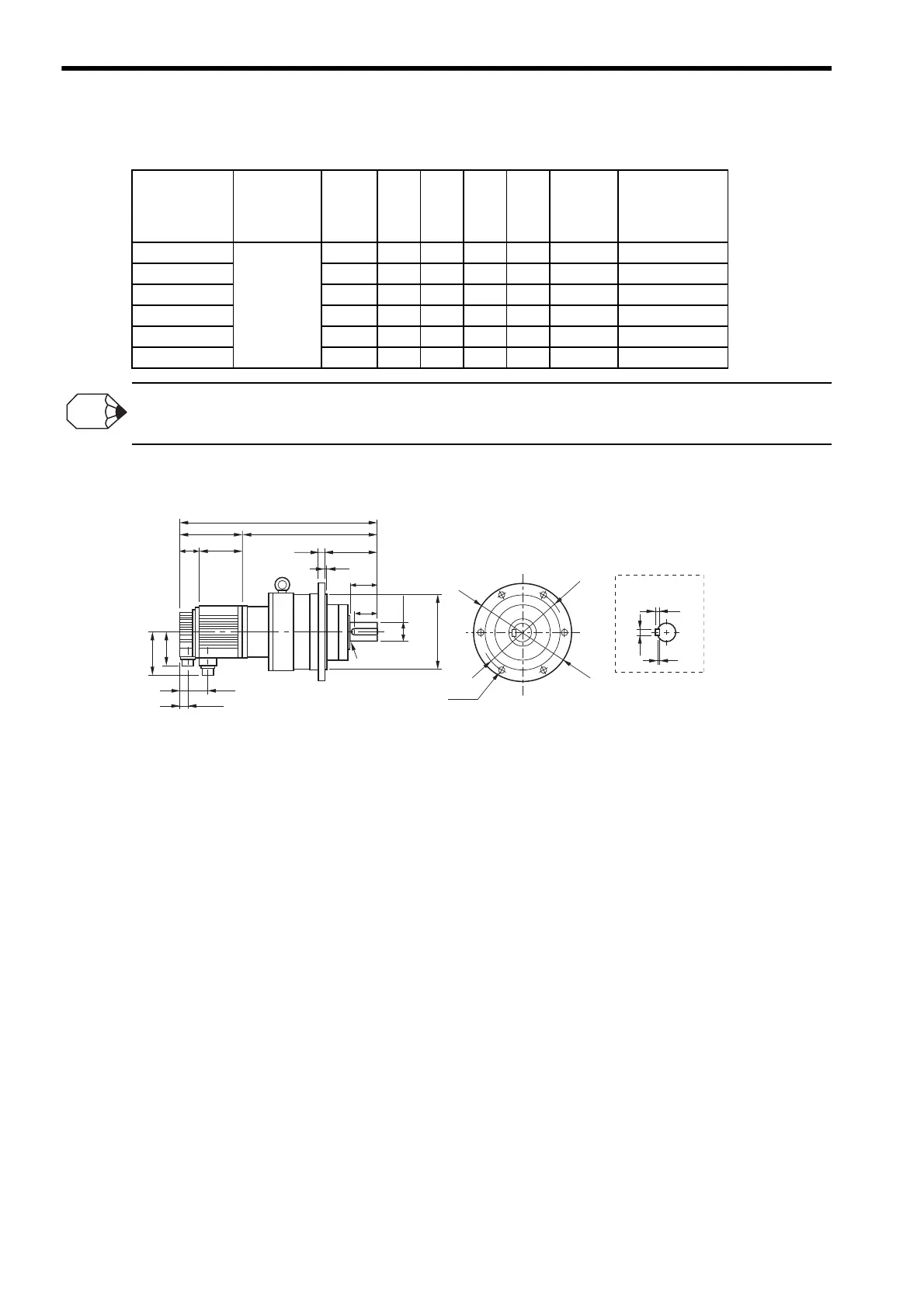

3 Servomotor Specifications and Dimensional Drawings

3.16.5 SGMGH Servomotors (1000 min

-1

) With Low-backlash Gears and Without Brakes (Flange-mounted Type)

3-114

 Lubrication

• Since grease has been filled prior to shipment, the servomotors can be used without replenishing grease.

(2) Large Grease Lubricating Type

Units: mm

Model

SGMGH-

Gear Type

Gear

Ratio

LLLLMR

Approx.

Mass

Shaft Center

Allowable

Radial Load

03ABL14

ANFJ-L20

1/5 394 138 92 256 14 833

03ABL24

1/9 406 138 92 268 14 980

03ABL54

1/20 425 138 92 287 16 1270

06ABL14

1/5 417 161 115 256 16 833

06ABL24

1/9 429 161 115 268 16 980

09ABL14

1/5 441 185 139 256 18 833

INFO

KB1

KB2

KL1

LMLT

φLBh7

φSh6

6-φLZ

φLA

φLC

Shaft End
