3 Servomotor Specifications and Dimensional Drawings

3.19.6 SGMCS Servomotors φ360 Model

3-132

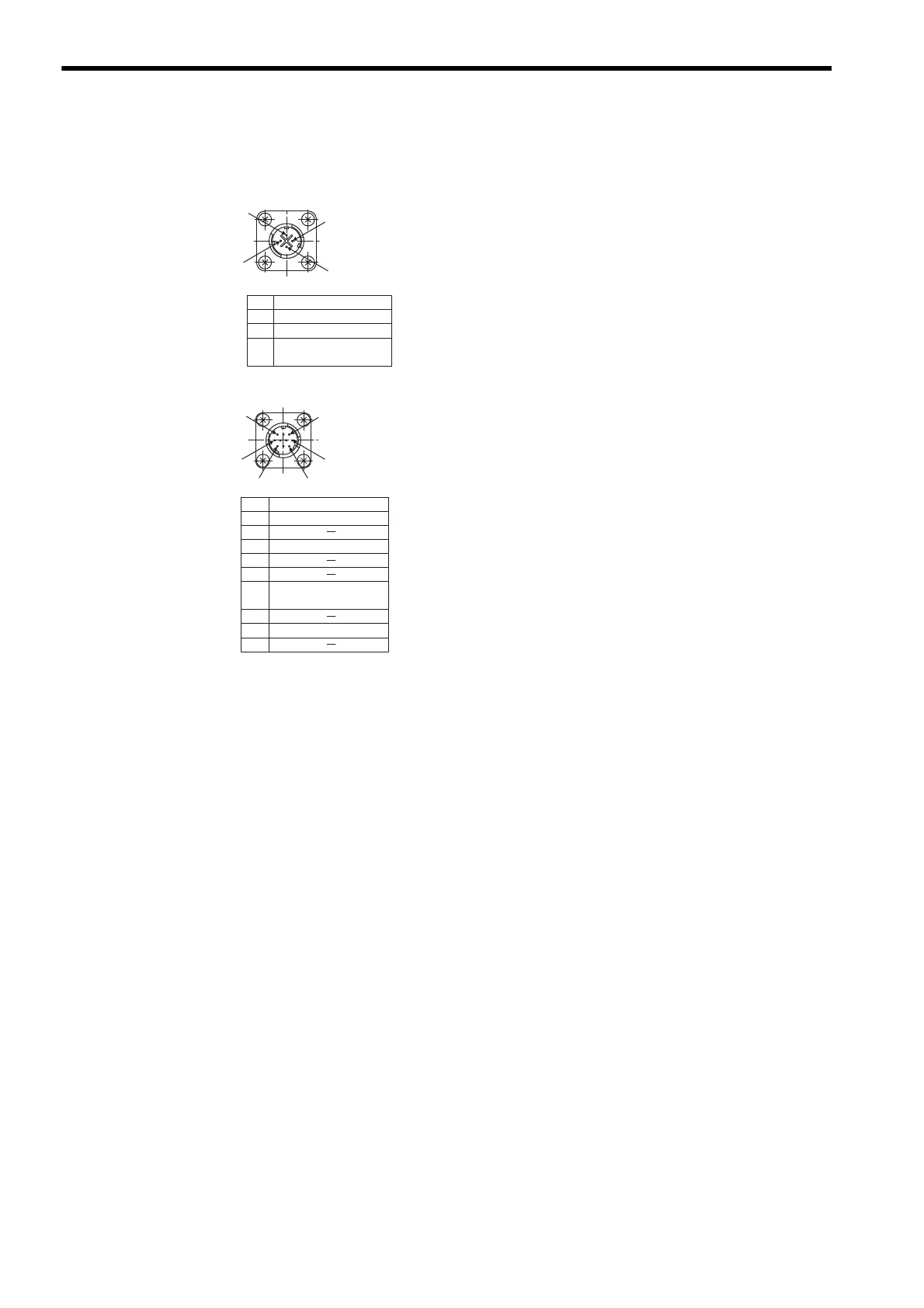

• Servomotor Connector for Small-capacity Series Servomotors

Applicable Flange: 1, 3

Servomotor-end Connector Cable Specifications

Encoder-end Connector Cable Specifications

Model: JN1AS04MK2

Manufacturer: Japan Aviation Electronics Industry, Ltd.

Applicable plug: JN1DS04FK1

(Provided by the customer.)

Phase U

Phase V

Phase W

(Frame ground)

PG5V

PG0V

∗PS

(Frame ground)

Model: JN1AS10ML1

Manufacturer: Japan Aviation Electronics Industry, Ltd.

Applicable plug: JN1DS10SL1

(Provided by the customer.)
