3.19 Dimensional Drawings of SGMCS Servomotors

3-133

Servomotor Specifications and Dimensional Drawings

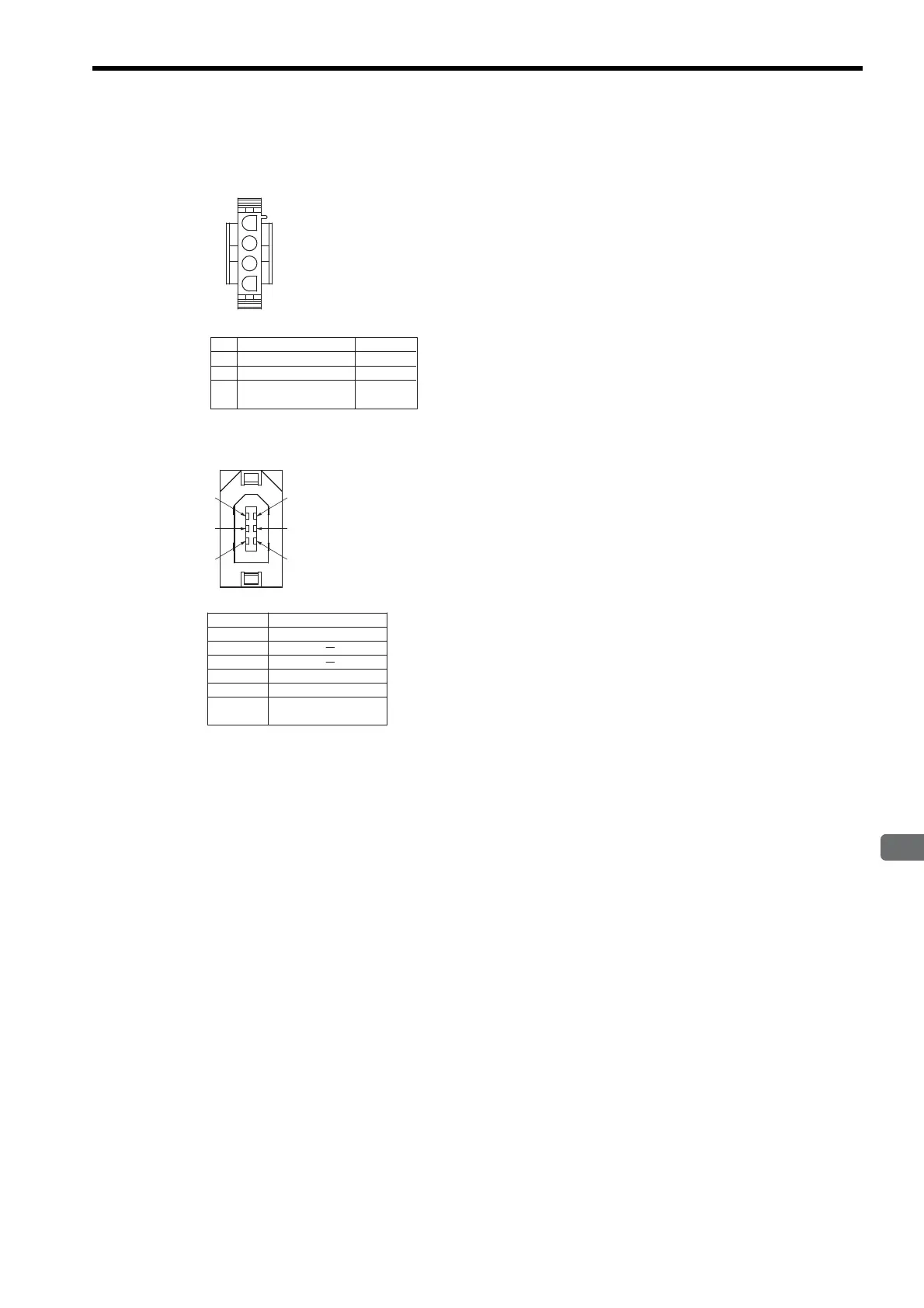

• Servomotor-end Connector for Small-capacity Series Servomotors

Applicable Flange: 4

Servomotor-end Connector Cable Specifications

Phase U

Phase V

Phase W

(Frame ground)

Red

White

Blue

Green

(yellow)

Model

Plug:

350779-1

Pin: 350561-3 or 350690-3 (No.1 to 3)

Ground pin: 350654-1 or 350669-1 (No.4)

Manufacturer: Tyco Electronics

AMP K.K.

Applicable plug

Cap: 350780-1

Socket: 350570-3 or 350689-3

Encoder-end Connector Cable Specifications

PG0V

/PS

PG5V

Connector

case

(Frame ground)

Model: 55102-0600

Manufacturer: Molex Japan Co., Ltd.

Applicable plug: 54280-0600
