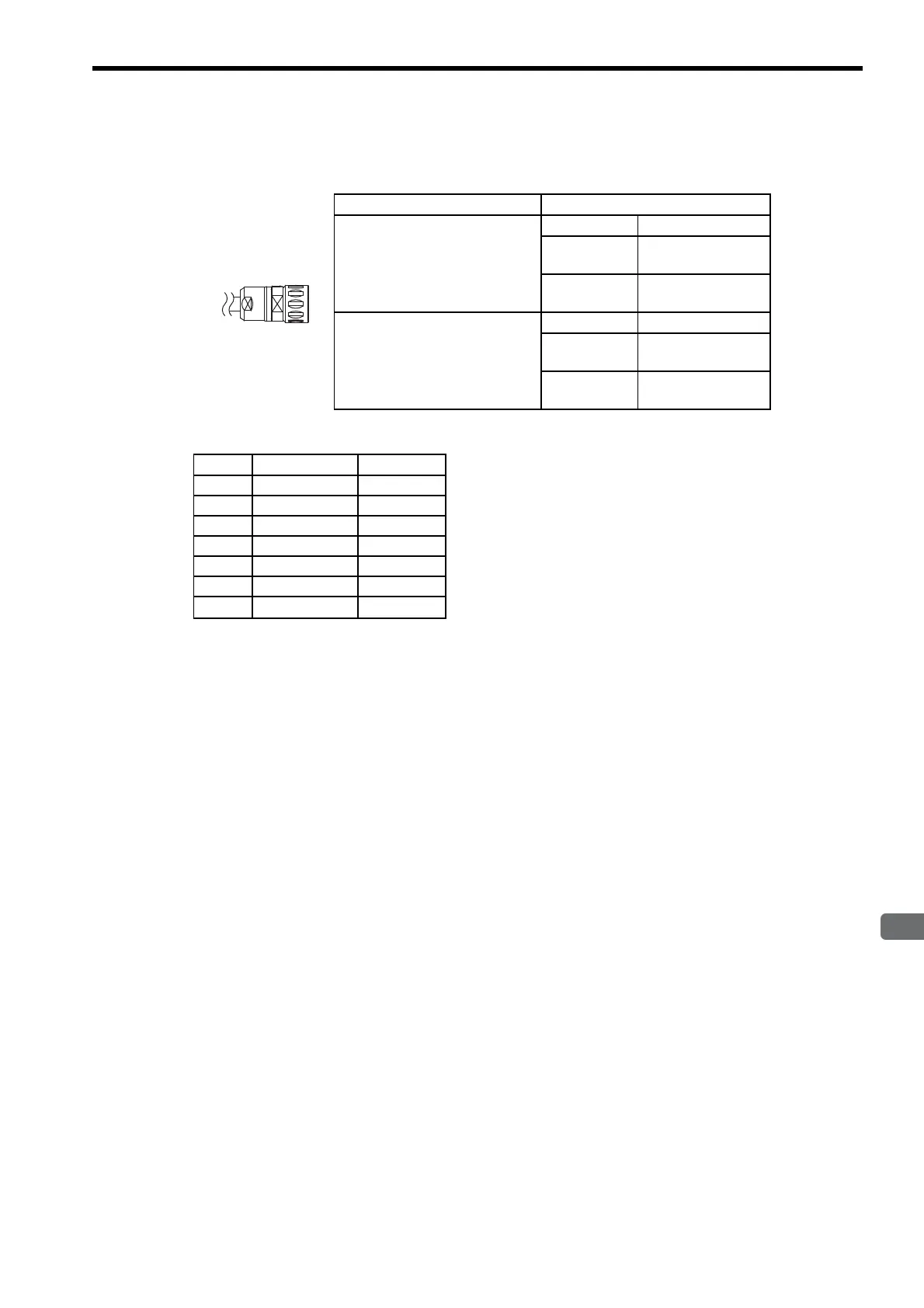

5.2 Servomotor Main Circuit Wire Size and Connectors

5-11

Specifications and Dimensional Drawings of Cables and Peripheral Devices

(7) SGMAH and SGMPH Servomotors With a Waterproof Connector

(a) Connector Type: Refer to the table below.

(b) Connector Pin Arrangement

Applicable Servomotor Models Type

SGMAH

30 W to 750 W

SGMPH

100 W to 750 W

Plug SPUC06KFSDN236

Socket

020.030.1020

Soldered type

Manufacturer

Interconnectron

Gmbh

SGMPH

1.5 kW

Plug SPUC06KFSDN020

Socket

020.030.1020

Soldered type

Manufacturer

Interconnectron

Gmbh

Pin No. Signal Lead Color

1Phase U Red

2 Phase V White

3 Phase W Blue

4 Brake Terminal Black

5 Brake Terminal Black

6FGGreen

−−
