No. Parameter Name Setting Range Default
d7-01 Offset Frequency 1 -100.0 to 100.0 0%
d7-02 Offset Frequency 2 -100.0 to 100.0 0%
d7-03 Offset Frequency 3 -100.0 to 100.0 0%
Setting Function Name Page
44 Offset Frequency 1 Calculations -
45 Offset Frequency 2 Calculations -
46 Offset Frequency 3 Calculations -
Multi-Function Inputs H1-01 to H1-07
Detailed Description
The figure below illustrates how multi-function input terminal settings operate.
Frequency
Reference
Offset Frequency 1 [d7-01]
(Signed)
Offset Frequency 2 [d7-02]
(Signed)
Offset Frequency 3 [d7-03]
(Signed)
Multi-Function Input (44) = on
Multi-Function Input (45) = on
Multi-Function Input (46) = on
SFS
+
+
+
+
+
+

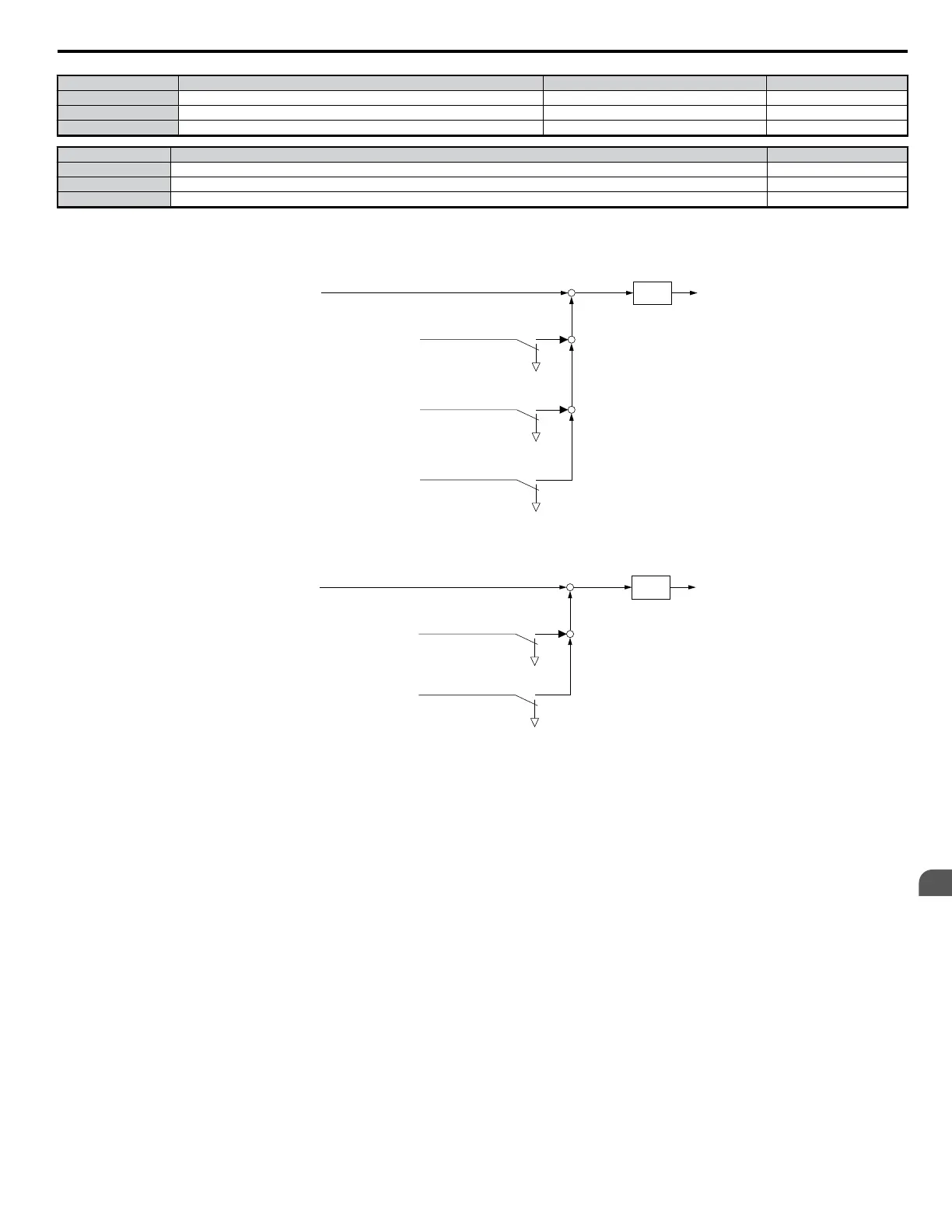

Figure 5.33 Offset Frequency Operation
When two signals from d7-01 through d7-03 differ in sign, the +/- Speed function can be used.
Frequency Reference
SFS
Multi-Function Input (44) = On
Multi-Function Input (45) = On
Offset Frequency [d7-01]
(Positive Value)
Offset Frequency [d7-02]
(Negative Value)
+
+
+
+
Figure 5.34 Offset Frequency and ± Speed Timing
