Status Description
Open Drive is stopped or is performing DC Injection, Short Circuit Braking, or Initial Excitation.
Closed Drive is producing a frequency output
ON
ON
OFF
OFF
ONOFF
ON
run command
baseblock
command
output
frequency
during run
during frequency
output
OFF

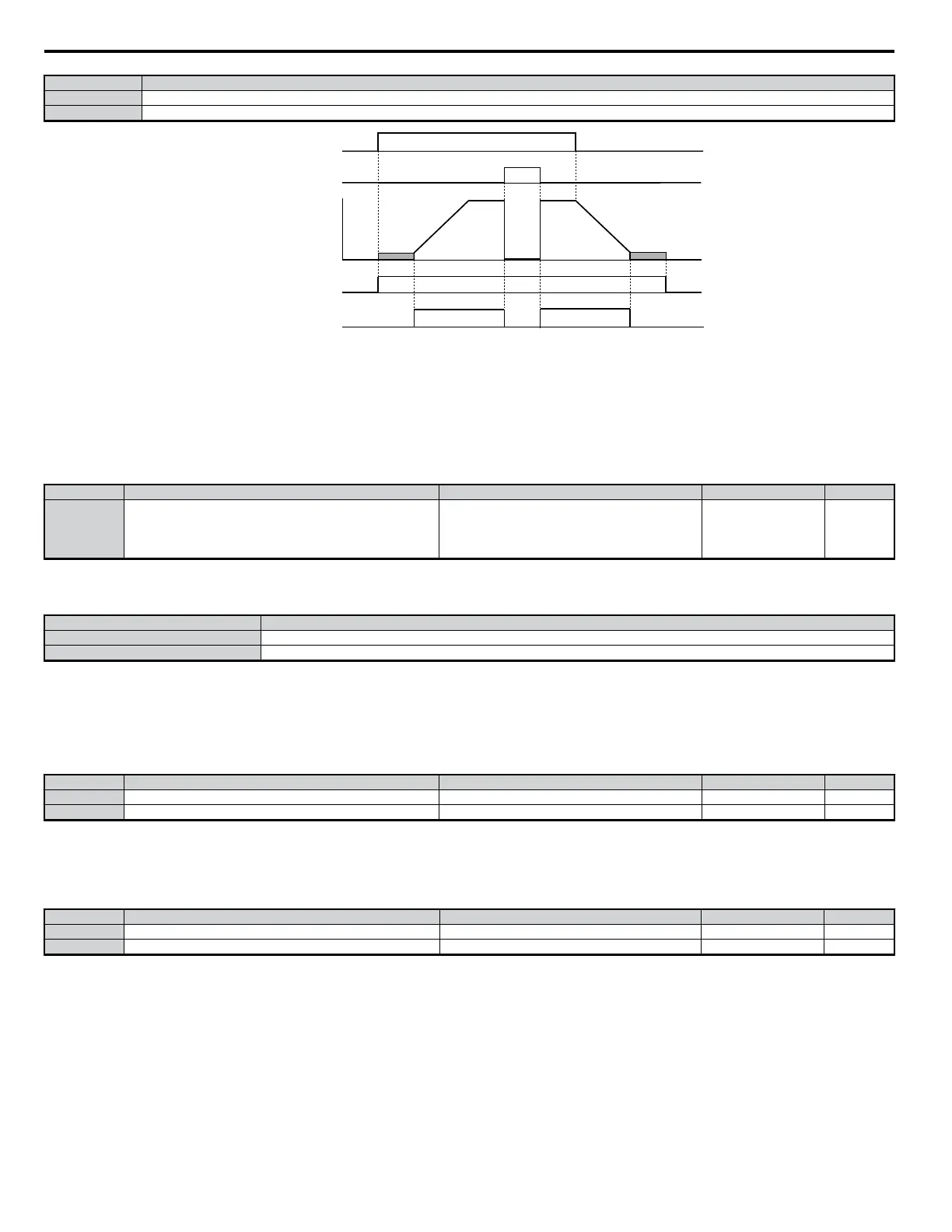

Figure 5.59 Timing Diagram During Frequency Output
Setting 38: Drive Enabled
A Drive Enable digital output will reflect the status of a digital input configured as a Drive Enable input (H1-0x = 6A). If the Drive Enable digital input
is closed then the Drive Enabled digital output will also close.
Setting 39: Watt Hour Pulse Output
Outputs a pulse to indicate the watt hour. Set H2-06 to specify the units. Output terminal closes every 200 ms.
No. Parameter Name Setting Range Default Page
H2-06 Watt Hour Output Unit Selection
0: 0.1 kWH units
1: 1 kWH units
2: 10 kWH units
3: 100 kWH units
4: 1000 kWH units
0 −
Setting 3C: REMOTE/LOCAL Switch
Output terminal closes while the drive is set for LOCAL, and opens when in REMOTE.
Status Description
Open REMOTE
Closed LOCAL
Setting 3D: During Speed Search
Output terminal closes while Speed Search is being performed.
Setting 3E: PID Feedback Loss
Output terminal closes when a the PID feedback signal is lost. Works for both pulse input and analog input PID signals. For PID loss to be detected, set
the loss level to b5-13 and the detection time to b5-14.
No. Parameter Name Setting Range Default Page
b5-13 PID Feedback Loss Detection Level 0 to 100 0% −
b5-14 PID Feedback Loss Detection Time 0.0 to 25.5 1.0 s −
Note: For details on a PID, b5: PID Control.
Setting 3F: PID Feedback High Fault
Output terminal closes when a the PID feedback signal is too high for too long. Works for both pulse input and analog input PID signals. To detect an
excessively high PID signal, set the detection level to b5-36 and the detection time to b5-37.
No. Parameter Name Setting Range Default Page
b5-36 PID Feedback High Detection Level 0 to 100 100% −
b5-37 PID Feedback High Level Detection Time 0.0 to 25.5 1.0 s −
Note: For details on a PID, b5: PID Control.
Setting 4A: During KEB Operation
Output terminals closes while KEB is being performed.
Setting 4B: During Short Circuit Braking
Closes the output terminal while Short Circuit Braking is being executed.
Setting 4C: During Fast Stop
Output terminal closes when a Fast Stop is being executed.
Setting 4D: oH Pre-Alarm Time Limit
Output terminals closes when then overheat prealarm continues passed the allowable time.
5.7 H: Terminal Functions
178
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
