YASKAWA V1000 Series

C
B
A
A – Braided shield cable
B – Metal panel
C – Cable clamp (conductive)

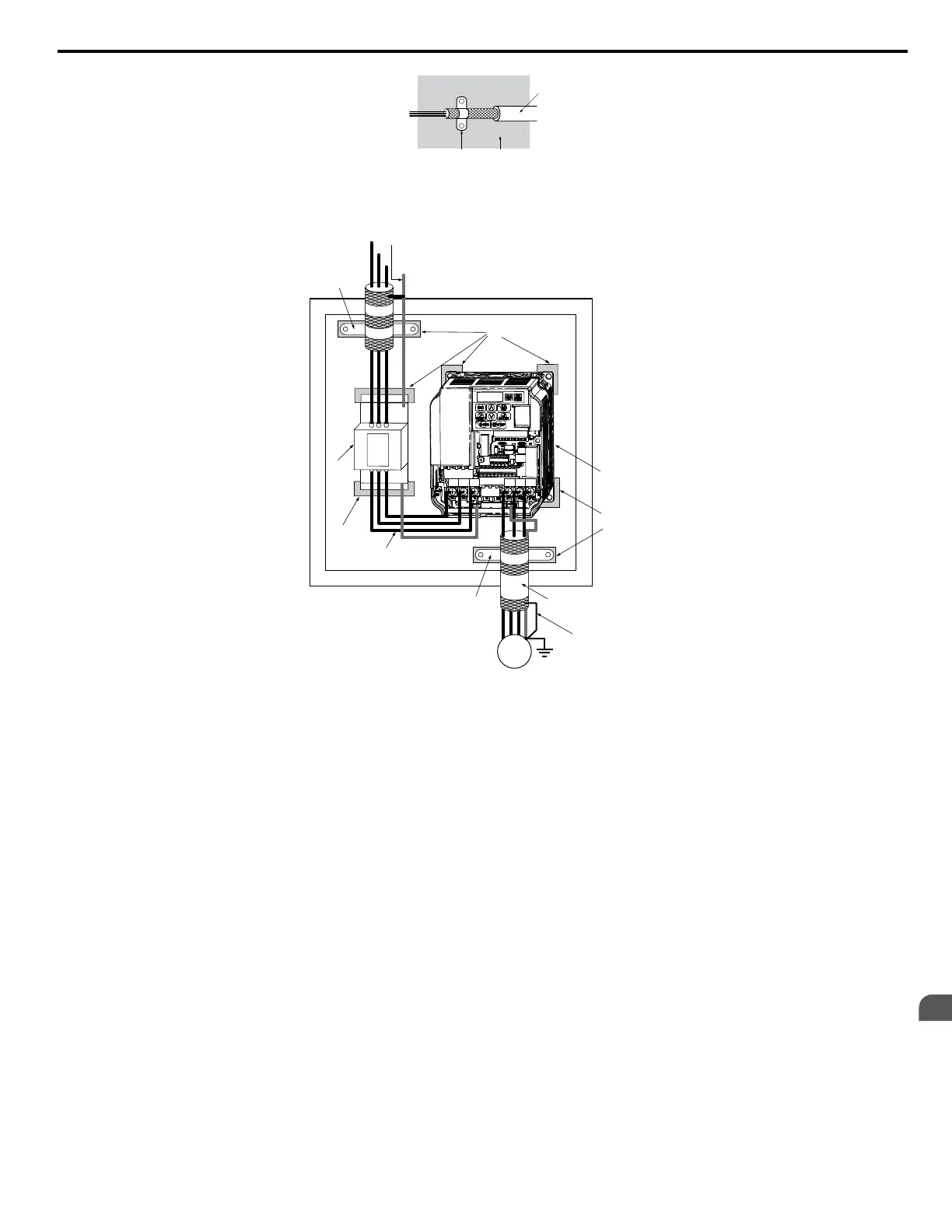

Figure 8.12 Ground Area
Three-Phase 200 V / 400 V Class
C
D
H
H
D
D
I
E
J
B
F
G
A
A
L3 L2 L1L3 L2 L1
E
L3
L2
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface (remove any paint
or sealant)
E – Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Max. distance between drive and
noise filter
J – EMC noise filter
Figure 8.13 EMC Filter and Drive Installation for CE Compliance
(Three-Phase 200 V / 400 V Class)
8.4 Installing Peripheral Devices
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)
275
8
Peripheral Devices & Options
