A – Line up the tab with the mounting
hole.
B – Line up the tab with the mounting
hole.

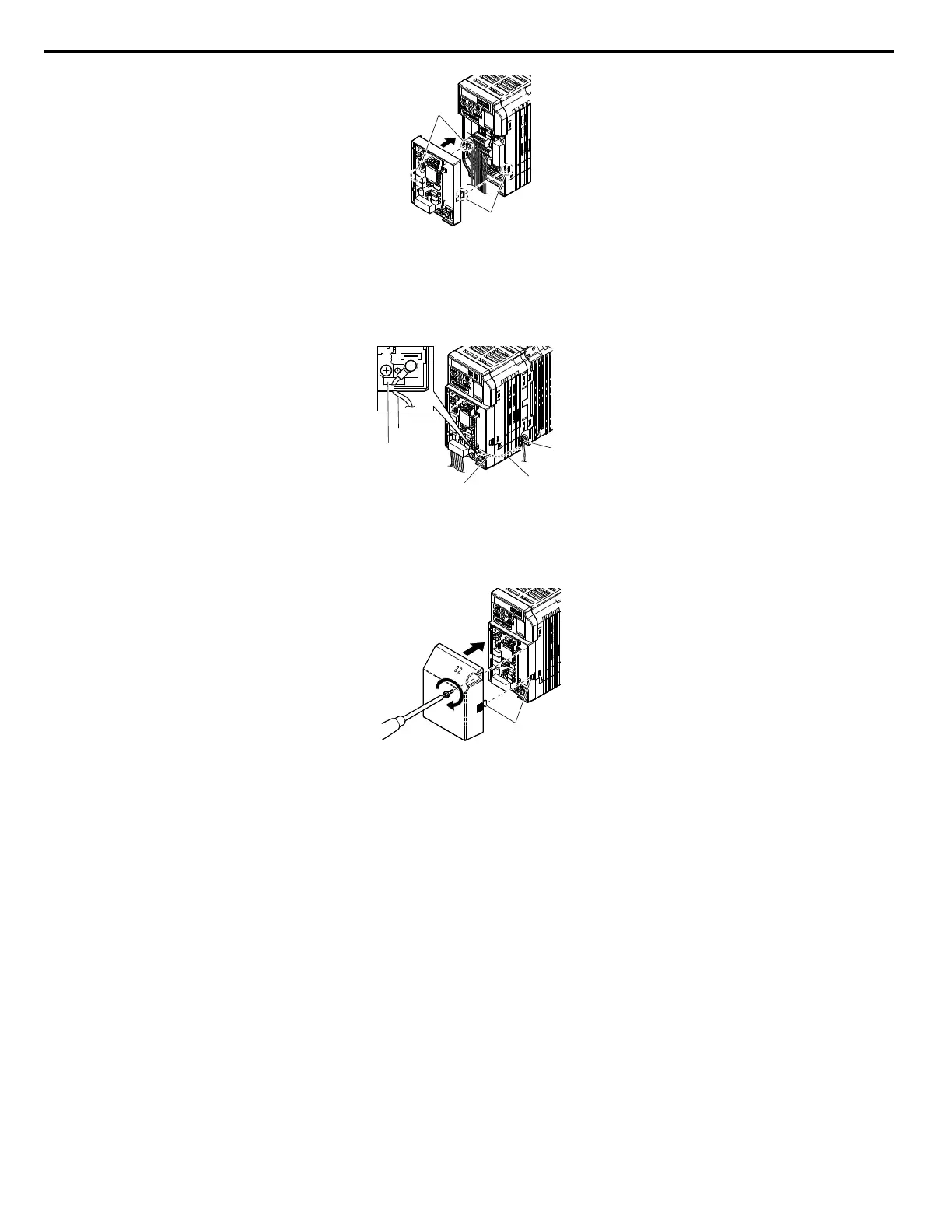

Figure 8.19 Attach Option Card
Note: Gently pack wires to fit behind the left and right side of the cover into the provided recess.
5.
Connect the lead from the drive ground terminal to the same terminal as the option card lead.
The option card lead should exit through the holes provided on the underside of the drive as it gets routed passed the ground terminal.
C
A
E
D
B
A – Drive ground terminal
B – Route the lead wire on the inside of
the lower cover.
C – Ground lead
D – Ground lead through-hole
E – Ground lead
Figure 8.20 Lead Wire Connection
6.
Reattach the option card cover.
A
A – Align the tab with the mounting hole.
Figure 8.21 Reattach Cover
8.6 Connecting an Option Card
280
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
