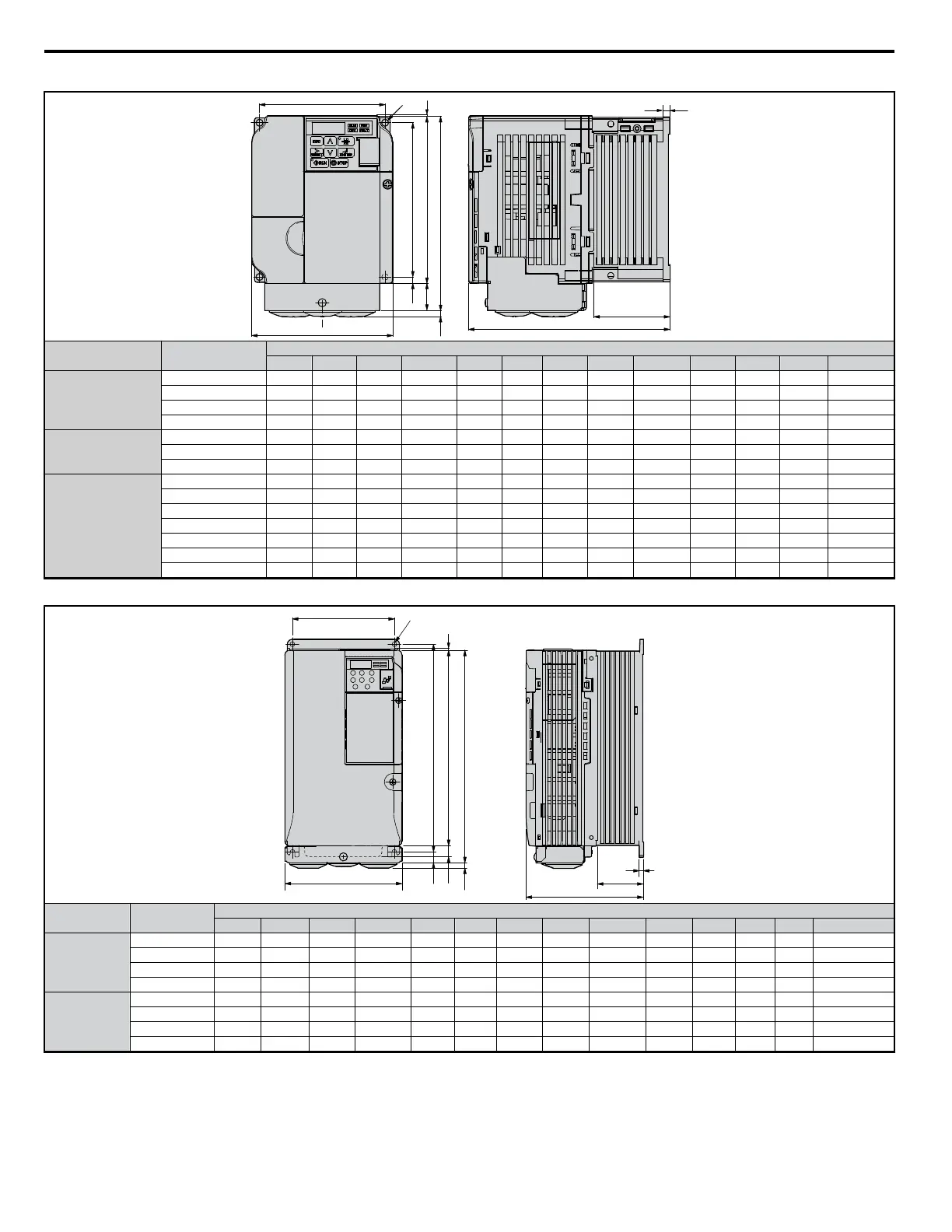

YASKAWA V1000 Series Technical Manual

Table 2.6 IP20/NEMA Type 1 (without an EMC filter)
H6
4-M4
W1
W
H5 H2
H4
HH3
D1
D
H1
t1
Voltage Class
Drive Model
CIMR-Vo
Dimensions (in)
W1 H2 W H1 D t1 H5 D1 H H4 H3 H6 Weight (lb)
Single-Phase
200 V Class
BA0006F 3.78 4.65 4.25 5.10 5.41 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
BA0010F 3.78 4.65 4.25 5.10 6.06 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.4
BA0012F 5.04 4.65 5.51 5.24 6.42 0.20 0.20 2.56 6.02 0.79 0.19 0.20 5.7
BA0018F 6.22 1.65 6.69 5.24 7.09 0.20 0.20 2.56 6.73 1.50 0.19 0.20 7.3
Three-Phase
200 V Class
2A0010F 3.78 4.65 4.25 5.10 5.08 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
2A0012F 3.78 4.65 4.25 5.10 5.41 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
2A0020F 5.04 4.65 5.51 5.24 5.63 0.20 0.20 2.56 6.02 0.79 0.19 0.20 5.7
Three-Phase
400 V Class
4A0001F 3.78 4.65 4.25 5.10 3.19 0.20 0.20 0.39 5.89 0.79 0.16 0.06 2.6
4A0002F 3.78 4.65 4.25 5.10 3.90 0.20 0.20 1.10 5.89 0.79 0.16 0.06 3.1
4A0004F 3.78 4.65 4.25 5.10 5.41 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
4A0005F 3.78 4.65 4.25 5.10 6.06 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
4A0007F 3.78 4.65 4.25 5.10 6.06 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
4A0009F 3.78 4.65 4.25 5.10 6.06 0.20 0.20 2.28 5.89 0.79 0.16 0.06 4.2
4A0011F 5.04 4.65 5.51 5.24 5.63 0.20 0.20 2.56 6.02 0.79 0.19 0.20 5.7
Table 2.7 IP20/NEMA Type 1 (without an EMC filter)
W1
W
H5
H2
H4
H
H3
D1
t1
D
H1
4-d
H6
Voltage Class
Drive Model
CIMR-Vo
Dimensions (in)
W1 H2 W H1 D t1 H5 D1 H H4 H3 H6 d Weight (lb)
Three-Phase
200 V Class
2A0030F 4.80 9.76 5.51 9.21 5.51 0.20 0.51 2.17 10.00 0.51 0.24 0.06 M5 8.38
2A0040F 4.80 9.76 5.51 9.21 5.51 0.20 0.51 2.17 10.00 0.51 0.24 0.06 M5 8.38
2A0056F 6.30 11.18 7.09 10.63 6.42 0.20 0.51 2.95 11.42 0.59 0.24 0.06 M5 12.13
2A0069F 7.56 13.23 8.66 12.60 7.36 0.20 0.87 3.07 13.78 0.59 0.28 0.06 M5 20.28
Three-Phase
400 V Class
4A0018F 4.80 9.76 5.51 9.21 5.51 0.20 0.51 2.17 10.00 0.51 0.24 0.06 M5 8.38
4A0023F 4.80 9.76 5.51 9.21 5.51 0.20 0.51 2.17 10.00 0.51 0.24 0.06 M5 8.38
4A0031F 6.30 11.18 7.09 10.63 5.63 0.20 0.51 2.17 11.42 0.59 0.24 0.06 M5 11.46
4A0038F 6.30 11.18 7.09 10.63 6.42 0.20 0.51 2.95 11.42 0.51 0.24 0.06 M5 12.13
2.2 Mechanical Installation
30
YASKAWA ELECTRIC SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual (Preliminary)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
