116

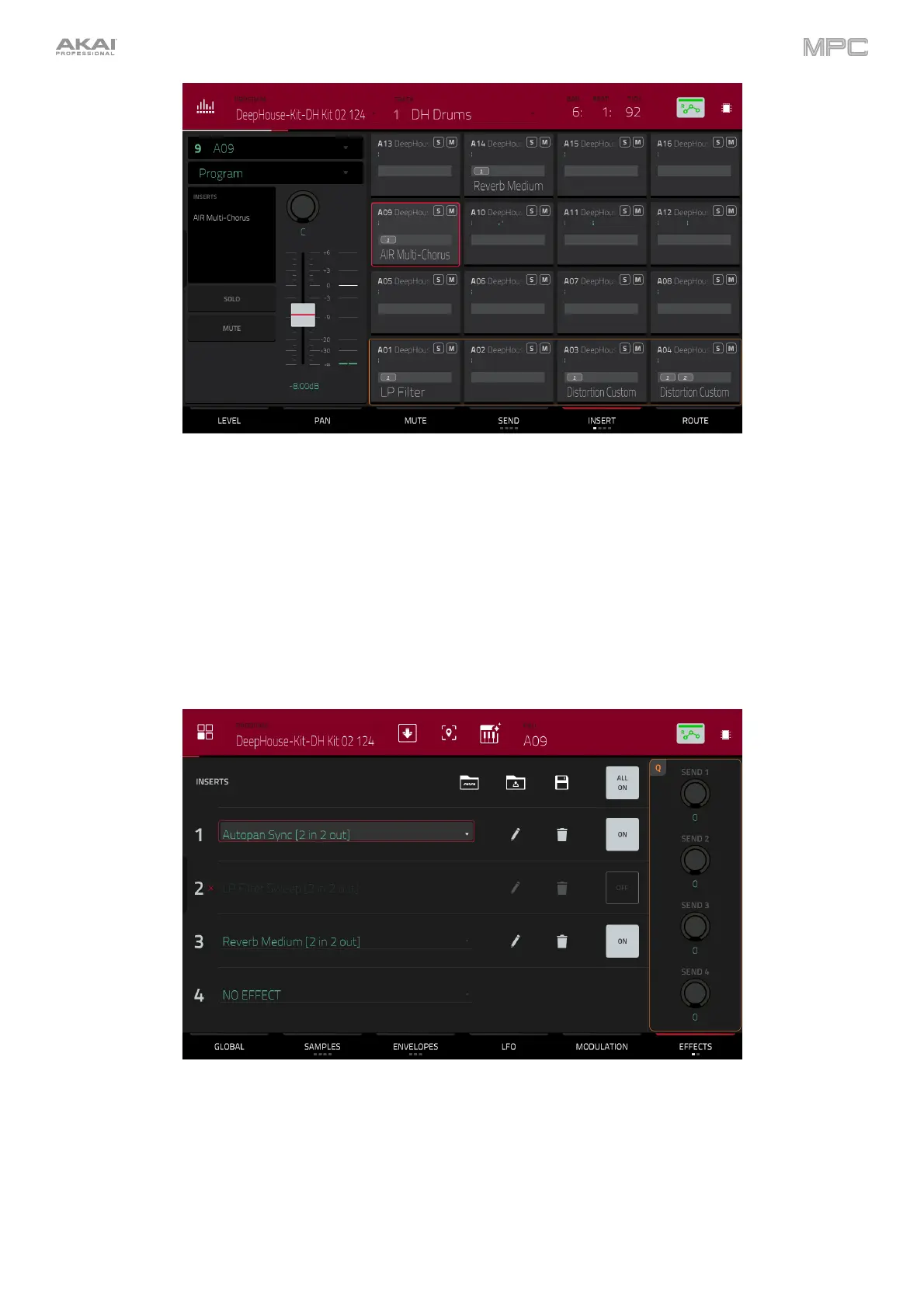

To load a pad insert effect in the Pad Mixer:
1. Use the Program field at the top of the screen to select the desired program. Alternatively, use the Track field at
the top of the screen to select the desired track—the program it uses will be selected automatically.
2. Press the desired pad to select it, or tap it on the screen. Alternatively, double-tap the Pad field below the
Program field.
3. Tap the area under Inserts, and then use the screen that appears to load or edit effects. Alternatively, tap the Insert
tab at the bottom of the screen (tap it multiple times to select a different insert slot), and then double-tap the desired
pad on the screen. You could also use the data dial or –/+ buttons to select an effect immediately.
To load a pad insert effect in Program Edit Mode:
1. While using the desired program, press the desired pad to select it.
2. Tap the Effects tab in the lower-right corner, and use it to load or edit effects.
To Next Page
