Akai MPC Live User Manual

319

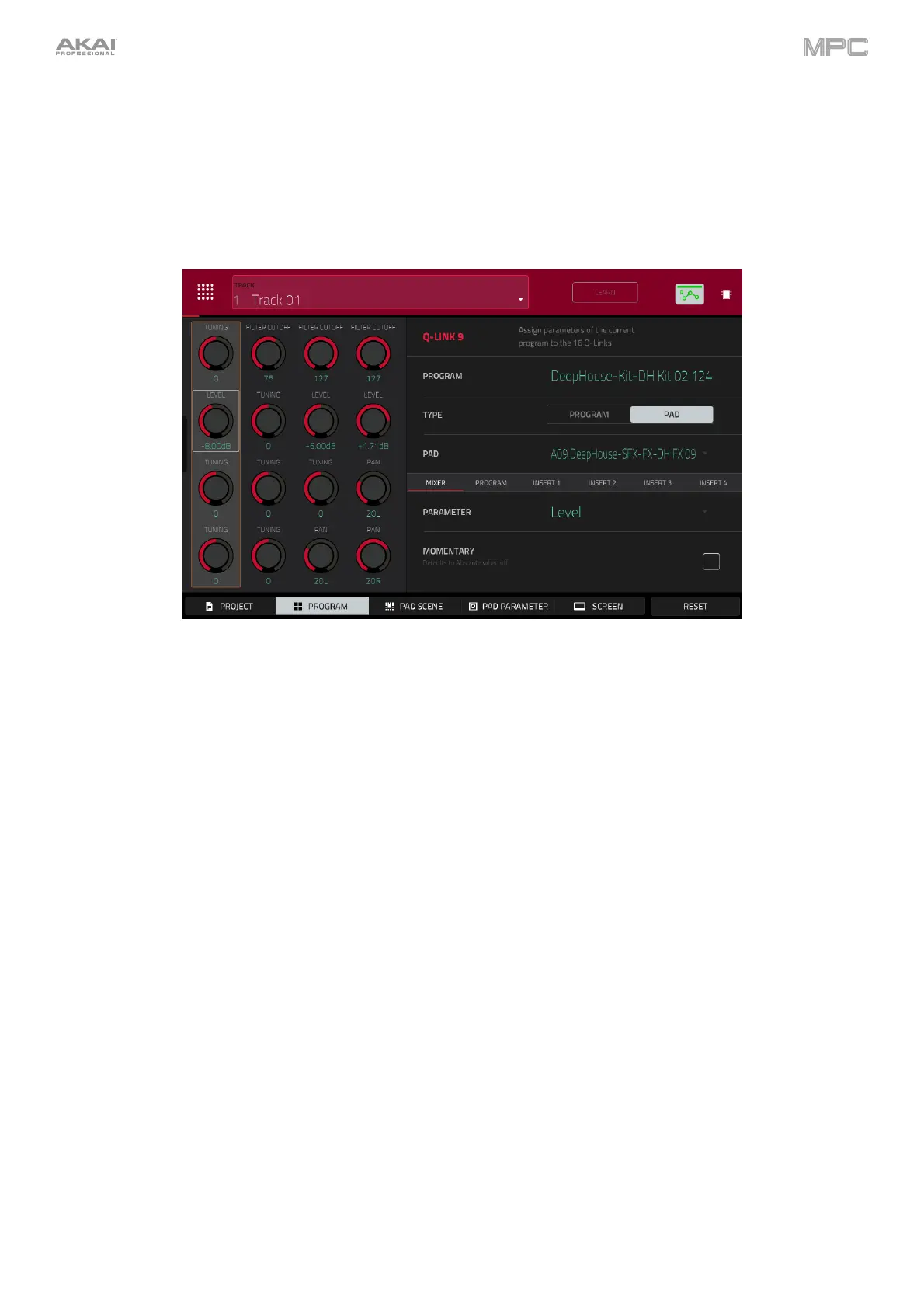

Program/Audio Track
In the Program/Audio Track Q-Link Edit Mode, the Q-Link knobs control 16 parameters within the currently selected
program or audio track.
When a MIDI track is selected:
Next to the top row of Q-Link knobs on the screen, tap one of these tabs to select the type of parameters you want
to control with the Q-Link knobs:
Mixer: general mixer parameters
Program: program parameters
Insert 1–4: parameters for its program insert effects
Use the Type selector to determine whether the Q-Link knobs will control the parameters of the entire program
(Program) or for a single pad (Pad).
To select a program, use the Track field at the top of the screen to select a track that uses it. The program
name will appear in the Program field next to the top row of Q-Link knobs on the screen.
To select a pad (if Type is set to Pad), use the Pad field.
Use the Parameter field to select the parameter you want to control with the Q-Link knobs.
When Type is set to Program:
Mixer: Off, Volume, Pan, Mute, Solo, Send 1–4
Program: Off, Global Semi Tune, Global Fine Tune
Insert 1–4: Off, other available parameters depend on the effect

Akai MPC Live Specifications

General

Built-in display	Yes
Mixer section	-
Product color	Black
Number of drum pads	16
Built-in optical drive	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio (L/R) out	2
Headphone outputs	1
USB connector type	USB Type-A, USB Type-B
USB ports quantity	3
Headphone connectivity	3.5 mm
Cables included	USB

Weight and Dimensions

Depth	223 mm
Width	410 mm
Height	67.5 mm
Weight	2721.55 g
