35

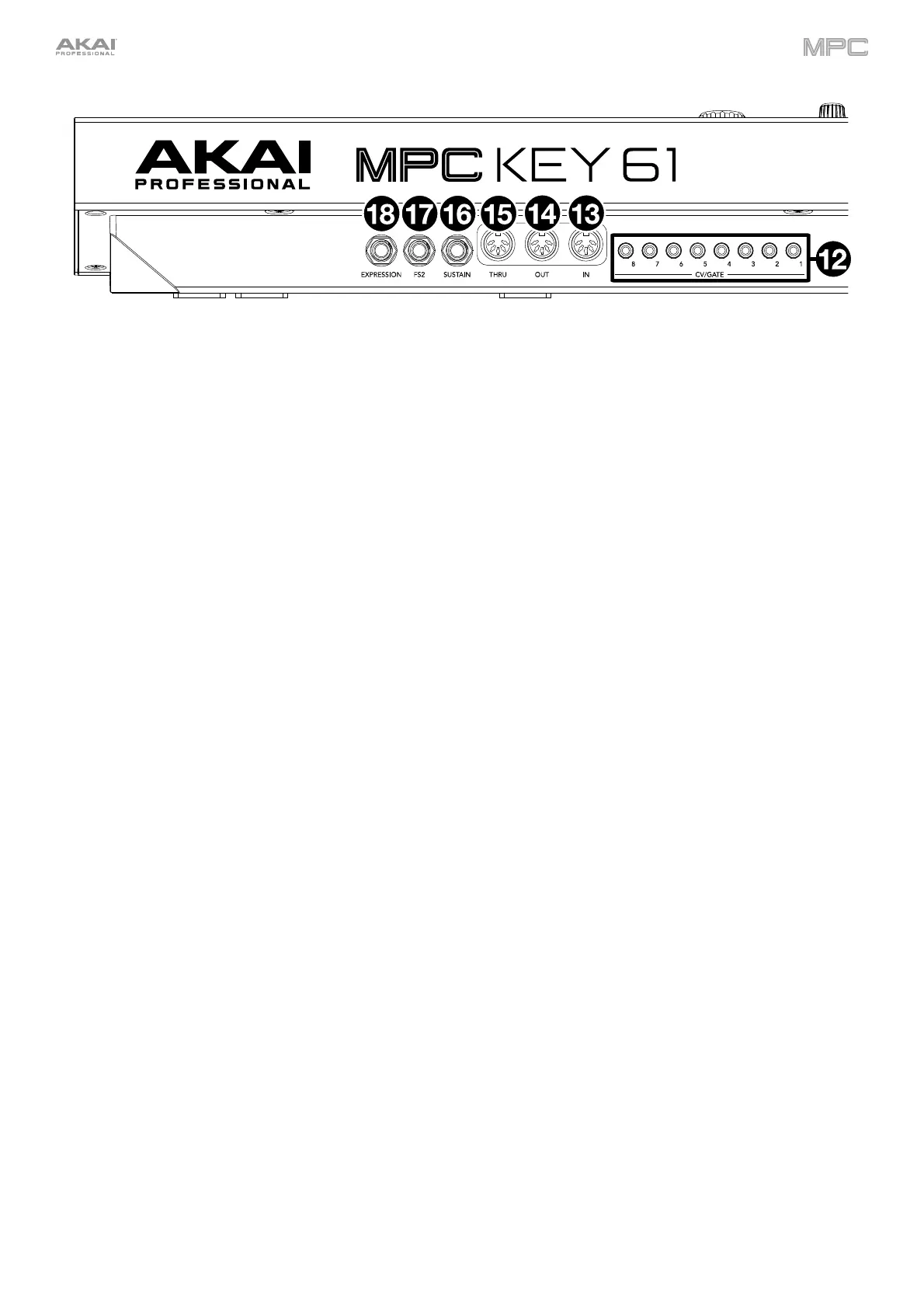

12. CV/Gate Out (1/8" / 3.5 mm, TS): MPC Key 61 will send control voltage (CV) and/or Gate signals over these
outputs to optional external synths or sequencers. Use standard 1/8” (3.5 mm) TS cables to send a single
CV/Gate signal per output.
13. MIDI In: Use a standard 5-pin MIDI cable to connect these inputs to the MIDI output of an external MIDI device
(additional MIDI keyboard, pad controller, etc.).
14. MIDI Out: Use a standard 5-pin MIDI cable to connect these outputs to the MIDI input of an external MIDI device
(synthesizer, drum machine, etc.).
15. MIDI Thru: Use a standard 5-pin MIDI cable to connect this thru-port to the MIDI input of an external MIDI
device (synthesizer, drum machine, etc.). MIDI from the MIDI In will be sent through this output.
16. Sustain (1/4" / 6.35 mm, TRS): This input accepts an optional momentary-contact foot pedal. When pressed, the
pedal will sustain the sound you are playing without having to keep your fingers pressed down on the keys.
17. FS2 (1/4" / 6.35 mm, TRS): Connect an optional 1/4" (6.35 mm) TRS footswitch or other foot pedal to this input.
18. Expression (1/4" / 6.35 mm, TRS): Connect an optional expression pedal to this input for adding expressive
changes during performances.
