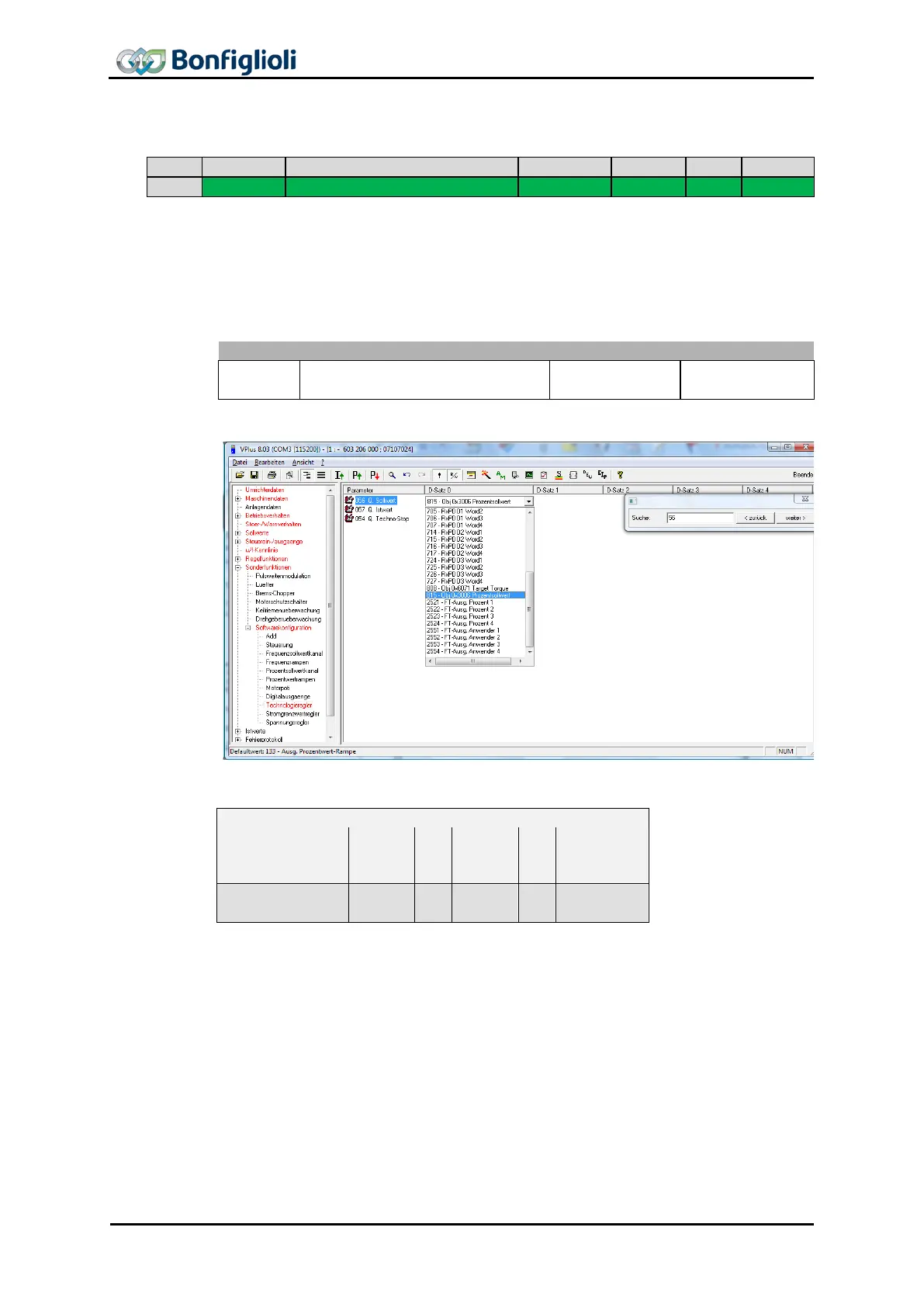

BONFIGLIOLI Vectron Active Cube User Manual

12.4.7 0x3006/0 Percentage set value
Index
Sub-index
Meaning
Data type
Access
Map
Def.-Val
0x3006
0
Percentage set value
Unsigned16
rw
Rx
0
Via object 0x3006 it is possible to write to a percentage source like parameter S. Ref-
erence Value 056.
The value of object 0x3006 is available as source which can be chosen by the sele
c-
tion of “815 - Obj 0x3006 Reference Percentage” from a parameters choice list.
The value of object 0x3006 is limited to -30000 to 30000 (corresponds to percentage
values -300.00 %...300.00 %).
No.
Object
Min.
Max.
0x3006/0
Percentage set value
-30000
(= 0x8AD0)
30000
(= 0x7530)
Example: Technology controller parameter S. Reference Value 056.
The percentage value is scaled as percent * 100 (e.g. 5678 represents 56.78%).
Example:
COB ID
CB
Index
SI
Data
Read Request
601
40
06 30
00
00 00
Reply
581
4B
06 30
00
05 00
Write Access
601
2B
06 30
00
20 00
Reply
581
60
06 30
00
00 00
CB: Control byte SI: Sub Index All values in hexadecimal without leading 0x
90 CM-CAN ACU 04/13
