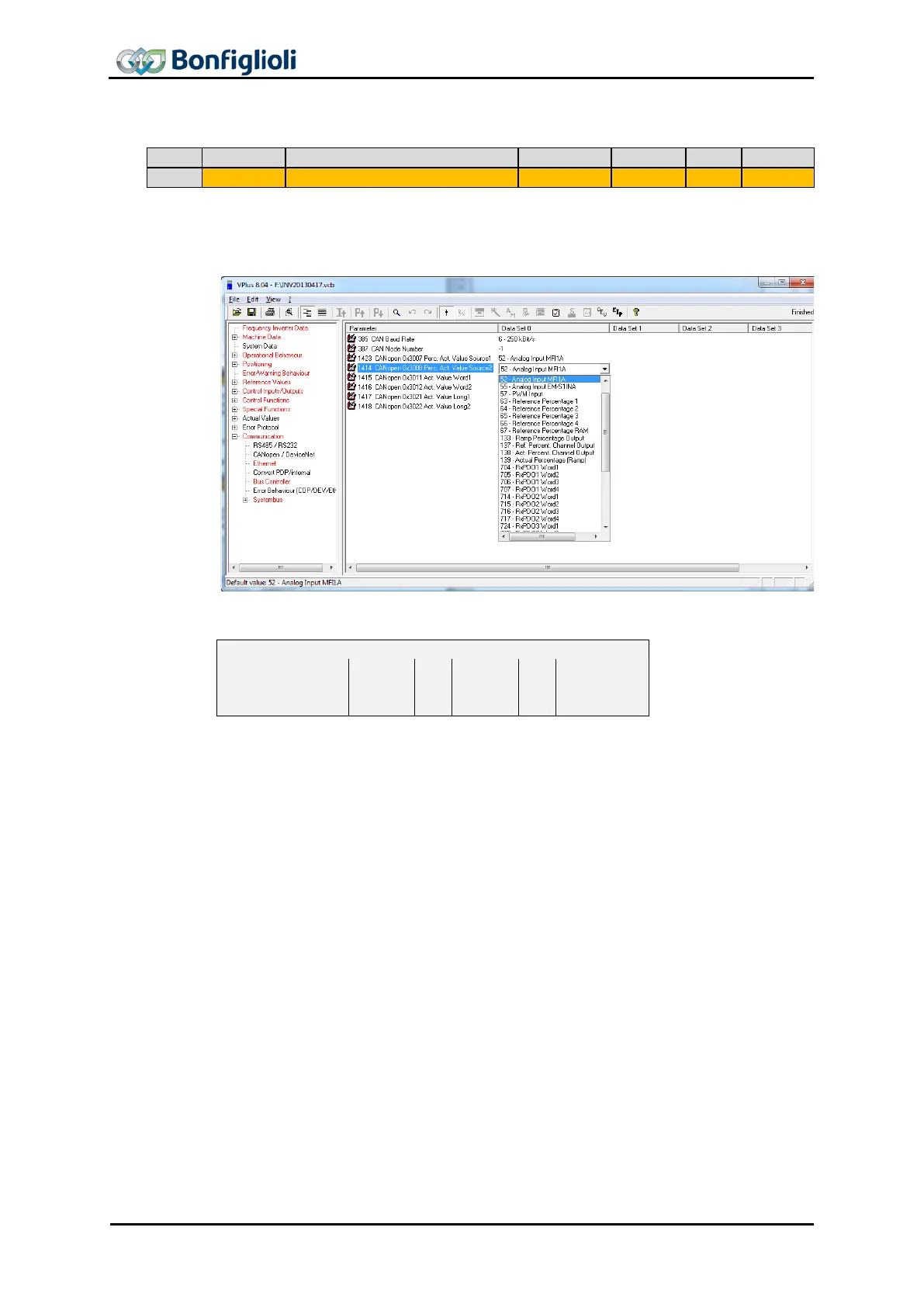

12.4.9 0x3008/0 Percentage actual value 2
Index
Sub-index
Meaning
Data type
Access
Map
Def.-Val
0x3008
0
Percentage actual value 2
Unsigned16
ro
Tx
Object 0x3008 displays the value of a percentage source which is selectable via pa-
rameter CANopen
®
Percentage Actual Value Source 2 1414.
Default source is 52 – Analog Input MFI1A.
The percentage value is scaled as percent * 100 (e.g. 5678 represents 56.78%).
Example:
COB ID
CB
Index
SI
Data
Read Request
601
40
08 30
00
00 00
Reply
581
4B
08 30
00
8F 13
CB: Control byte SI: Sub Index All values in hexadecimal without leading 0x
92 CM-CAN ACU 04/13
