12.4.14 0x3111/0 Ref. Value word 1
Index
Sub-index
Meaning
Data type
Access
Map
Def.-Val
0x3111
0
Ref. Value word 1
Unsigned16
rw
Rx
0
Via object 0x3111 it is possible to write to a Word source like parameter TxPDO1
Word 1 950 of the Systembus.
The value of object 0x3111 is available as source which can be chosen by the sele
c-
tion of “762 - CANopen 0x3111 Ref. Value
from a parameters choice list.

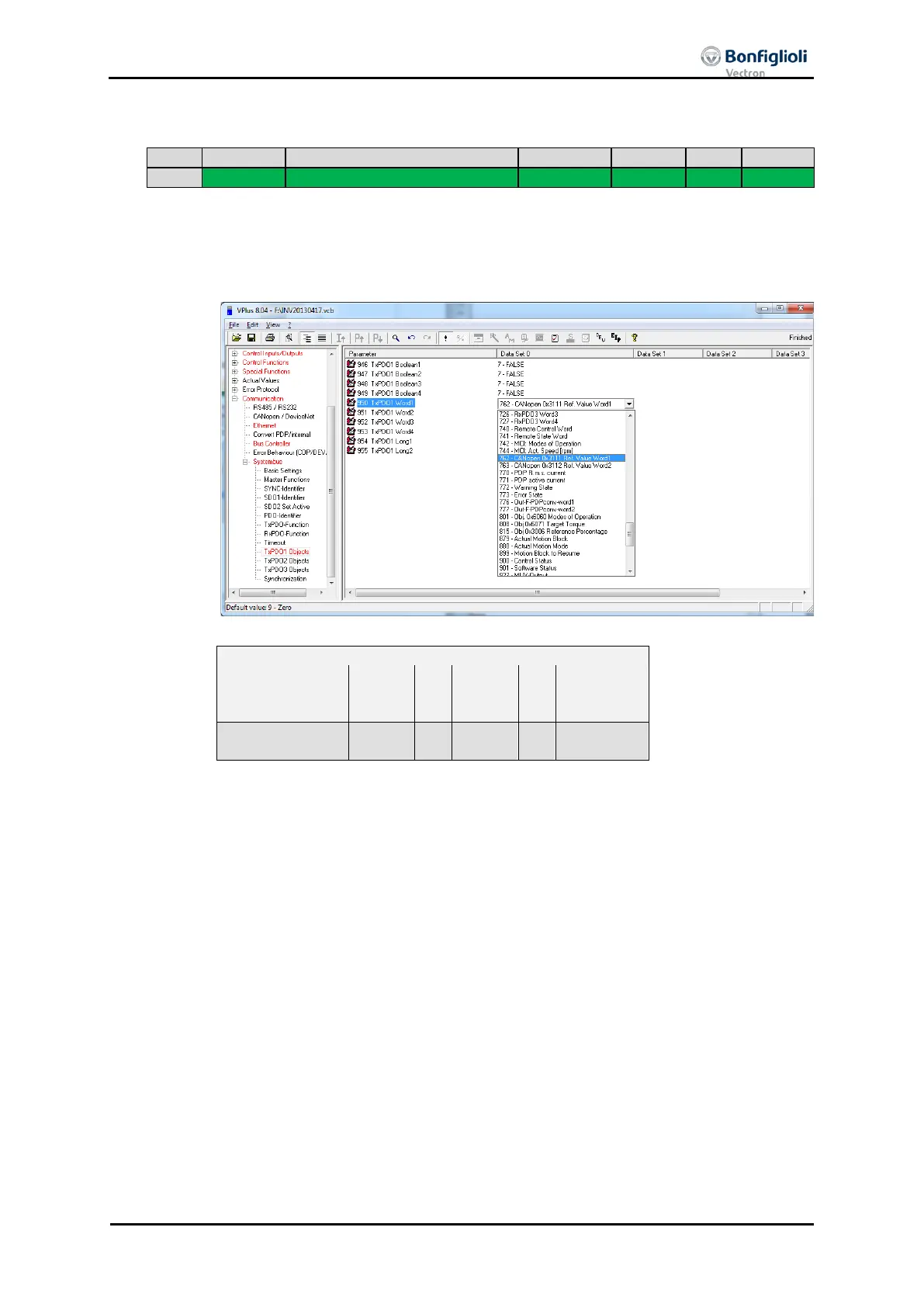

Example:
COB ID
CB
Index
SI
Data
Read Request
601
40
11 31
00
00 00
Reply
581
4B
11 31
00
05 00
Write Access
601
2B
11 31
00
20 00
Reply
581
60
11 31
00
00 00
CB: Control byte SI: Sub Index All values in hexadecimal without leading 0x
04/13 CM-CAN ACU 97
