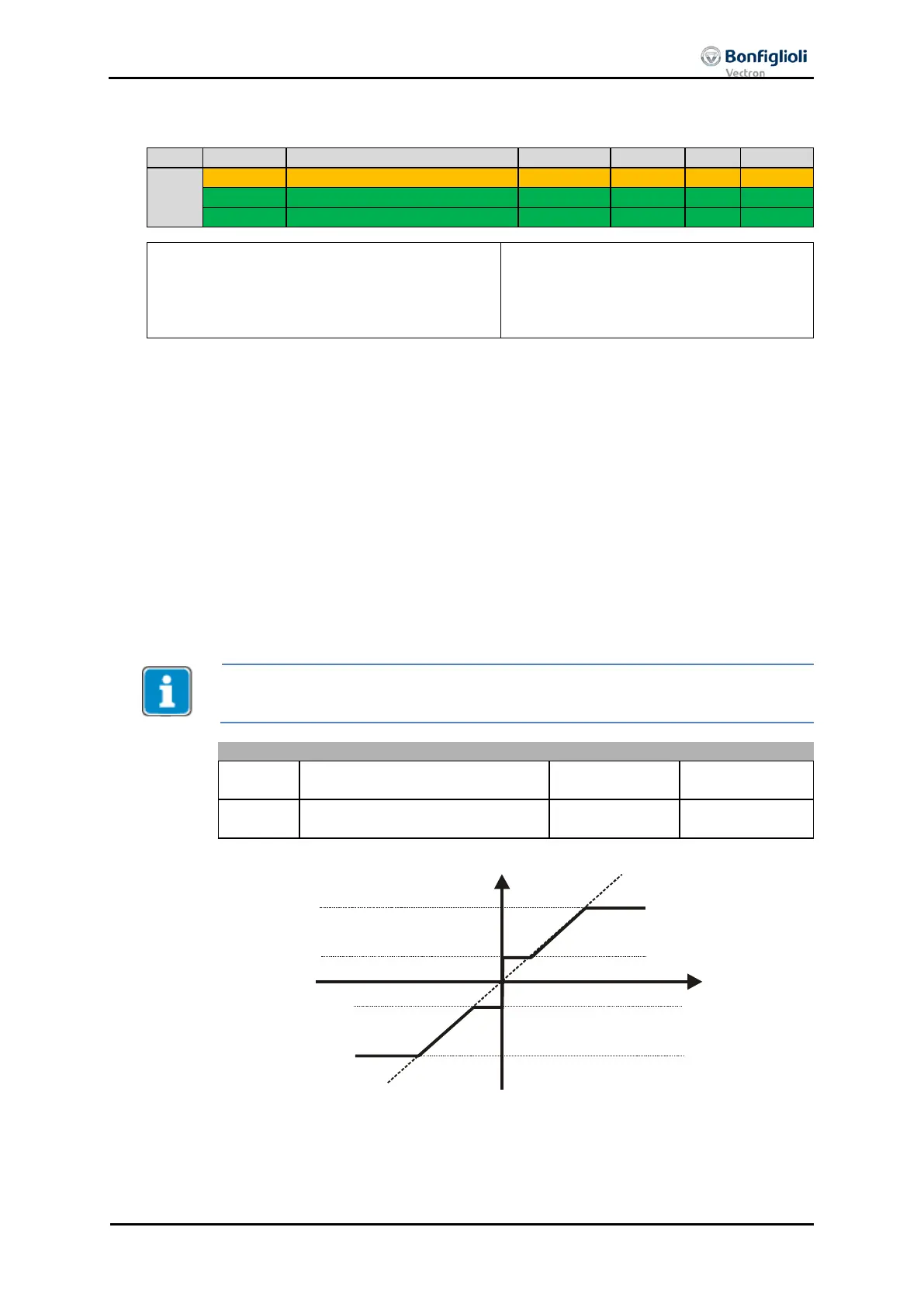

12.5.8 0x6046/n Velocity min max amount
Index
Sub-index
Meaning
Data type
Access
Map
Def.-Val
0x6046
0
Highest sub-index supported
Unsigned8
ro
No
2
1
Velocity min amount (RPM)
Unsigned32
rw
No
See text
2
Velocity max amount (RPM)
Unsigned32
rw
No
See text
Object works in:
• Motion Control:
o All modes
• Non motion Control (conf. ≠ x40)
Object doesn’t work in:
Object velocity min max amount comprises the sub-index 1 = velocity min amount
and sub-index 2 = velocity max amount.
The unit of 0x6046/1 velocity min amount is in RPM (positive values only). Writing to
object 0x6046/1 velocity min amount automatically
generates a write command to
parameter Minimum Frequency 418 into RAM (data set 5, all data sets in
RAM only).
The value of 0x6046/1 velocity min amount is converted internally to a frequency va
l-
ue, taking into account parameter
No. of Pole Pairs
373 (in data set 1 !).
The unit of 0x6046 velocity max amount is in RPM (positive values only). Writing to
object 0x6046/2 velocity max amount automatically
generates a write command to
parameter Maximum Frequency 419 into RAM (data set 5, all data sets in RAM only
).
The value of 0x6046/2 velocity max amount
is converted internally to a frequency
value, taking into account parameter No. of Pole Pairs 373 (in data set 1 !).
The default values depend on the used motor settings.
If the input reference value of object 0x6042 target velocity is less than the object
value 0x6046/1 velocity min amount or greater than 0x6046/2
velocity max amount ,
then 0x6042 target velocity is limited accordingly.
No.
Object
Min.
Max.
0x6046/1 Velocity min amount (RPM) 1
32767
(= 0x7FFF)
0x6046/2 Velocity max amount (RPM) 1
32767
(= 0x7FFF)
Velocity max amount
Velocity max amount
Velocity min amount
Velocity min amount
Output
Input
