12.4.8 0x3007/0 Percentage actual value 1
Index
Sub-index
Meaning
Data type
Access
Map
Def.-Val
0x3007
0
Percentage actual value 1
Unsigned16
ro
Tx

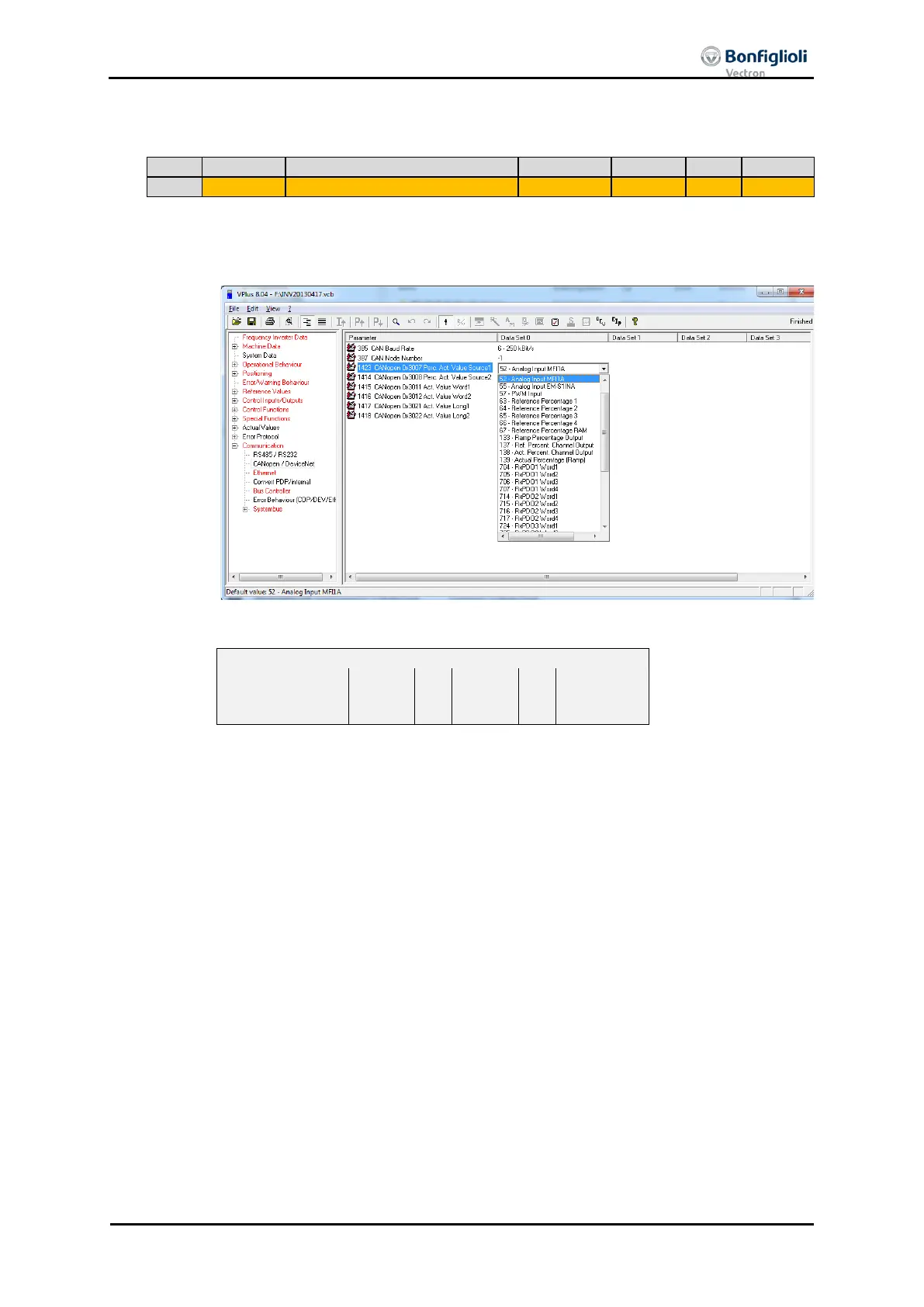

Object 0x3007 displays the value of a percentage source which is selectable via pa-
rameter CANopen
®
Percentage Actual Value Source 1423.
Default source is 52 – Analog Input MFI1A.
The percentage value is scaled as percent * 100 (e.g. 5678 represents 56.78%).
Example:
COB ID
CB
Index
SI
Data
Read Request
601
40
07 30
00
00 00
Reply
581
4B
07 30
00
8F 13
CB: Control byte SI: Sub Index All values in hexadecimal without leading 0x
