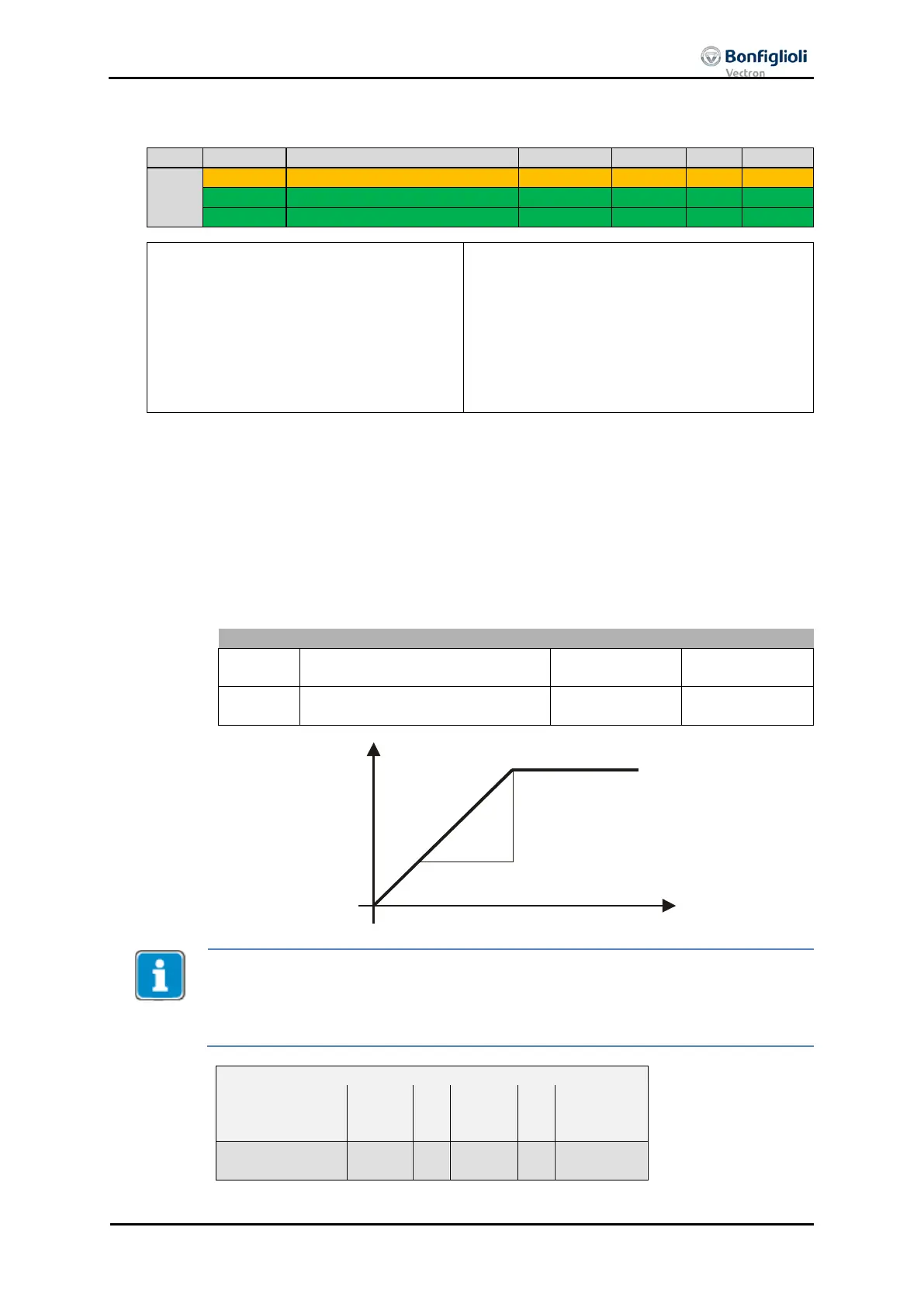

12.5.9 0x6048/n Velocity acceleration
Highest sub-index supported
• Motion Control:
o Velocity mode
• Non motion Control (conf. ≠ x40)
• Motion Control:
o Table Travel record mode
o Profile Positioning mode
o Profile Velocity mode
o Homing mode
o Interpolated mode
o Move away from Limit Switch
The acceleration in velocity mode is set with object
velocity acceleration
. The object
velocity acceleration
consists of
delta speed
in RPM and
delta time
in seconds.
The gradient of the frequency in the acceleration period is written to parameters Ac-
celeration (clockwise) 420 and Acceleration (anti-clockwise) 422
data sets in RAM only !). Both parameters are set to the same value.
The values of p.420 and p.422 are converted internally to a frequency/sec value, ta
k-
ing into account parameter No. of Pole Pairs 373 (in data set 1 !).
The gradient is changed internally by altering the objects delta time or delta speed.
0x6048/1 Delta speed (RPM) 1
0x6048/2 Delta time (sec) 1
delta speed
delta time
time
speed
If objects 0x6048/1 or 0x6048/2 were written and then a save parameters command
(object 0x1010
) processed, the object values are stored in non volatile memory. After
the next power on of the inverter, the previously set values are reactivated and ove
write the settings of parameters Acceleration Clockwise 420 und Acceleration Cou
CB: Control byte SI: Sub Index All values in hexadecimal without leading 0x
04/13 CM-CAN ACU 121
