14.1 Control via digital inputs/remote digital inputs
In the operation mode Control via Contacts or Control via Remote-Contacts (parame-
ter Local/Remote 412 = 0 or 2), the frequency inverter is controlled via the
digital
inputs S1IND (STOA AND STOB), S2IND to EM-S3IND directly,
or by digital input
emulation with help of the individual bits in the Control word
. The meaning of these
inputs can be taken from the operating instructions.

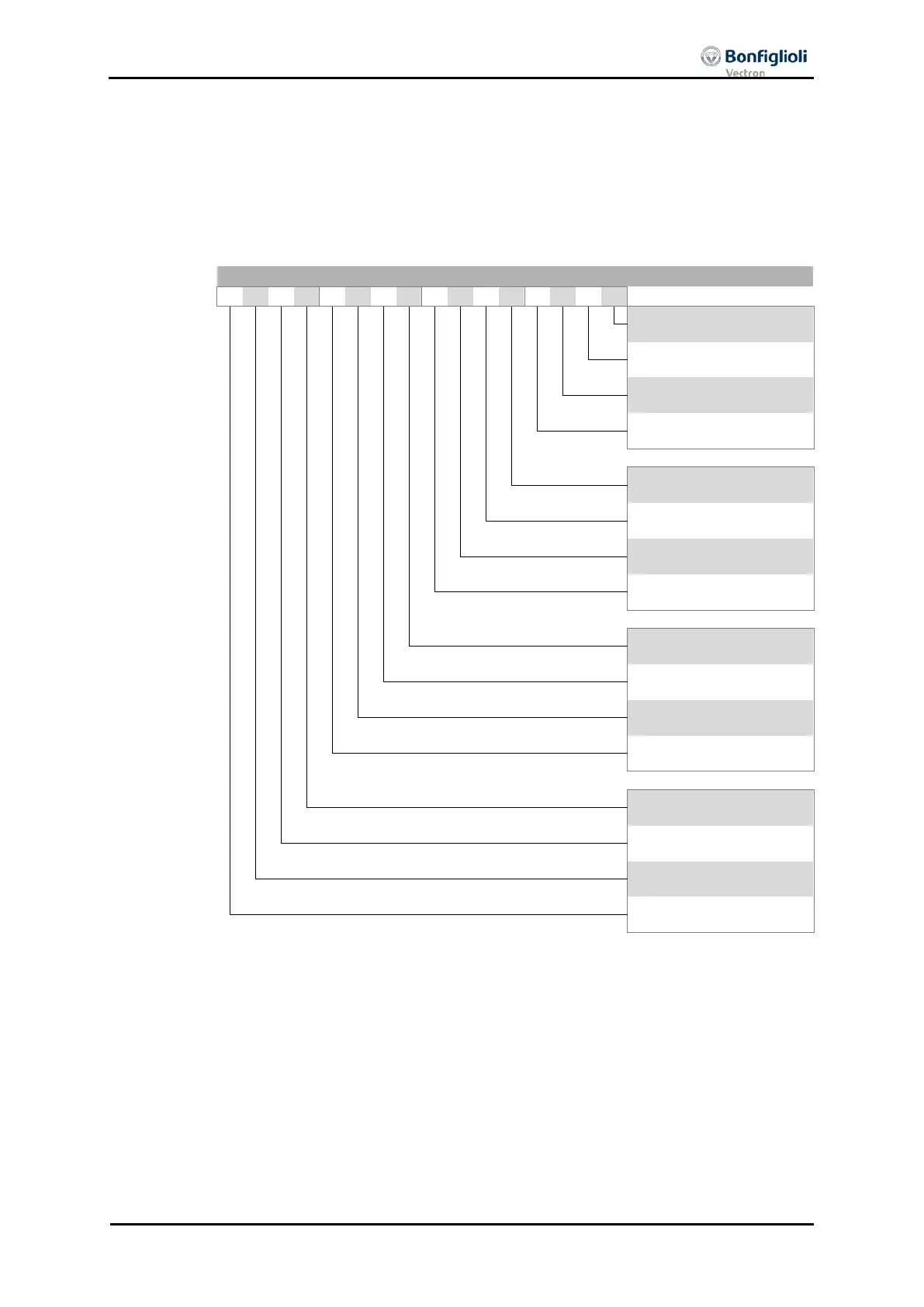

Control word (Local/Remote 412 = 2)
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Bit
0
S1IND (=STOA and STOB)
1
S2IND
2
S3IND
3
S4IND
4
S5IND
5
S6IND
6
MFI1D
7
EM-S1IND
8
EM-S2IND
9
EM-S3IND
10
-
11
-
12
-
13
-
14
-
15
-
04/13 CM-CAN ACU 165
