BST CCD CAM 100 - Page 177

To Next Page

To Previous Page

Operation

CCD CAM 100 – Installation and Operating Manual 177/198

Material strip 1 Material strip 2Light box

Search direction

Video curve

Camera measuring range

(30.000 pixels)

[Pixels]

bright

dark

Video curve

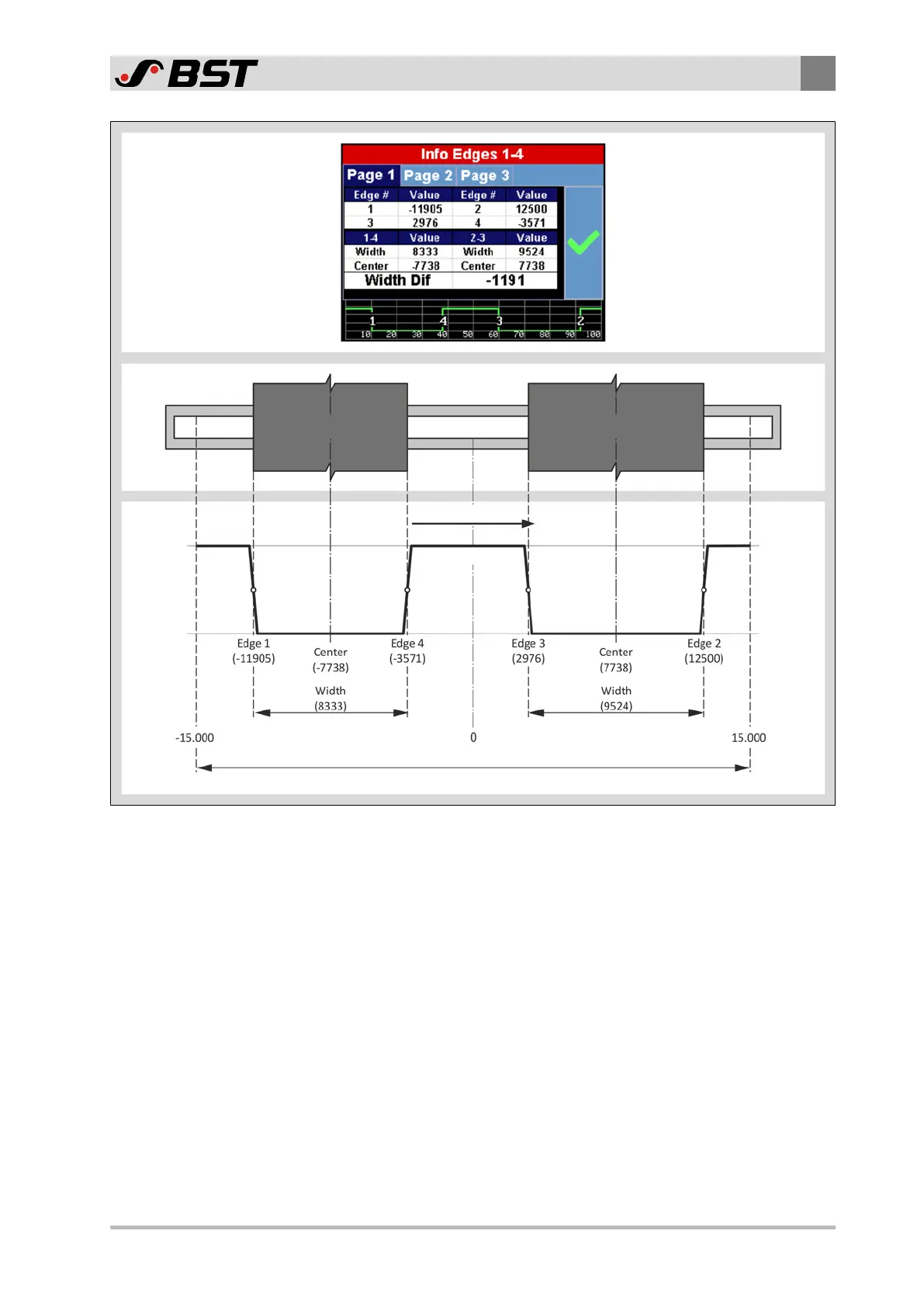

Fig.120: Example for the display of edge information
