7.2.3 CDM-570L Menu Tree and Splash Page

The options available through the CDM-570L Base Modem HTTP Interface are illustrated via the

following menu tree:

Home Admin Config Mdm Stats Maint

Home Access Modem Modem Status Unit Info

Contact Remote Modem Utilities Modem Logs

Support AUPC

BUC*

LNB*

Beyond the top-level row of navigation tabs (shown in blue), the diagram illustrates the available

nested hyperlinks (shown in grey) that affords more specific functionality.

*The ‘BUC’ and ‘LNB’ hyperlinks found under the ‘Config Mdm’ tab are

accessible only when a BUC (Block Up Converter) or LNB (Low-Noise Block

Down Converter) is connected to the CDM-570L. These pages are fully defined in

Appendix L. CDM-570L ODU (BUC

OR LNB) OPERATION.

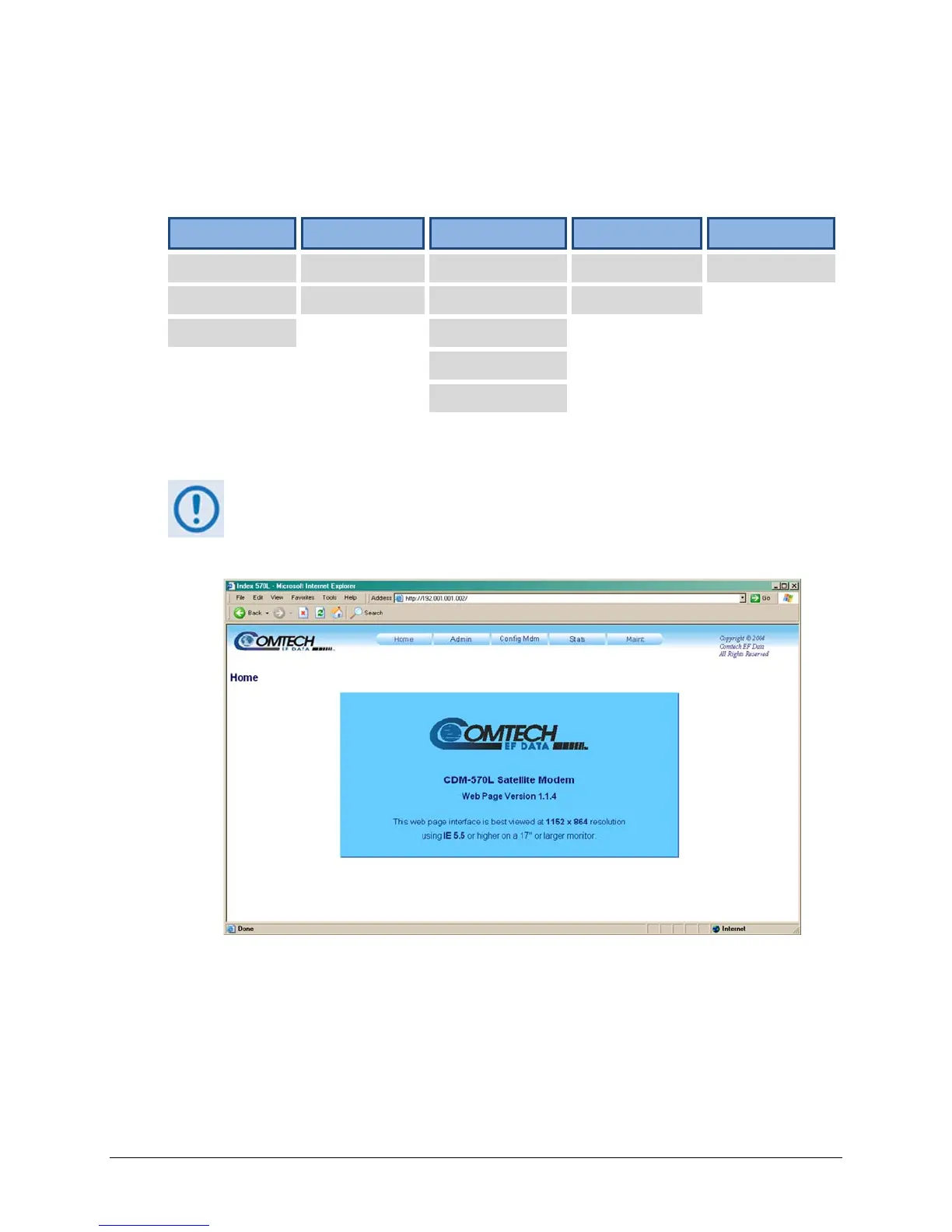

Figure 7-2. CDM-570L “Splash” page
