CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM

14–37

14.2.8 Satellite Modem Page

Activate the Satellite Modem page by selecting Satellite Modem Configuration from the Main

Menu page.

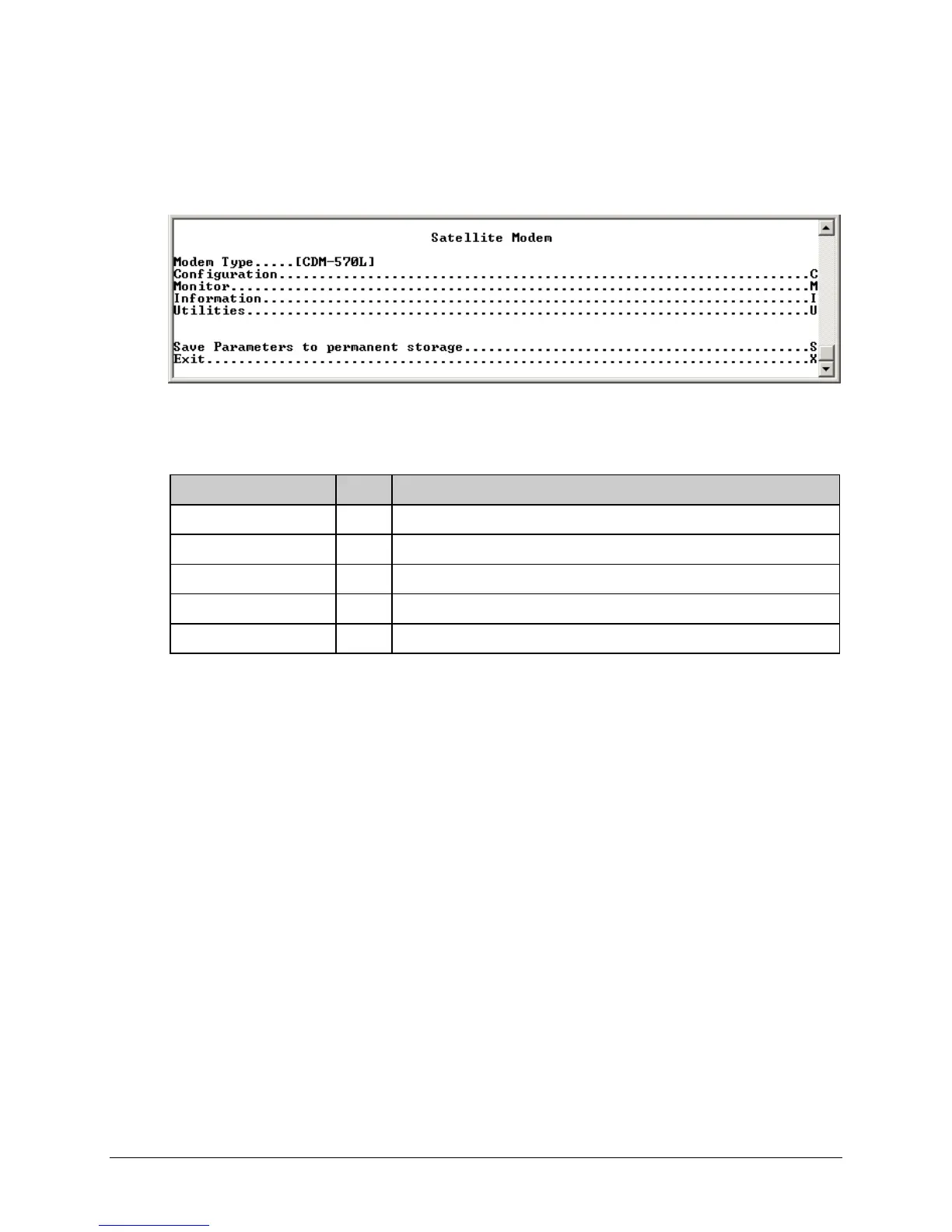

Figure 14-24. Modem Parameters Page

The Satellite Modem page contains the following options/fields:

Selection Entry Description

Modem Type [RO] Identifies the Modem type – CDM-570 or CDM-570L.

Configuration C Displays the Modem Configuration page.

Monitor M Displays the Modem Monitor page.

Information I Displays the Modem Information page.

Utilities U Displays the Modem Utilities page.
