Comtech EF Data CDM-570 - Figure 5-3. CDM-570;570 L Menu Tree (FW Ver. 1.6.15)

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Front Panel Operation MN/CDM570L.IOM

5–6

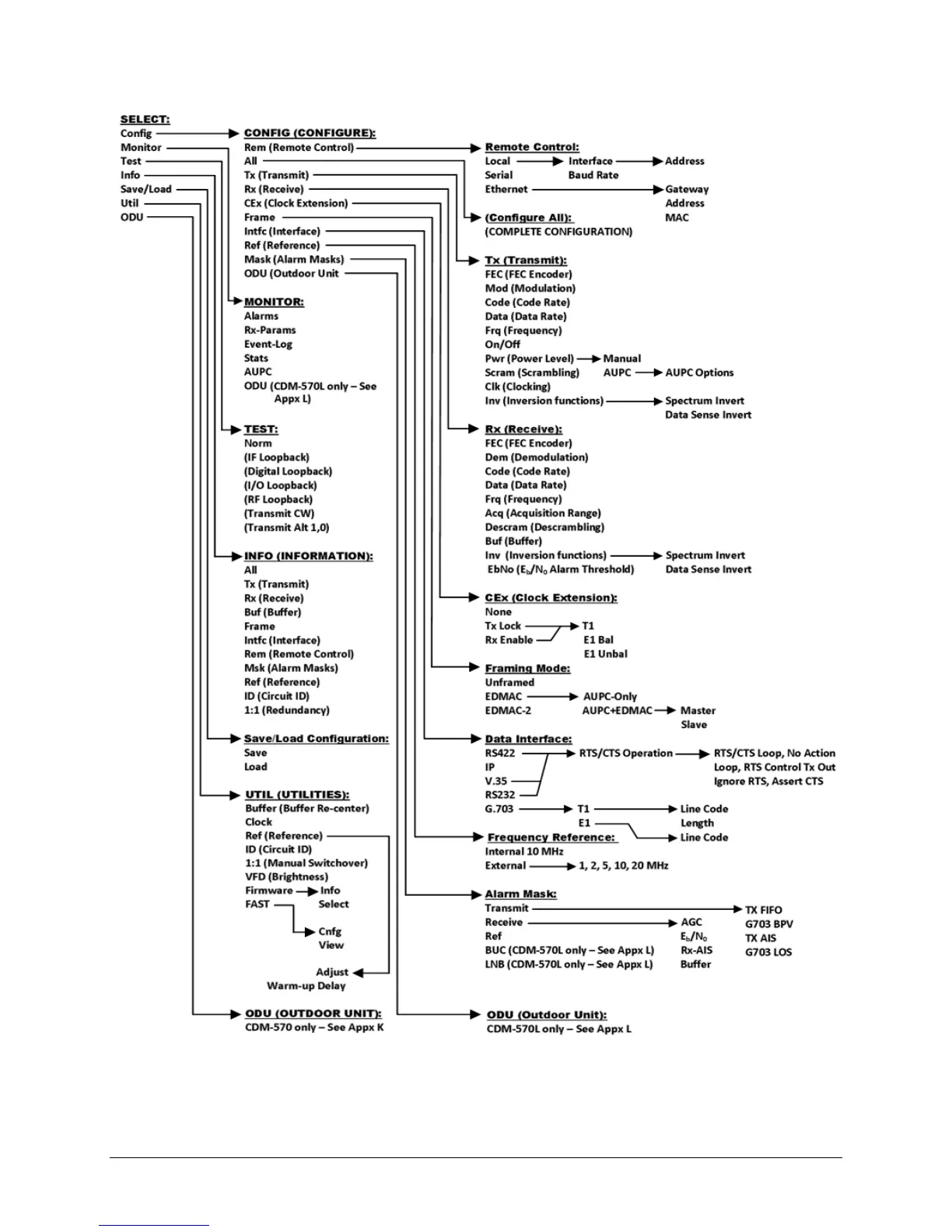

Figure 5-3. CDM-570/570L Menu Tree (FW Ver. 1.6.15)
