13.6.2.2.5 Admin | Remote

For details pertaining to the configuration parameters available on this page,

see Chapter 5. FRONT PANEL OPERATION and Sect. 6.4 SNMP INTERFACE.

This page is available only if you have logged in using the Administrator Name

and Password.

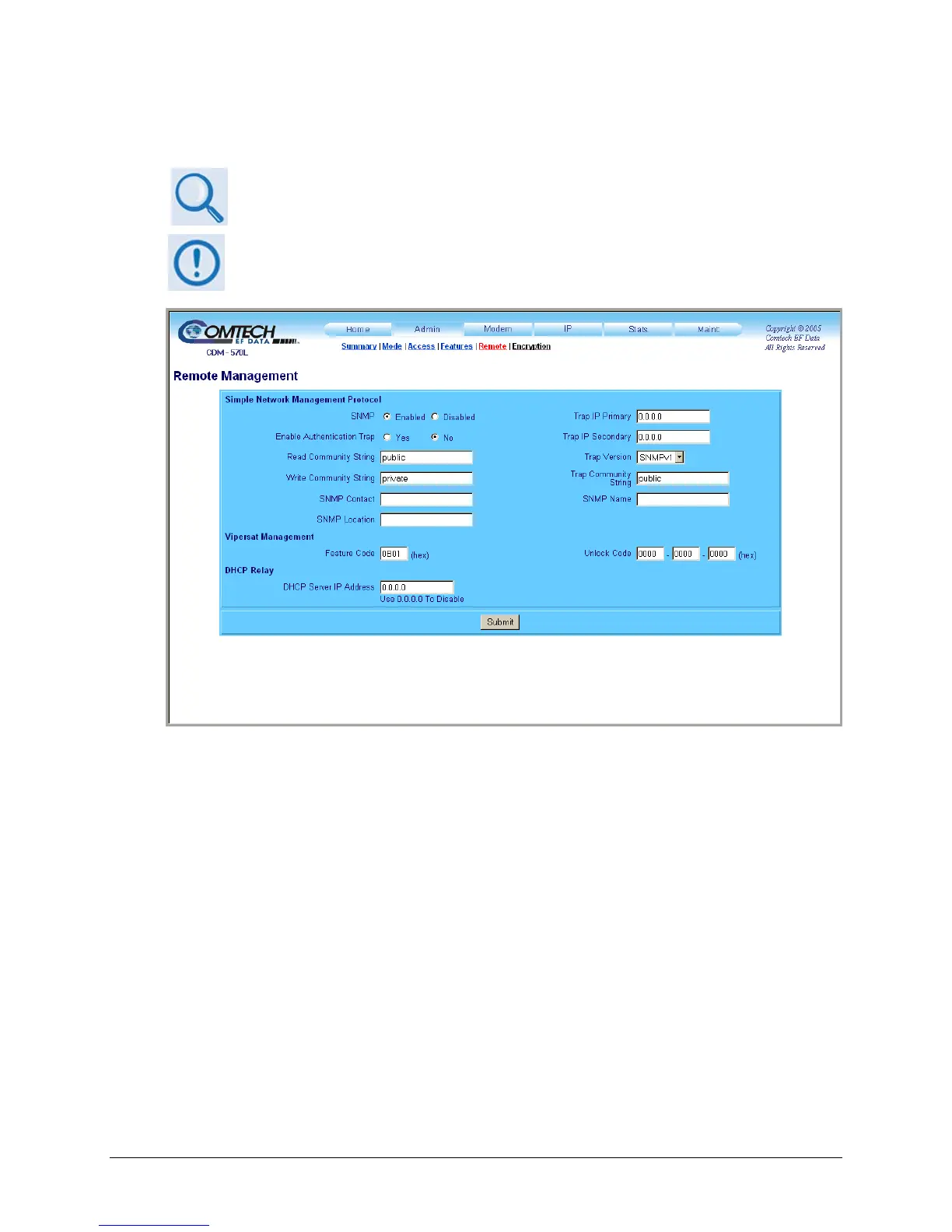

Figure 13-11. Admin | Remote page

Use this page to set and returns administration information for:

• The Simple Network Management Protocol (SNMP) feature

• The Feature and Unlock codes for Vipersat Management

• The IP address of the DHCP Server

Click [Submit] to save changes made to this page.
