Comtech EF Data CDM-570 - Figure 14-44. CPU Statistics Page; Figure 14-45. VLAN Statistics Page; CPU Statistics; VLAN Statistics

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM

14–63

14.2.11.2.6 CPU Statistics

Activate the CPU Statistics page from the Statistics Menu page. This page displays IP Module

CPU Utilization as a percentage(%).

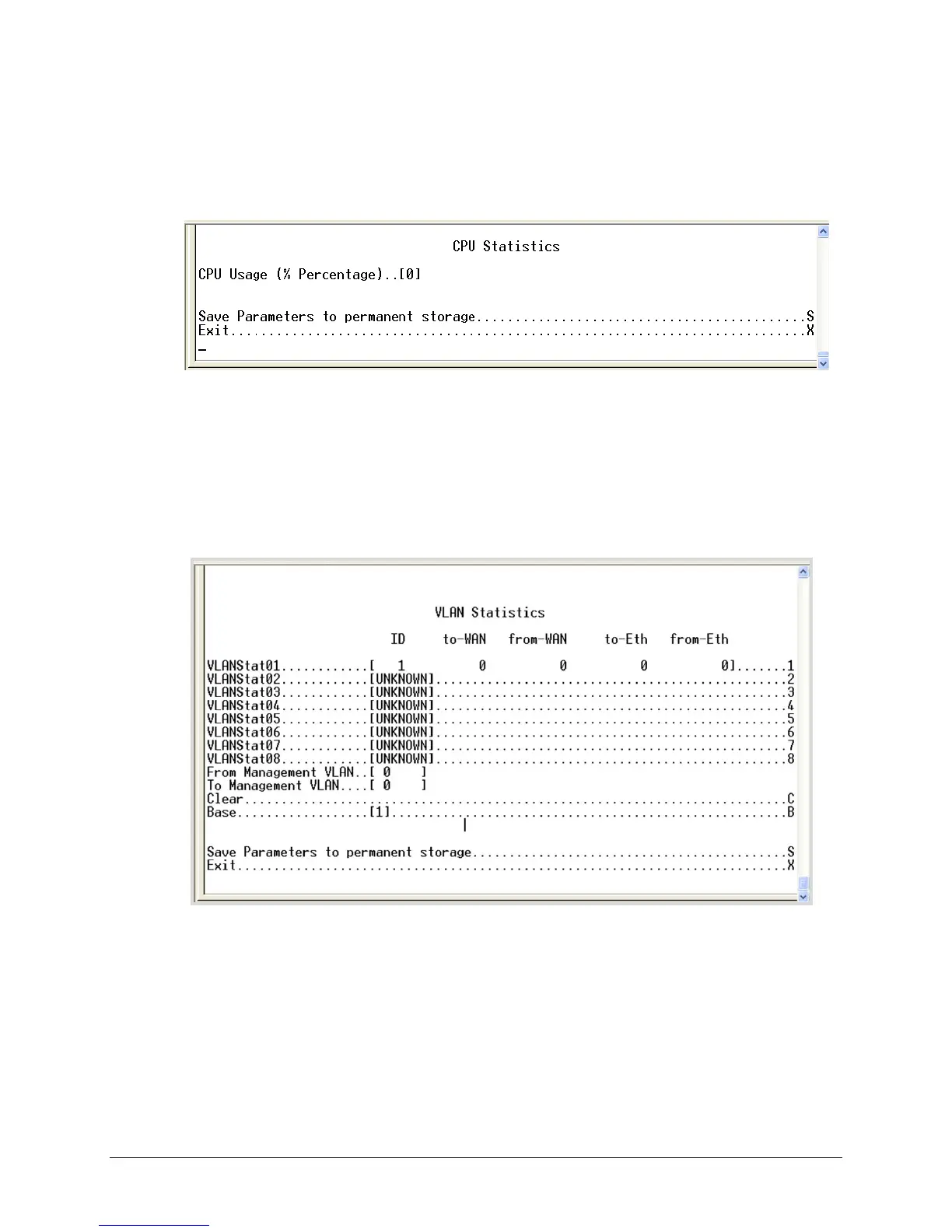

Figure 14-44. CPU Statistics page

14.2.11.2.7 VLAN Statistics

Activate the VLAN Statistics page from the Statistics Menu page. This page displays VLAN

packets to and from the WAN (satellite) and to and from Ethernet (LAN) by VLAN ID. It also

displays VLAN packets to and from the Management VLAN of the IP Module.

Figure 14-45. VLAN Statistics page
