CDM-570/570L Satellite Modem with Optional IP Module Revision 12
Ethernet IP Module Interface MN/CDM570L.IOM
13–42
13.6.2.4.3 IP | Multicast

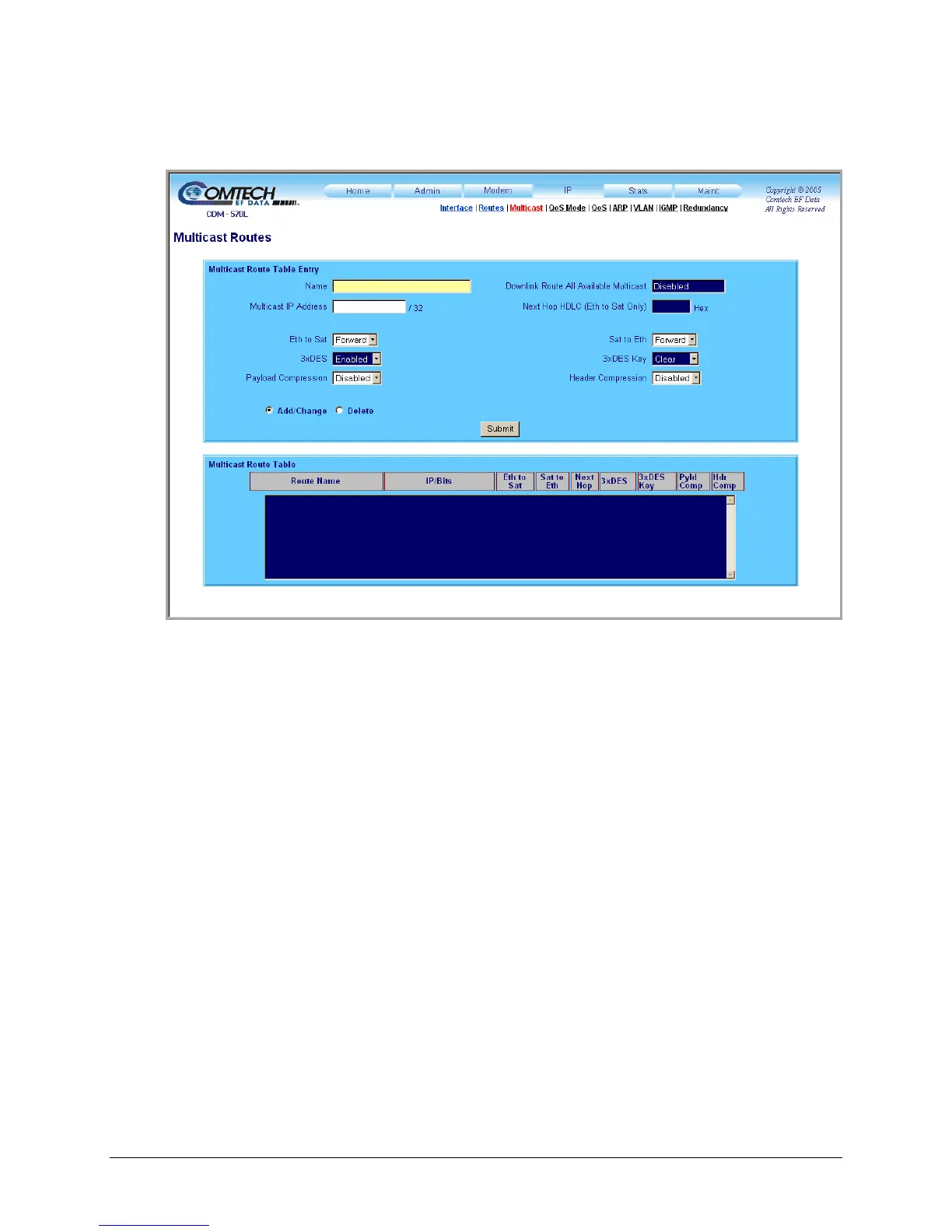

Figure 13-19. IP | Multicast page
Use this page to enter multicast routes into the IP
Module for routing multicast IP traffic over the
satellite or to another device on the local LAN.
Multicast Route Table Entry
• Name – String label provided to help users maintain their network. The assigned name
cannot contain any whitespace and must be unique.
• Downlink Route All Available Multicast (read-only) – Displays if this feature is Enabled
or Disabled.
• Multicast IP Address – Parameters used to define the route to the destination network.
• Next Hop HDLC (Eth to Sat Only) (read-only) – Displays the desired Next Hop HDLC IP
Address for traffic to be sent over the satellite, within the following ranges:
o Point-to-Point: No HDLC address
o Small Network: 0x1 – 0xFE
o Large Network: 0x1 – 0xFFFE
