K.3.3.1.2 (SELECT:) ODU – KST-2000A/B Transceiver Operation

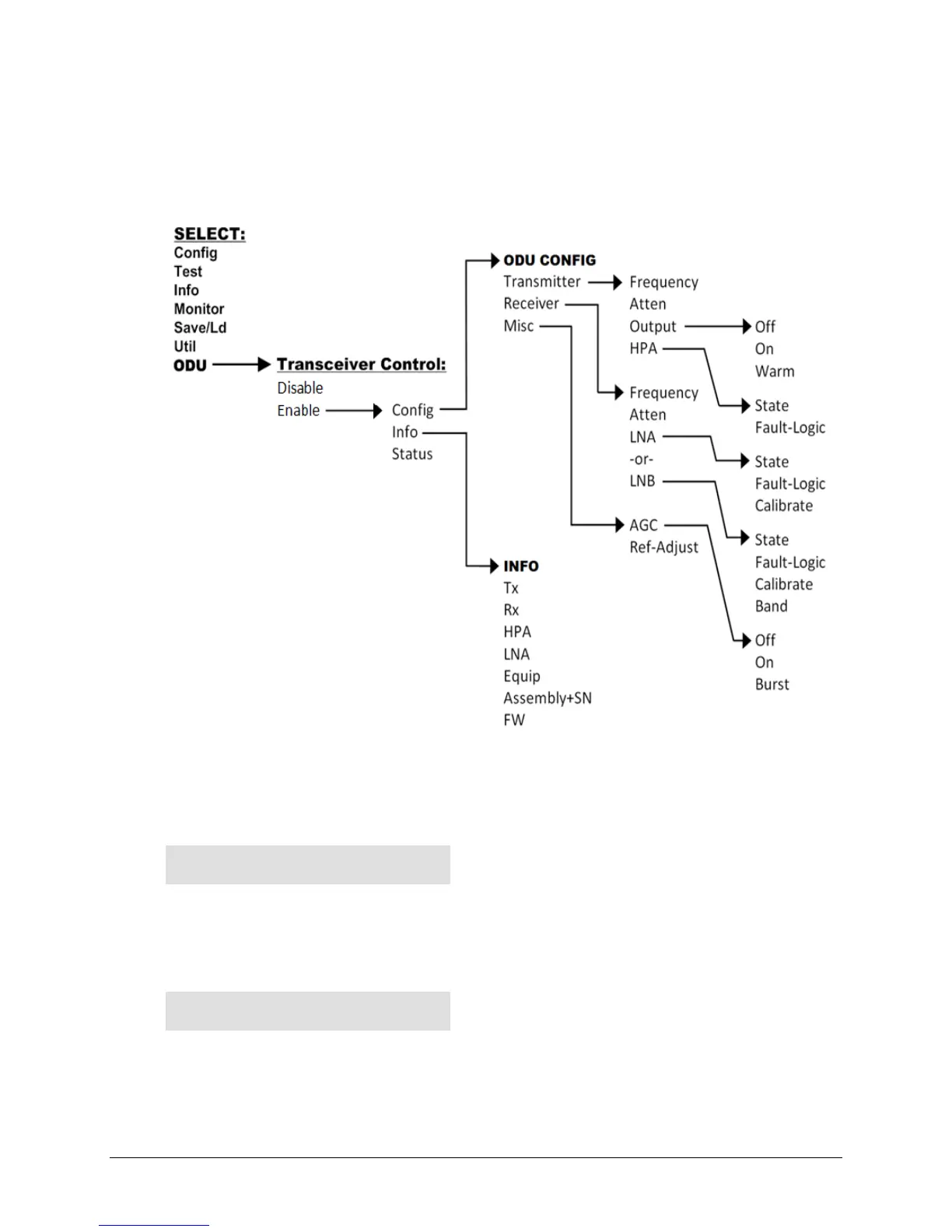

Figure K-4 identifies the basic CDM-570 front panel menu hierarchy as it pertains specifically to
operation of the KST-2000A or KST-2000B ODU.
Figure K-4. ODU: KST-2000A/B Transceiver Menu Tree
K.3.3.1.2.1 ODU (Transceiver Control): Enable
KST SELECT: Config Info
Status (◄ ►,ENT)
Use the ◄ ► arrow keys to select Config, Info, or Status, and then press ENTER.
K.3.3.1.2.1.1 (ODU) Enable: Config (KST Configuration)
KST CONFIG: Transmitter
Receiver Misc (◄ ►,ENT)
Use the ◄ ► arrow keys to select Transmitter, Receiver, or Misc, and then press ENTER.
