Comtech EF Data CDM-570 - Figure L-2. CDM-570 L Menu Tree

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Appendix L MN/CDM570L.IOM

L–3

L.3.2 CDM-570L Front Panel Operation – ODU Menu Hierarchy

Figure L-2 identifies the CDM-570L front panel menu hierarchies allocated to the configuration,

monitor and control of a BUC or LNB. More specifically, menu branches that incorporate

ODU

operations are shown in bold; menu content that is dedicated

to ODU operations is additionally

italicized.

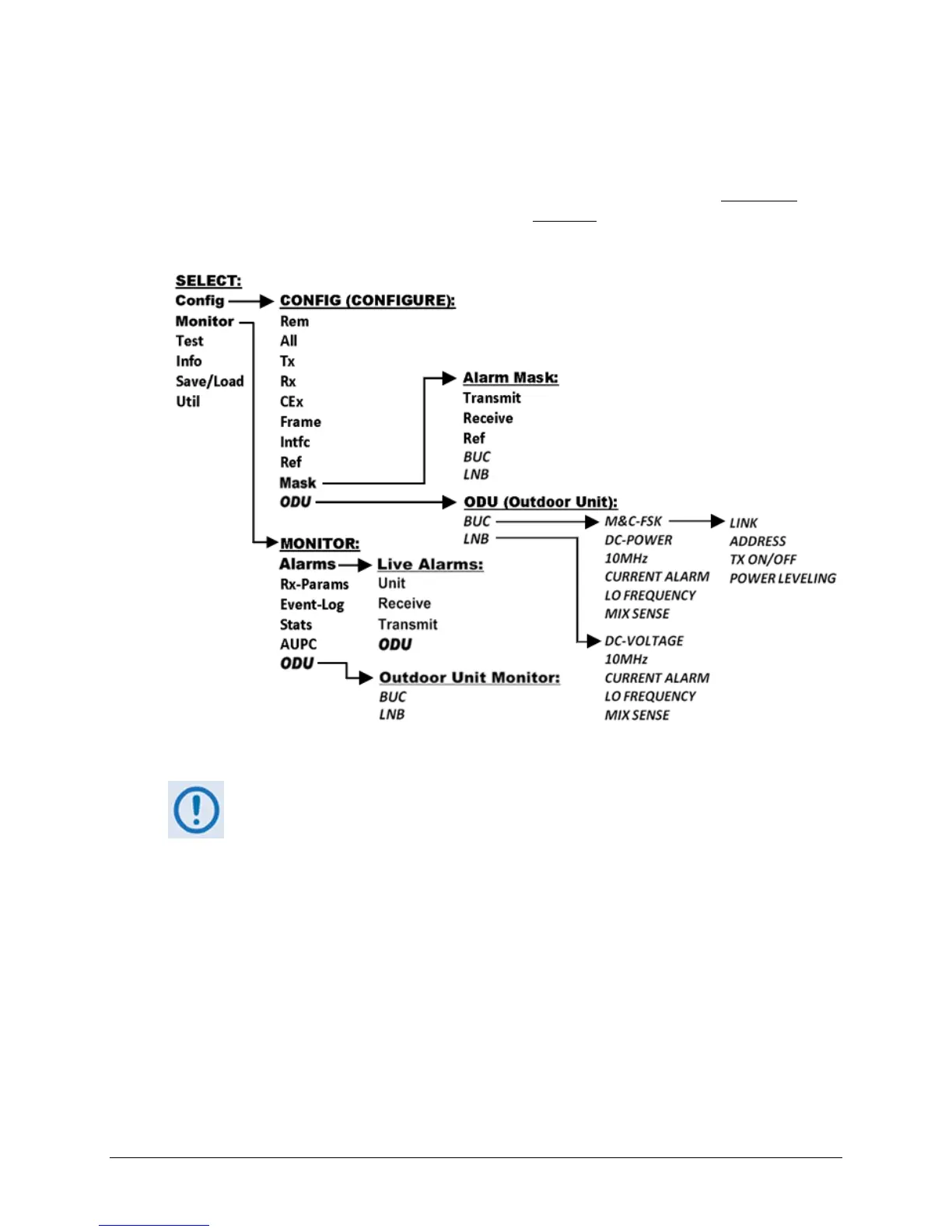

Figure L-2. CDM-570L Menu Tree – ODU Operation

The ODU menu branch is accessible from the CDM-570L front panel menu only

when the presence of an ODU is detected. Also note that, as this appendix

deals with strictly with ODU operations, Chapter 5. FRONT PANEL OPERATION

provides a complete overview for any CDM-570L menu operations or selections

not defined in this appendix.
