Comtech EF Data CDM-570 - Stats | Routes; Figure 13-30. Stats

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module Interface MN/CDM570L.IOM

13–57

13.6.2.5.2 Stats | Routes

Use this read-only page to view current operating statistics for IP packet routing on a

Sent/Received, Dropped, and Filtered basis. Click [Reset Stats] to view the most recent IP

Routing statistics.

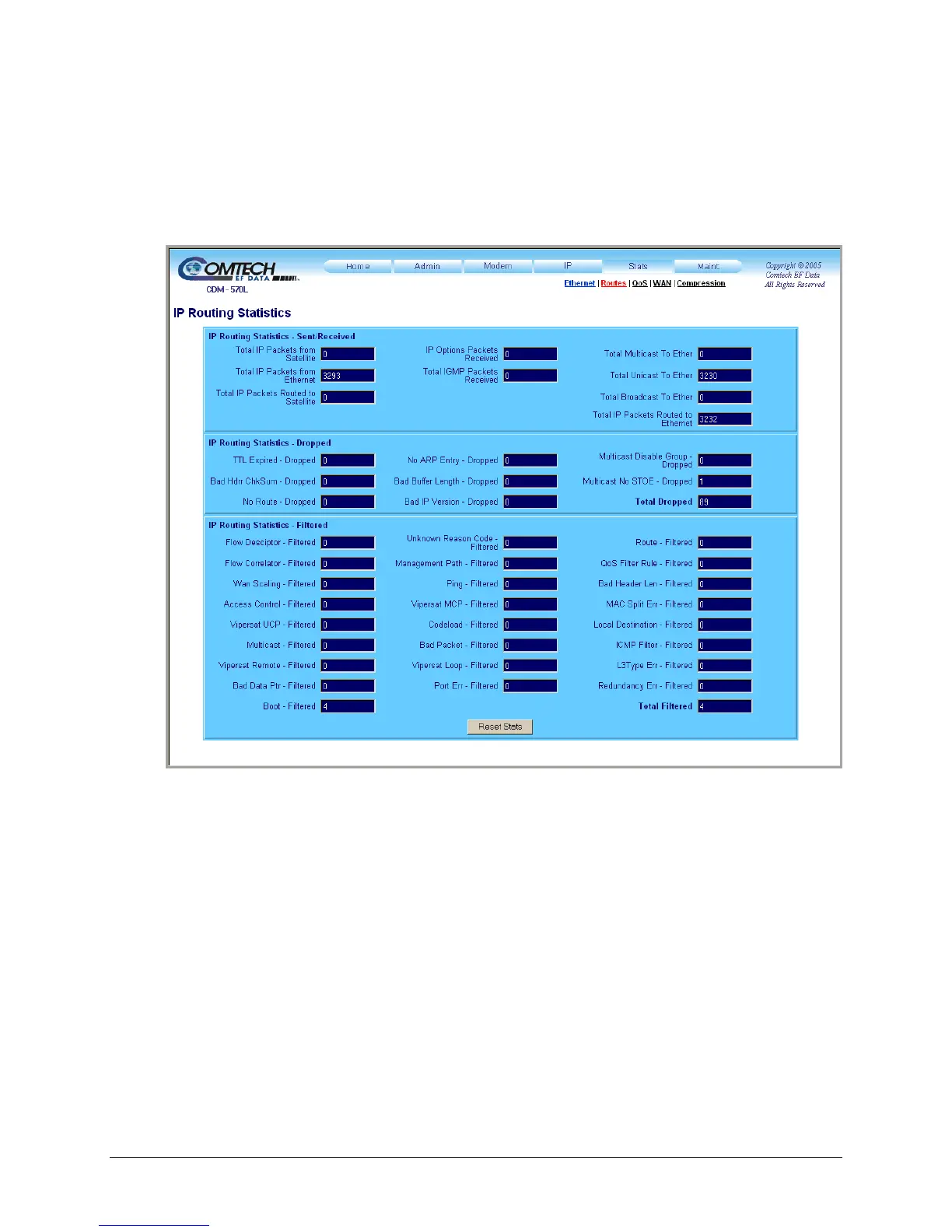

Figure 13-30. Stats | Routes page
