Comtech EF Data CDM-570 - Figure 14-19. Protocol Configuration Page; Protocol Configuration Page

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM

14–30

14.2.6 Protocol Configuration Page

Activate the Protocol Configuration Page from the Main Menu page.

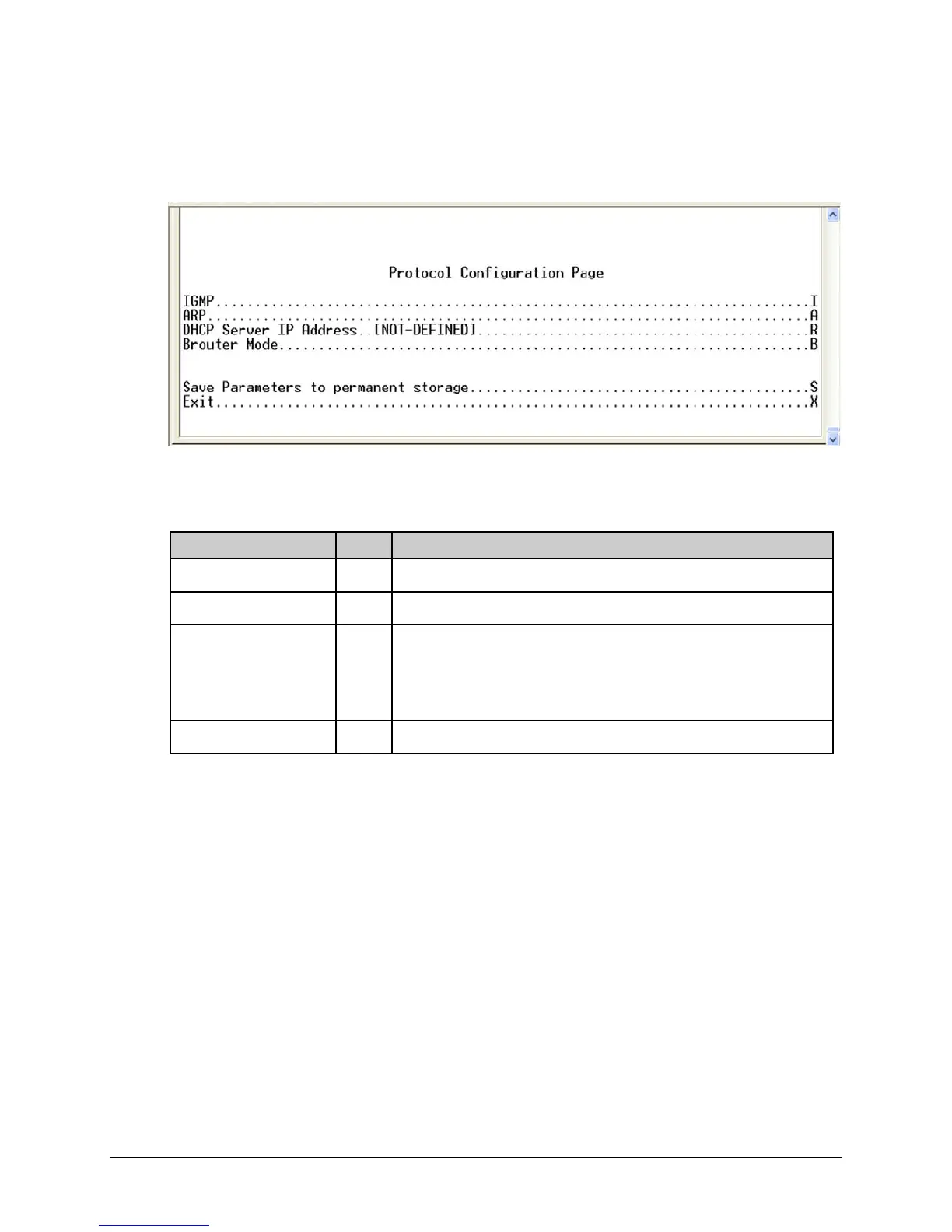

Figure 14-19. Protocol Configuration Page

The Protocol Configuration Page contains the following options/fields:

Selection Entry Description

IGMP I Displays the IGMP page.

ARP A Displays the ARP Table Utilities page.

DHCP Server IP Address R Allows entry of the DHCP server IP address.

Allows hosts on a remote LAN to send DHCP request packets to the

DHCP server so that the DHCP server can dynamically assign IP

addresses to remote hosts.

Brouter Mode B Displays the Brouter Configuration page.
