13.6.2 HTTP Interface Page Descriptions

13.6.2.1 Home Pages

Click the Home, Contact, Support, or Logoff hyperlink to continue.

13.6.2.1.1 Home | Home

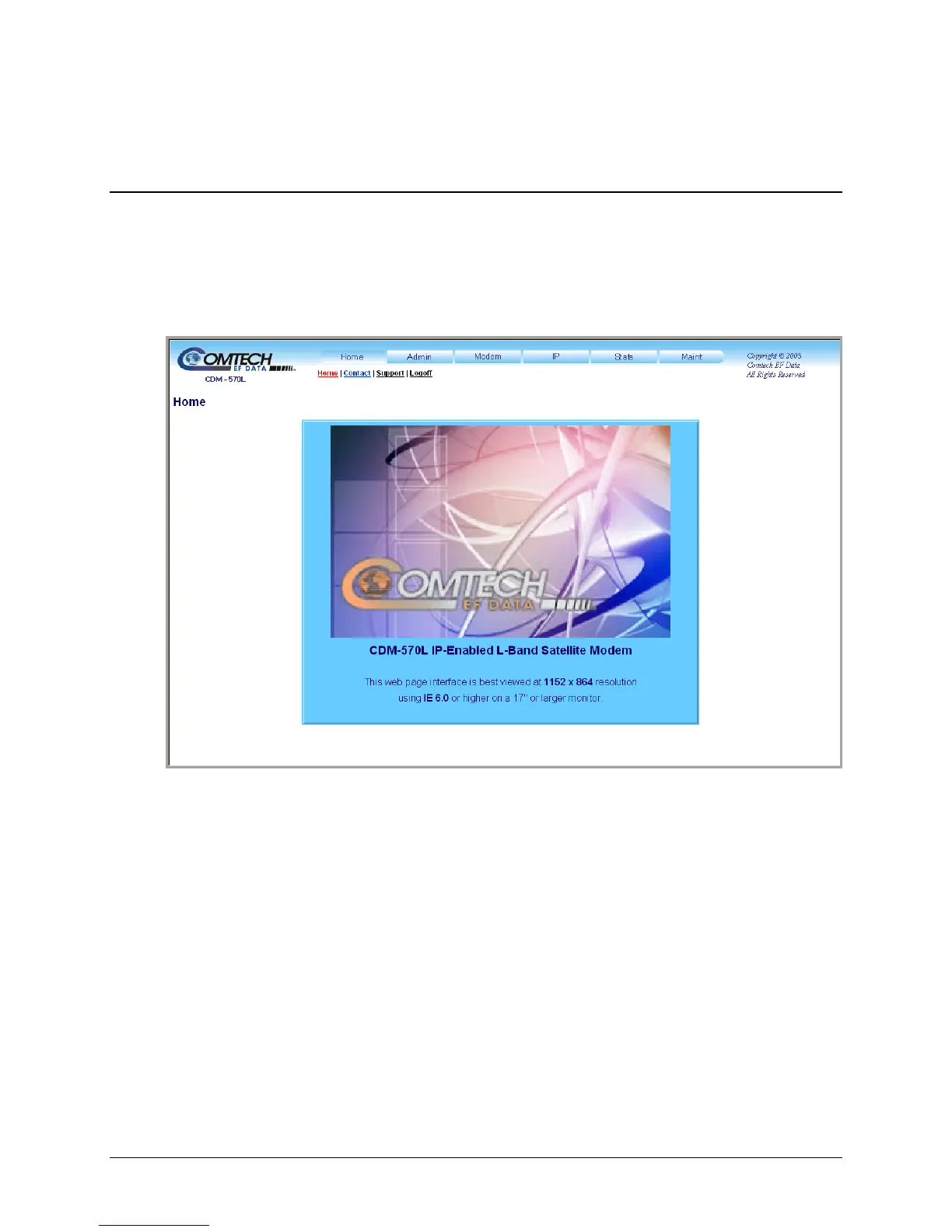

Figure 13-2. Home | Home Page

From any location within the IP Module HTTP Interface, select the Home tab and/or hyperlink to

return back to this top-level page.

Main Page
