Comtech EF Data CDM-570 - Installing the Optional Rear-Mounting Support Brackets Kit; Figure 2-3. Optional Rear-Mounting Support Brackets Kit Installation

CDM-570/570L Satellite Modem with Optional IP Module Revision 12
Installation and Startup MN/CDM570L.IOM
2–4
2.2.1 Installing the Optional Rear-Mounting Support Brackets Kit
Detail Description
1 Back of Unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
Item
Kit / Quantity
Part Number Description
KT/6228-2 KT/6228-3
1 2 2 HW/10-32SHLDR Shoulder Screw, #10
2 4 4 HW/10-32FLT Flat Washer, #10
3 2 2 HW/10-32SPLIT Lock Washer, #10
4 2 2 HW/10-32HEXNUT Hex Nut, #10
5 4 4 HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
6
2 – FP/6138-2 Bracket, Rear Support – 4”
– 2 FP/6138-3 Bracket, Rear Support – 10”

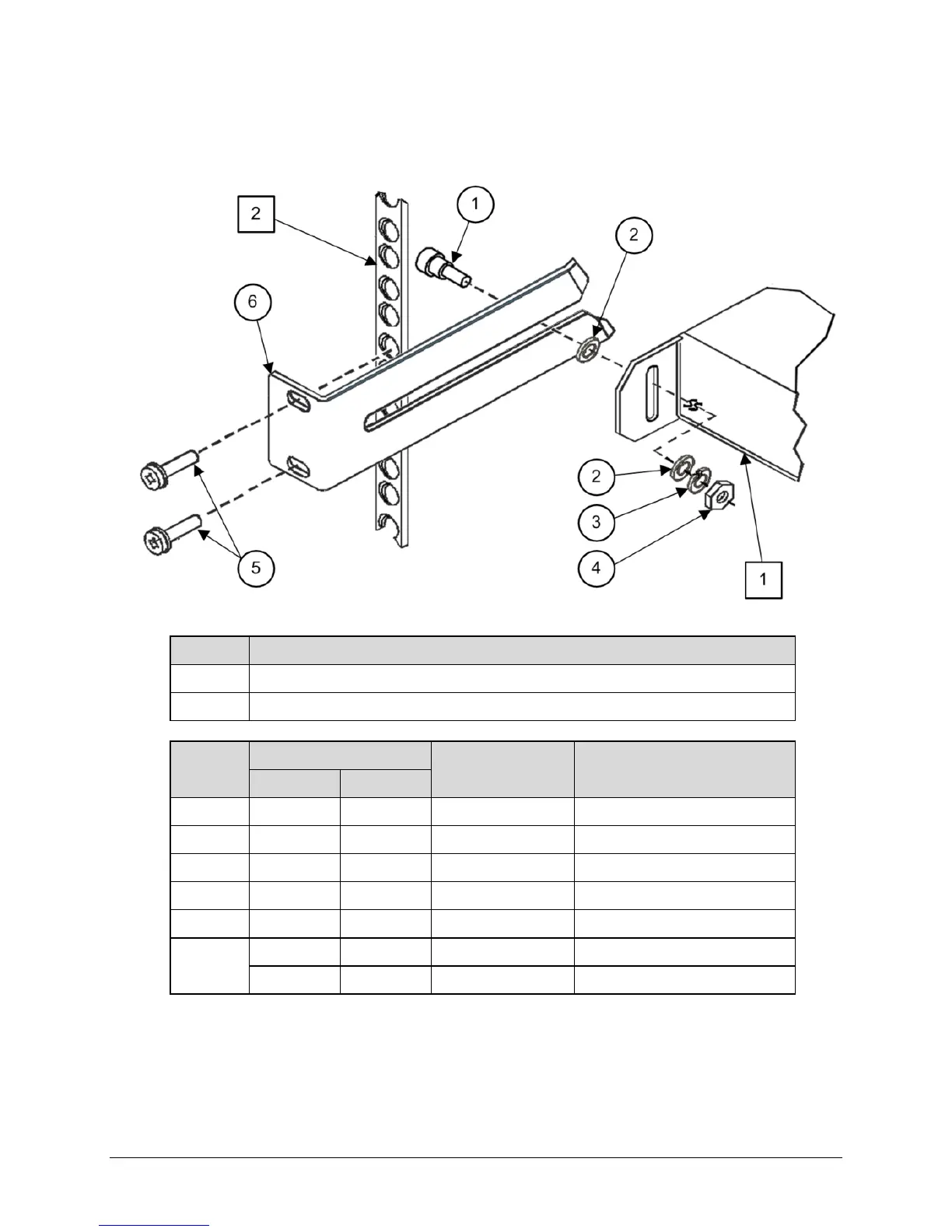

Figure 2-3. Optional Rear-Mounting Support Brackets Kit Installation
