Comtech EF Data CDM-570 - To EIA-422;449 Data Cable

To Next Page

To Previous Page

CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Appendix A MN/CDM570L.IOM

A–2

A.1.1 EIA-530 to EIA-422/449 Data Cable

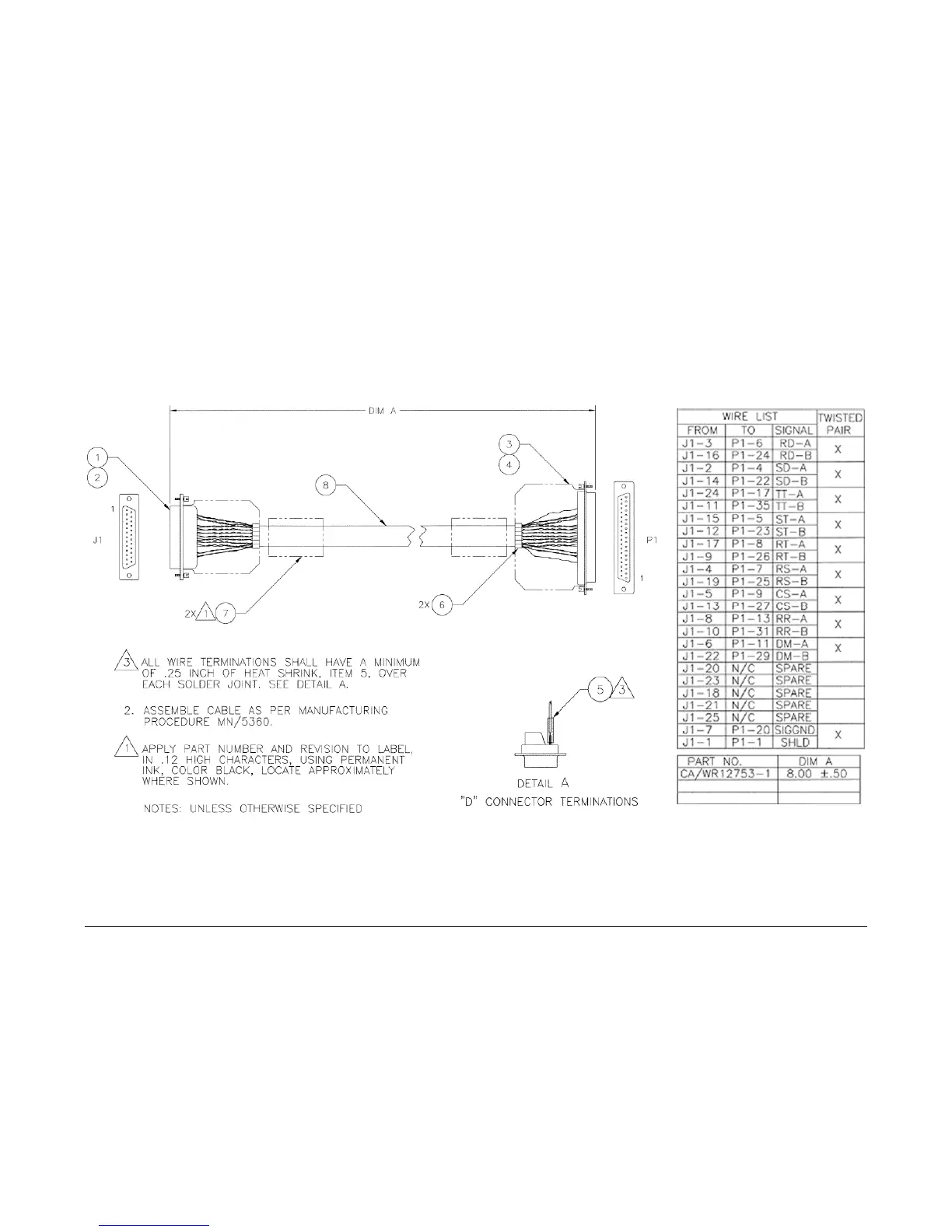

Figure A-1. CDM-570/570L EIA-530 to EIA-422/449 DCE Conversion Cable (CEFD Dwg. No. CA/WR12753)
