14.2.4.3 DiffServ Rules Configuration Page
Activate the DiffServ Rules Configuration page from the QoS Configuration page.

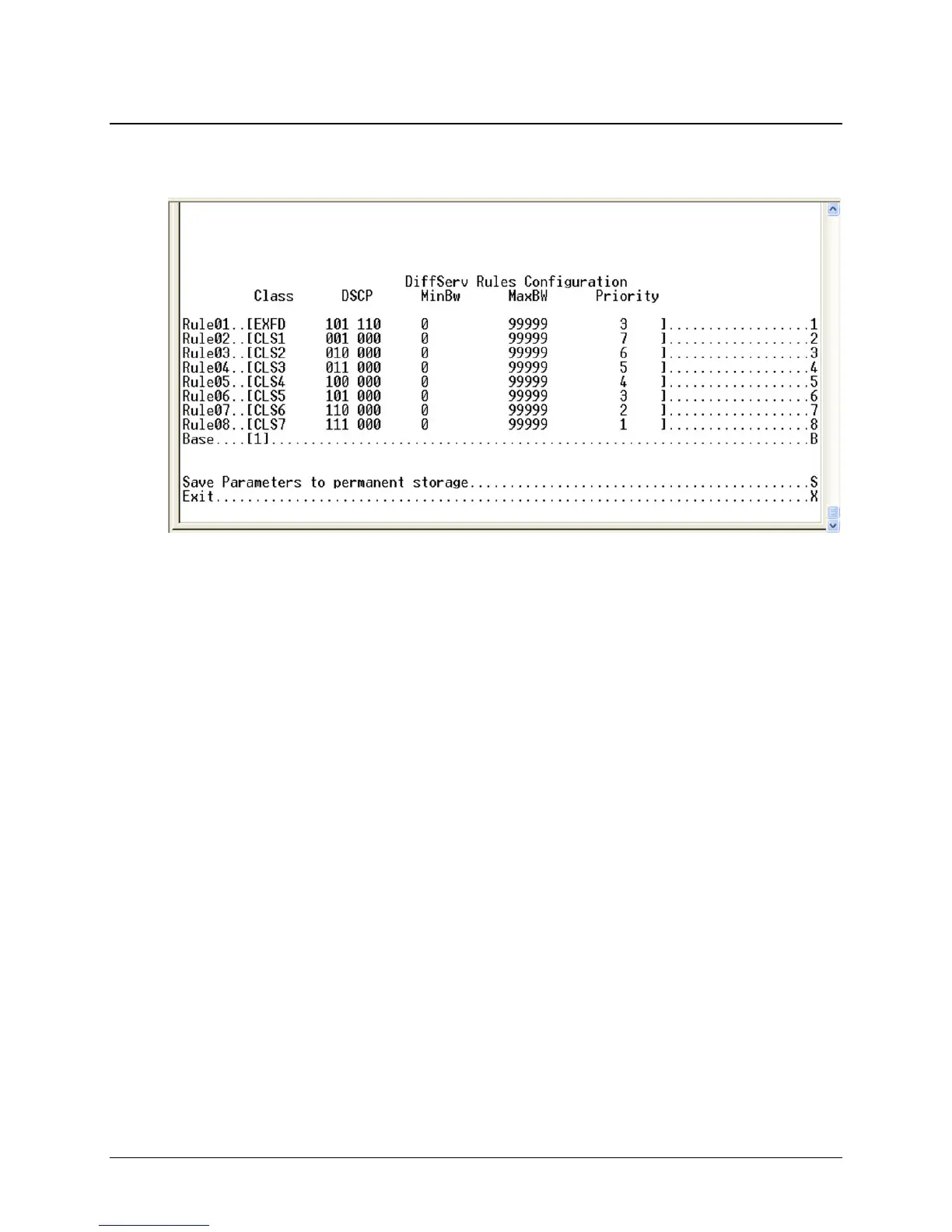

Figure 14-17. DiffServ Rules Configuration page
In DiffServ Mode, the IP Module prioritizes all traffic by the DSCP value contained within the
IP header of each packet. All packets that do not have a DSCP value are placed in the Default
Queue and have a Priority of 9.
Configuration of DiffServ Rules is allowed only for Assured Forwarding Classes 1-4 (Rule 9-12),
where a Minimum and Maximum Bandwidth can be assigned.
See 14.2.4 Quality of Service section for a m
ore detailed description of this QoS option.
