CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Appendix K MN/CDM570L.IOM

K–28

K.4.1.2.2.2 ODU | Status (KST-2000A/B)

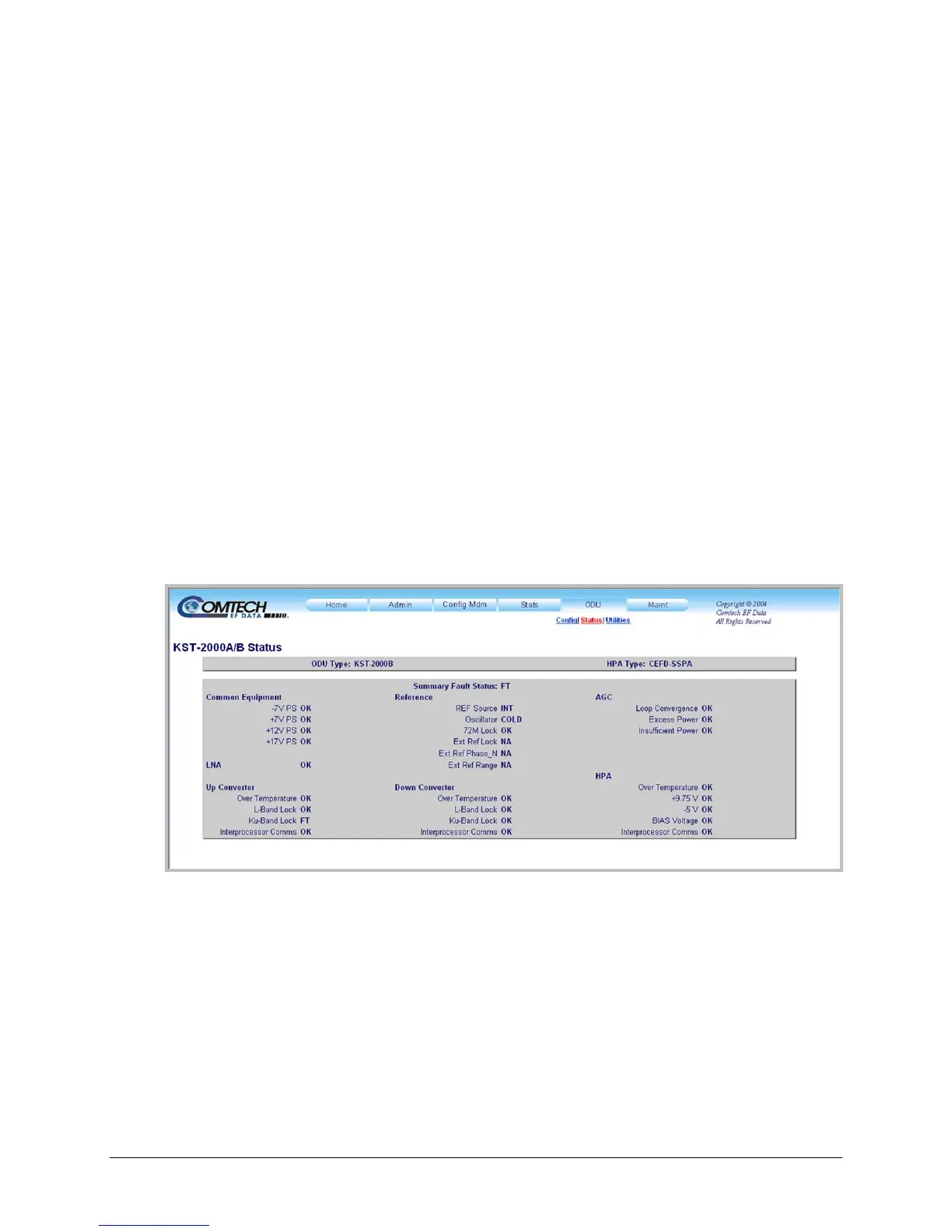

Figure K-8 shows the ‘ODU | Status’ page as it appears with the KST-2000A/B configured as the

ODU. The message bar at top identifies the ODU Type and HPA Type (in this example,

KST-2000B and CEFD-SSPA, respectively).

Use this page to review read-only status information that summarizes the fault status of the

KST-2000A/B configuration:

• Common Equipment

• Reference

• AGC

• LNA

• HPA

• Up Converter

• Down Converter

Figure K-8. ODU | Status page (KST-2000A/B)
