CDM-570/570L Satellite Modem with Optional IP Module Revision 12
Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM
14–49
14.2.10 1:1 Redundancy Configuration Page
Activate the 1:1 Redundancy Configuration page from the Main Menu page. Refer to Appendix
H. IP REDUNDANCY for detailed information on the use of the CDM-570/570L Satellite
Modem in redundant operations.

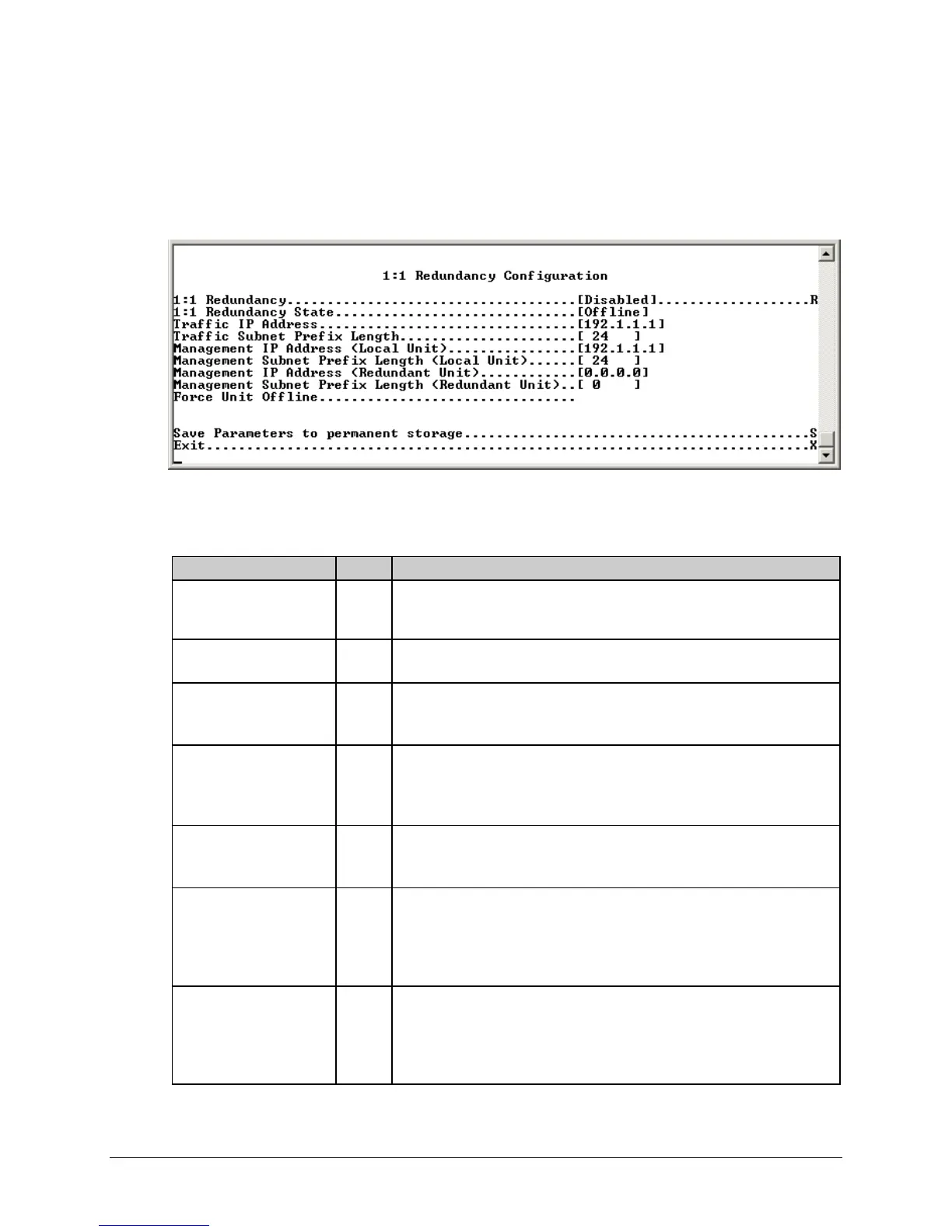

Figure 14-34. 1:1 Redundancy Configuration page
The 1:1 Redundancy Configuration page contains the following options/fields:
Selection Entry Description
1:1 Redundancy R Toggle Redundancy state.
NOTE: Only enable Redundancy when connected to a CRS redundancy
switch with another CDM-570/570L.
1:1 Redundancy State [RO]
•
If standalone CDM-570/570L – displays state as Online.
• If Redundant CDM-570/570L – displays state as Online or Offline
Traffic IP Address
•
If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – sets Traffic IP (read/write).
•
If Offline Redundant CDM-570/570L – displays Traffic IP (read-only).
Traffic Subnet Prefix
Length
•
If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – sets Traffic Subnet (read/write).
• If Offline Redundant CDM-570/570L – displays Traffic Subnet (read-
only).
Management IP Address
(Local Unit)
[RO]
•
If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Local Management IP
• If Offline Redundant CDM-570/570L – displays Local Management IP
Management Subnet
Prefix Length (Local Unit)
[RO]
•
If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Local Management
Subnet
• If Offline Redundant CDM-570/570L – displays Local Management
Subnet
Management IP Address
(Redundant Unit)
[RO]
•
If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Redundant Management
IP Address
• If Offline Redundant CDM-570/570L – displays Redundant Management
IP Address
