14.2.9.5 Reference Configuration Page
Activate the Reference Configuration page from the Configuration page.

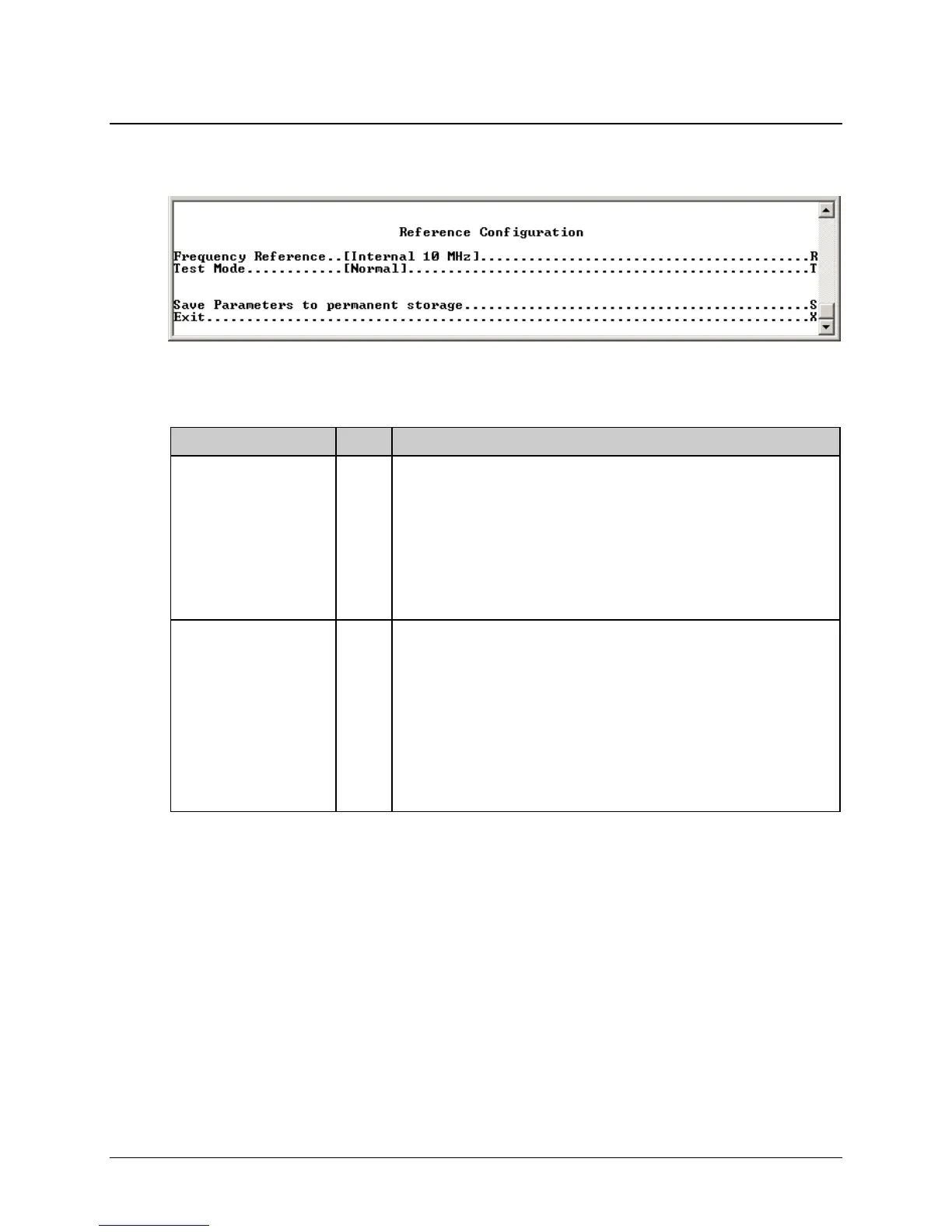

Figure 14-30. Reference Configuration Page
The Reference Configuration page contains the following options/fields:
Selection Entry Description
Frequency Reference R 1 – Internal 10 MHz
2 – External 1 MHz
3 – External 2 MHz
4 – External 5 MHz
5 – External 10 MHz
6 – External 20 MHz
Test Mode T 1 – Normal
2 – IF_loopback
3 – Digital_loopback
4 – I/O_Loopback
5 – RF Loopback
6 – Tx_CW
7 – TX_alt_101010
