14.2.11.2.1 IP Routing Statistics Page
Activate the Statistics for IP Routing/EasyConnect page from the Statistics Menu page. This page
displays counts of the number of packets routed in the IP Module.

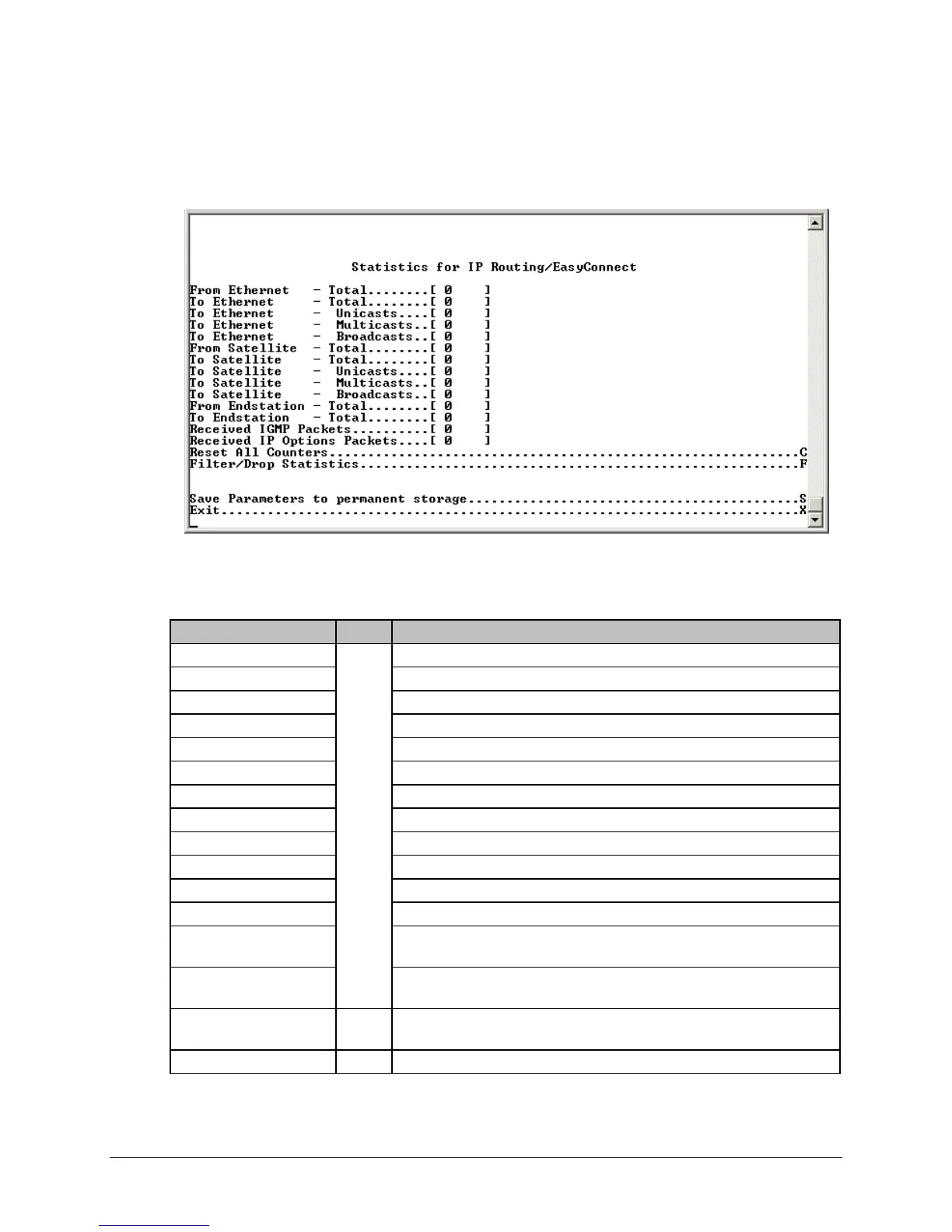

Figure 14-38. IP Statistics page
The Statistics for IP Routing/EasyConnect page contains the following options/fields:
Selection Entry Description
From Ethernet – Total
[RO]
Ethernet Statistics Page, Rx Good Frames
To Ethernet – Total Ethernet Statistics Page, Tx Good Frames
To Ethernet – Unicasts Unicast packets to LAN
To Ethernet – Multicasts Multicast packets to LAN
To Ethernet – Broadcasts Broadcast packets to LAN
From Satellite – Total WAN Statistics Page, Rx HDLC Packet Count
To Sat – Total WAN Statistics Page, Tx HDLC Packet Count
To Sat – Unicasts Unicast packets to WAN
To Sat – Multicasts Multicast packets to WAN
To Sat – Broadcasts Broadcast packets to WAN
From Endstation – Total Packets sent from IP Module
To Endstation – Total Packets directed to IP Module
Received IGMP Packets Internet Group Management Packets received (used for management of
multicast traffic).
Received IP Options
Packets
Number of IP Options packets received.
Reset All Counters C Executing this menu option resets all gathered WAN, Ethernet and IP
Routing statistics to zero.
Filter/Drop Statistics F Displays the Filter Statistics page.
