CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module - CLI and Telnet Operation MN/CDM570L.IOM

14–48

14.2.9.8 Low Noise Block Converter (LNB) Configuration

Activate the Low Noise Block Converter (LNB) Configuration page from the Configuration page.

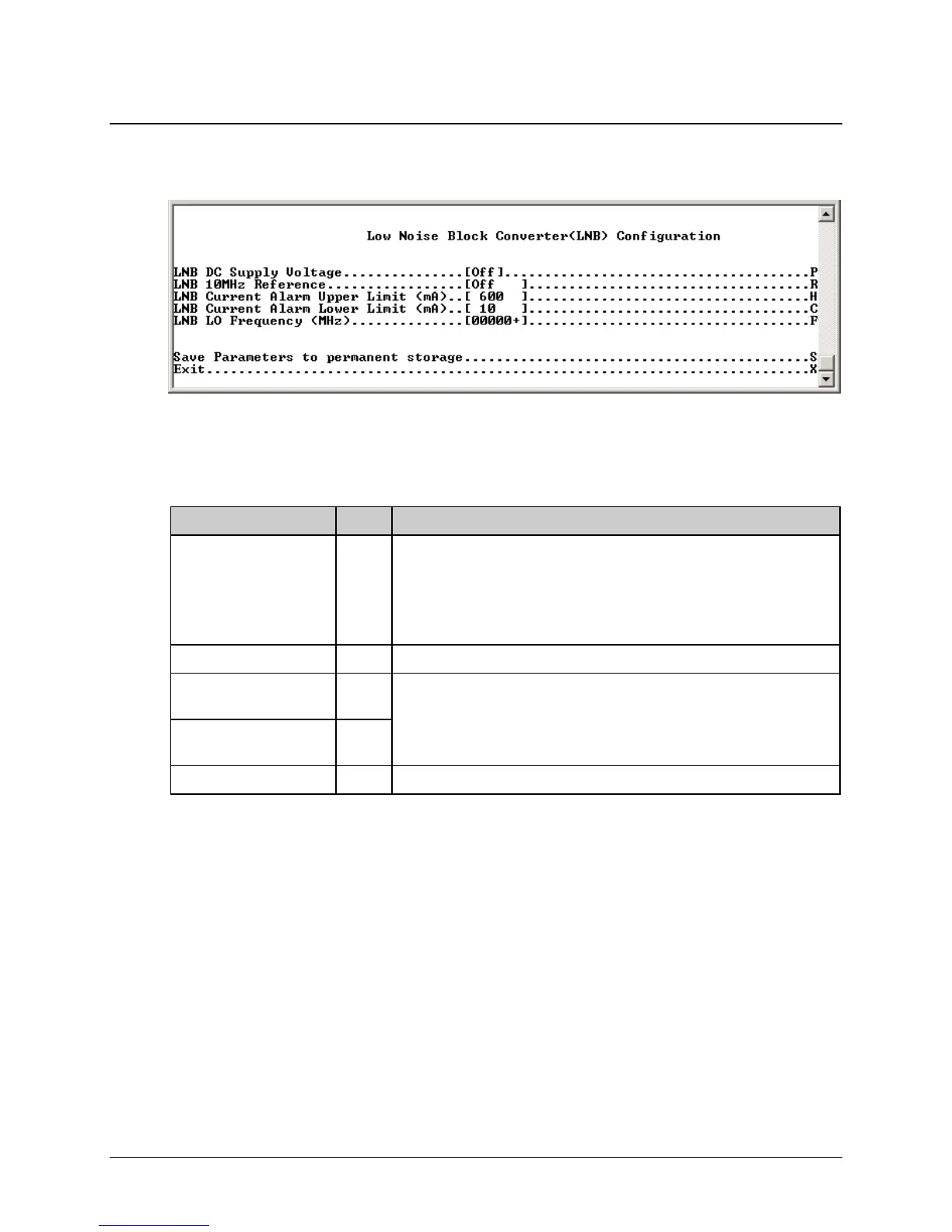

Figure 14-33. Low Noise Block Converter (LNB) Configuration Page

The Low Noise Block Converter (LNB) Configuration page contains the following options/fields:

Selection Entry Description

LNB DC Supply Voltage P 1 – Off

2 – 13 Volts

3 – 18 Volts

4 – 24 Volts

LNB 10MHz Reference R Select as On or Off

LNB Current Alarm Upper

Limit (mA)

Enter a value in mA

LNB Current Alarm Lower

Limit (mA)

LNB LO Frequency (MHz) F Enter a value from 3000 to 65000, 0 to disable
