CDM-570/570L Satellite Modem with Optional IP Module Revision 12

Ethernet IP Module Interface MN/CDM570L.IOM

13–58

13.6.2.5.3 Stats | QoS

Use this read-only page to view current operating statistics for the optional QoS feature, if

installed. Click [Reset Statistics] to refresh the display with the most recent QoS Statistics.

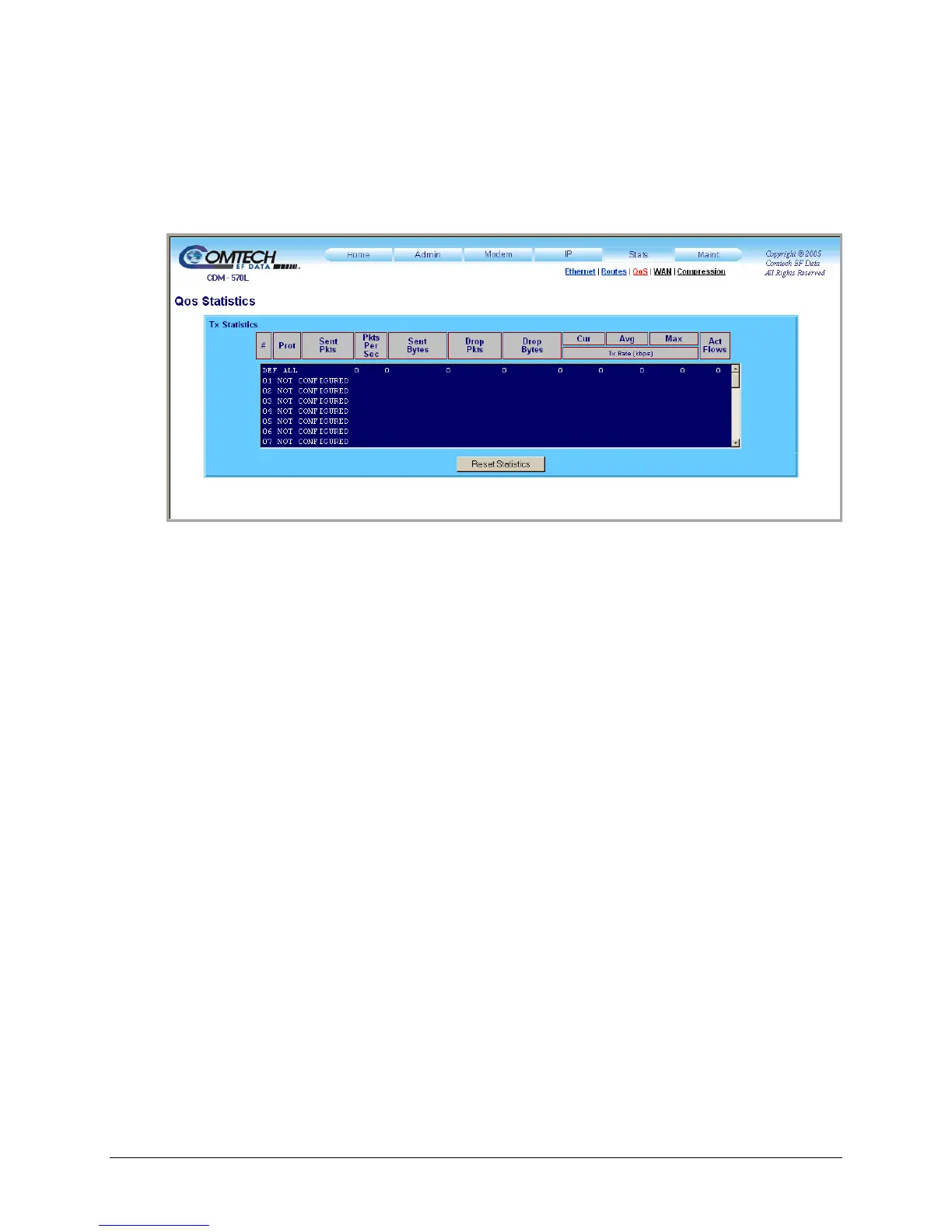

Figure 13-31. Stats | QoS page
